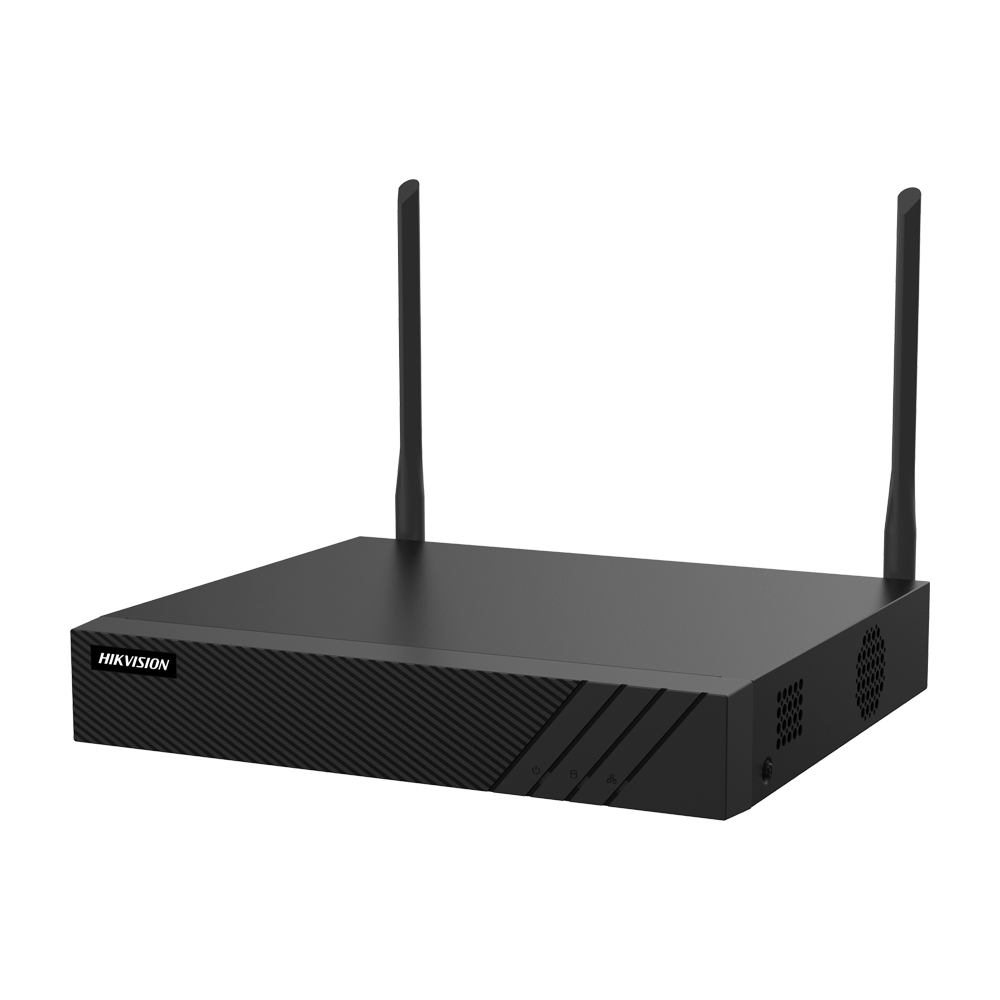

DS-7604NI-Q1/W
Ga direct naar de productinformatie
DS-7604NI-Q1/W
- Hikvision 4 CH IP NVR recorder, VALUE series
- Maximum resolution 8Mpx
- Bandwidth 40 Mbps
- Audio | WiFi 2.4 GHz
- Supports 1 hard disk
- Motion detection 2.0 1 channel
- Hikvision
- VALUE range
- NVR for IP cameras
- 4 CH
- Supported incoming bandwidth 40 Mbps
- Maximum resolution 8 Mpx
- Compression H.265+/H.265/H.264+/H.264
- Outputs 4K HDMI & VGA
- Motion detection 2.0 on 1 channel
- Audio
- IP Dual Stream Access
- Mouse
- Space for 1 HDD
- WiFi connection 2.4 GHz
- WEB, CMS and Smartphone interface
- ONVIF Compatible
Specifications
| Brand | Hikvision |
| Range | VALUE |
| Inputs for IP cameras | LAN port up to 4 channels |
| Power over Ethernet | Does not have |
| IP compatible cameras | HIKVISION (native protocol), ONVIF |
| Video outputs | 1xHDMI 4K, 1xVGA simultaneous |
| Video compression format | H.265+ / H.265 / H.264+ / H.264 |
| Display resolution | HDMI: 4K (3840x2160), 2K (2560x1440), 1080p (1920x1080), UXGA (1600x1200), SXGA (1280x1024), 720p (1280x720) VGA: 1920x1080, 1600x1200, 1280x1024, 1280x720 |
| Total bandwidth | 40 Mbps downstream / 80 Mbps upstream |
| Stream Type | Video / Video + Audio |
| Main Stream recording | 8MP /6MP /5MP /4MP /3MP /1080P /UXGA /720P /VGA /4CIF /DCIF /2CIF /CIF /QCIF |
| Decoding capacity | 8CH@1080p |
| Simultaneous multifunction | Pentaplex: Live, Recording, Playback, Backup and Remote Access |
| Motion Detection | Motion detection 2.0 with human and vehicle classification applied in motion detection. Available up to 1 channel. |
| Audio | 1 RCA input / 1 RCA output |
| Bidirectional audio | Using the audio input |
| Audio Compression | G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2 |
| Alarms | Does not have |
| Recording method | Manual, programmed, motion detection |
| External Backup | USB memory / HDD USB / CD-RW USB / DVR-RW USB |
| Remote access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200 and Hik-Central |
| Remote connections | 32 |
| Internal memory | 1 SATA HDD 3.5" of up to 8 TB (not included) |
| Communication | 2 x USB 2.0 / 1 x RJ45 10/100M (Ethernet) |
| Wireless communication | Wifi 2.4 GHz |
| WiFi Antenna | 2 x 2MIMO |
| WiFi transmission speed | 573 Mbps |
| Power | DC 12 V / 1.5 A, ≤ 18 W (without HDD) |
| Operating temperature | -10ºC ~ 55ºC (10%-90% Humidity) |
| Dimensions | 48 (H) x 263 (W) x 242 (D) mm |
| Weight | ≤ 1 Kg (without HDD) |
In the box
- Hikvision NVR recorder
- Mouse
- Ethernet Cable
- Instructions Manual
- Hard disk connection wiring
- Power supply
