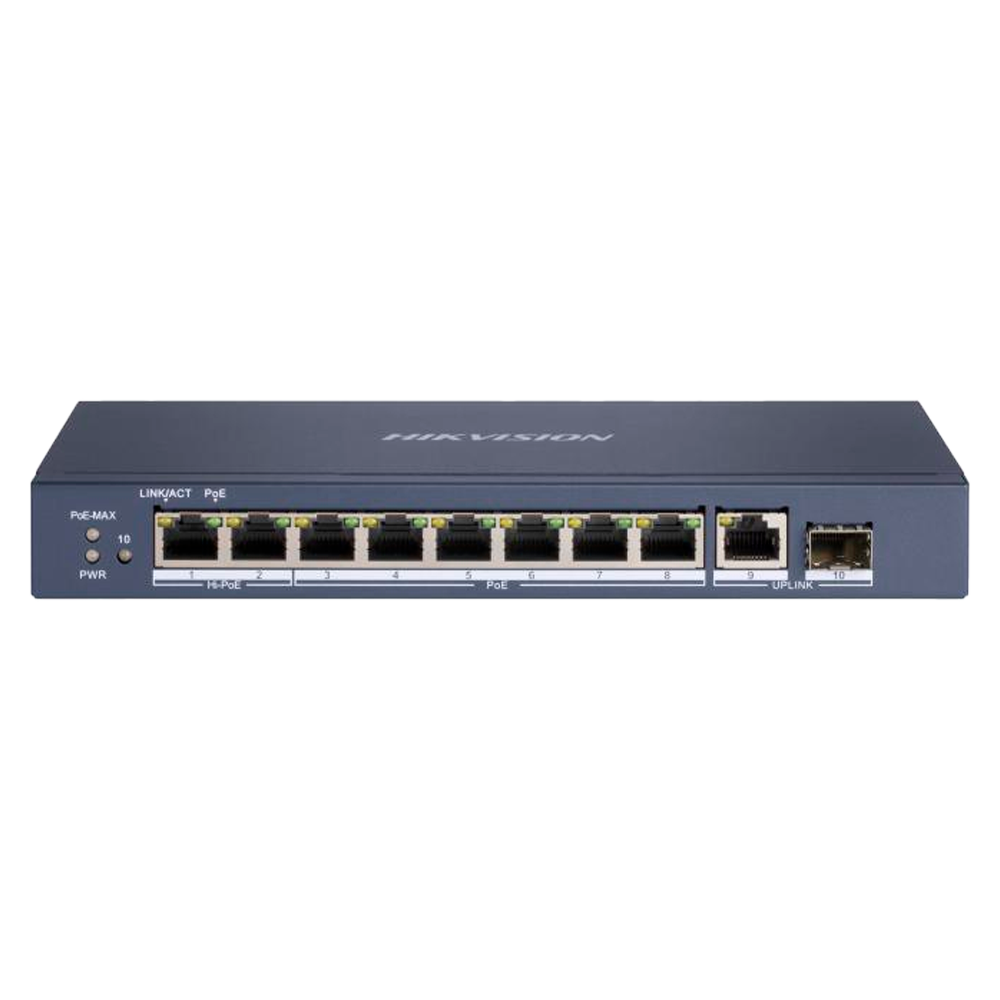

DS-3E0510HP-E
Ga direct naar de productinformatie
DS-3E0510HP-E
- Hikvision Hi-PoE Switch
- 8 PoE ports + 1 Uplink RJ45 + 1 SFP Uplink
- Gigabit port speed 10/100/1000Mbps
- 6 PoE+ ports 30W + 2 Hi-PoE port 90W
- PoE Watchdog
- Up to 110W Total PoE Power
- Hikvision
- Unmanaged Switch
- 8 RJ45 10/100/1000 Mbps PoE ports + 1 Gigabit RJ45 ports + 1 Gigabit SFP
- 6 PoE+ ports up to 30W
- 2 Hi-PoE ports up to 90W
- Uplink 10/100/1000Mbps RJ45 and SFP ports
- Supports PoE power supply up up 110W in total for all ports
- PoE Extended up to 300m
- Port Isolation
- PoE Watchdog
Specifications
| Interface | 8 PoE ports + 1 Uplink RJ45 + 1 SFP Uplink |
| Port speed RJ45 | 8x 10/100/1000Mbps + 1x 10/100/1000Mbps + 1x 10/100/1000Mbps |
| PoE features | Up to 110W in total for all ports Ports 3~8 PoE+ Up to 30W 802.3af/at Ports 1~2 Hi-PoE Up to 90W 802.3af/at/bt |
| Transmission distance | Ports 7~8 300 meters |
| Reshipment Rate | 14.88 Mpps |
| Bandwidth | 20Gbps |
| MAC Table | 4K |
| AI PoE | PoE Watchdog Ports 1~4 - Automatic restart of the power supply to a PoE port when a possible failure is detected. |
| Power | Rear socket 90~240V (54 V DC, 2.22 A) |
| Power consumption | Without PoE 10W / With PoE 120W |
| Protections | 6KV against Rays |
| Operating temperature | 0° C - 40° C |
| Dimensions | 187 (D) x 43 (H) x 139 (W) mm |
| Weight | 0,59 Kg |
In the box
- HiPoE Switch
- AC cable
- User instructions
