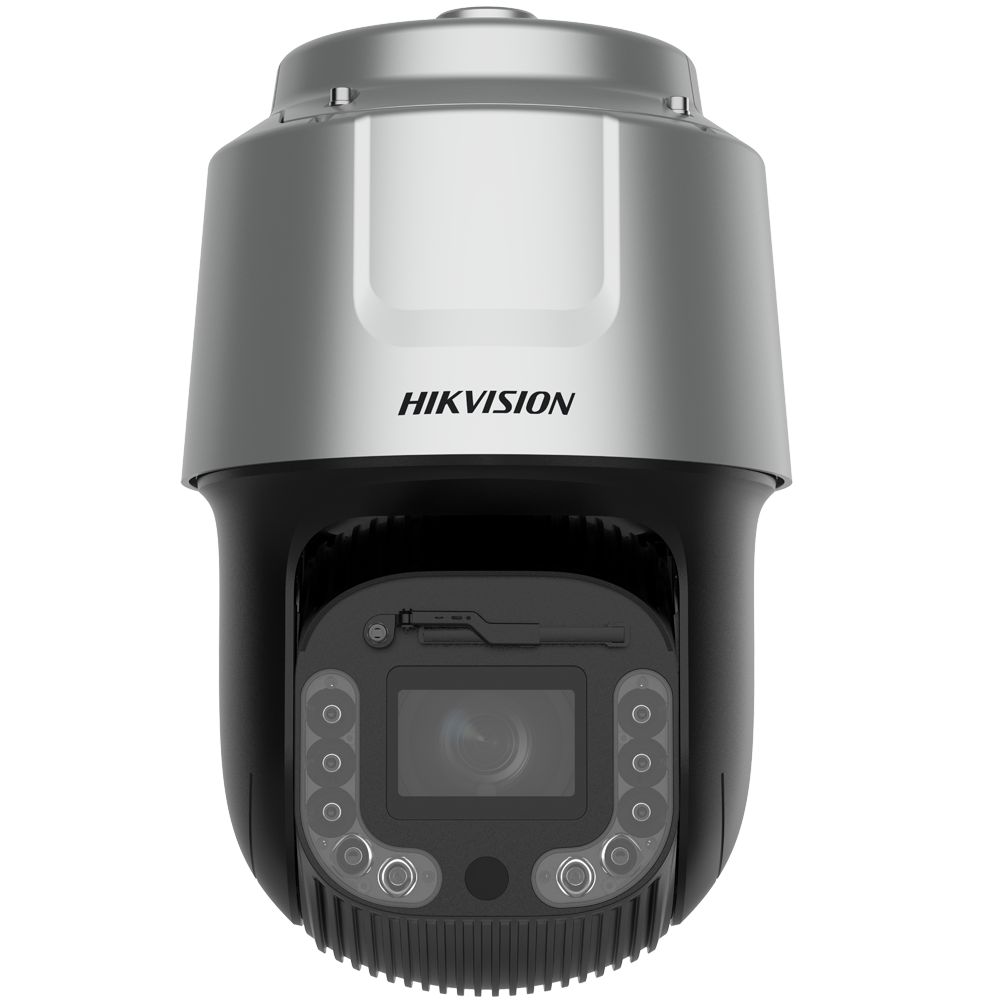

DS-2DF8C260I5XG1-ELW
Ga direct naar de productinformatie
DS-2DF8C260I5XG1-ELW
- Hikvision IP motorized camera PRO range
- Resolución 2 MPx (1920x1080)
- Lens 6~360 mm 60X | Hi-PoE | 100 fps
- Alarms | Audio | IP67, IK10 | IR laser 500 m
- Wiper | Smart Tracking | WDR 150 dB
- AcuSense | Face and Vehicle Detection
- Hikvision
- PRO Range
- PTZ IP Camera
- 1/1.2" Progressive Scan CMOS
- 2 Megapixel (1920x1080)
- 6~360 mm Varifocal Motorised Lens
- 60x Optical zoom
- Maximum speed 280º/segundo
- Laser range 500 m
- Low Light Powered by DarkFighter 2.0
- Compression H.265+/H.265/H.264+/H.264
- RJ-45 10/100 BaseT
- AcuSense, false alarm filter for vehicles and people
- Face Capture, up to 30 faces at a time
- Face comparison
- Vehicle detection (license plate, model and color)
- Autotracking
- WDR (150 dB)
- 3D-DNR
- Alarms
- Audio
- Slot for microSD card up to 1 TB
- Hi-PoE IEEE802.3bt
- WEB, CMS, Smartphone and NVR interface
- ONVIF Compatible
- Lens cleaner
- Heater
- Weatherproof IP67
- Vandal proof IK10
- Surge protection 6000 V
Specifications
| Brand | HIKVISION |
| Range | PRO |
| Image sensor | 1/1.2“ Progressive Scan CMOS |
| Maximum resolution | 2 Megapixel (1920x1080) |
| Lens | Motorized varifocal 6~360 mm (Optical Zoom 60X)) |
| Viewing Angle (FOV) | Horizontal: 1.3~61º (H), Vertical: 0.8~35.9º (V), Diagonal: 1.5~68.5º (D) |
| Range performance | 4965.5 (D), 1970.4 (O), 993.1 (R), 496.6 (I) |
| Focus | Auto, semi-auto, manual |
| Main stream rate | 100 fps (1920x1080, 1280x960, 1280x720) *High frame rate is only possible in the monitoring mode. |
| Extra stream rate | 25 fps (704x576, 640x480, 352x288) |
| Third stream rate | 25 fps (1920x1080, 1280x960, 1280x720, 704x576, 640x480, 352x288) |
| Bitrate | 32 Kbps ~ 16 Mbps |
| Video output | 1 BNC output (PAL / NTSC) |
| Minimum illumination | Colour: 0.0005 Lux @ (F1.5, AGC ON) B/W: 0.0001 Lux @ (F1.5, AGC ON) Ultra Low Light (Powered by DarkFighter 2.0) 0 lux with IR laser, range 500 m |
| Day/Night | Removable mechanical ICR filter |
| Compression | H.265+/ H.265 / H.264+/ H.264 |
| Digital zoom | 16X |
| Electronic shutter | 1/1s~1/30.000 s |
| Image improvements | WDR (150 dB), BLC, HLC, 3D-DNR, AGC, AWB, Mirroring Effect, Privacy Masking, ROI |
| ANR | Yes |
| Motion Detection | Yes |
| Smart Features | AcuSense DeepLearning based technology for human and vehicle classification with false alarm reduction applied on: Line Crossing, Area Intrusion, Inbound Region, Outbound Region, Outbound Region. |
| Face detection | Detects up to 30 faces simultaneously. Supports detection, tracking, capture, classification, and selection of moving faces, and generates the best facial image. |
| Face comparison | Up to 10 face libraries. 30000 faces for each library. 150000 faces in total. Recognizes the identity of faces by modeling, sorting, and comparing with those in the face library. Supports encryption of face libraries. |
| Feature detection | Supports simultaneous human body, face and vehicle detection and capture. Gets 7 facial features, 14 human body features and 8 vehicle features |
| Vehicle detection | Supports license plate recognition of vehicles and motorcycles (in the control scenario only). Detection of vehicle attributes, such as type, color, make, direction of travel, etc. Supports counting of vehicles and non-vehicles. Block list and allowed list: to 10.000 records. Countries/Regions LPR: 4 areas (Europe, Middle East, Asia-Pacific, Africa) and over 124 countries/regions. Accuracy (under recommended installation and lighting conditions): Plate recognition rate ≥98%. Capture index ≥99 Driving direction accuracy index ≥98%. Vehicle capture speed: Front installation on control stage: to 120 km/h Lateral installation: to 80 km/h Capture mode: License plate and vehicle mode, vehicle priority mode. |
| Smart Tracking | Manual tracking, auto tracking |
| Pan/Tilt Range | Horizontal: 360°, Vertical: -20°~90° (auto-flip) |
| Manual speed | Horizontal: 0.1~210°/s, Vertical: 0.1~150 °/s |
| Speed between Presets | Horizontal: 280 °/s, Vertical: 250 °/s |
| Preset positions | 300 preset, 4 auto pattern, 8 auto tour, auto pan, auto scan |
| Internal memory | Slot for MicroSD card up to 1 TB |
| Alarms | 7 inputs / 2 outputs |
| Audio | 1 input (Line In) / 1 output (Line Out) |
| Audio Compression | G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM |
| Audio bit rate | 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2) |
| PTZ Control | Through network access RS-485 half duplex |
| Network interface | Ethernet 10 / 100 BaseT |
| Remote access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200 and Hik-Central |
| Interoperability | ONVIF (Profile S, G, T, M), ISAPI, ISUP |
| Power | AC 36 V / 60 W max. Hi-PoE IEEE802.3bt |
| Temp. operation | -40º C ~ +70º C |
| Heater | Yes |
| Lens cleaner (Wiper) | Yes, with rain sensor |
| Degree of protection | Weatherproof IP67 Vandal proof IK10 Surge protection 6000 V |
| Dimensions (without bracket) | Ø 267 mm x 430 mm (H) |
| Weight (without bracket) | 9.6 kg |
In the box
- Hikvision Motorised IP Dome Camera
- Allen wrench
- Torx wrench
- Seal to RJ45
- CD with software and instructions
- Power supply
