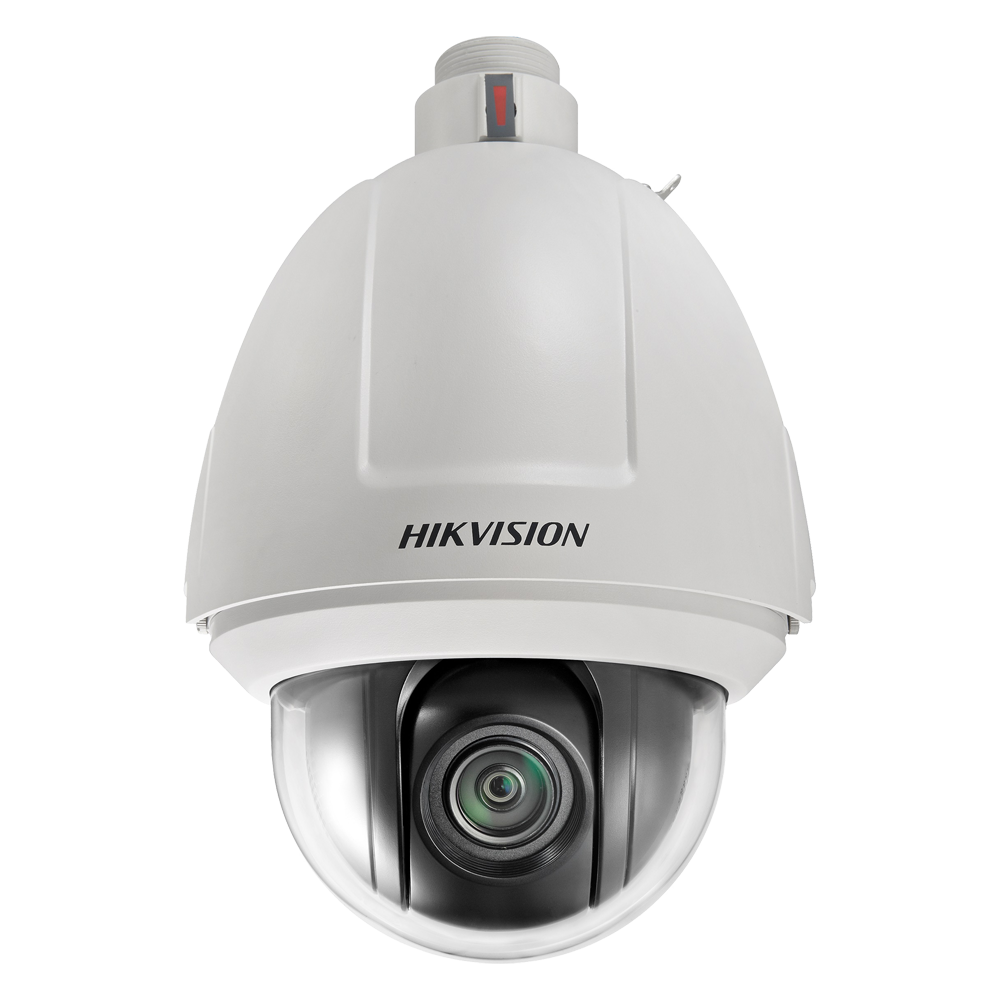

DS-2DF5232X-AEL(T5)
Ga direct naar de productinformatie
DS-2DF5232X-AEL(T5)
- Hikvision IP motorized dome range SOLUTIONS
- Resolution 2 MP (1920x1080)
- Lens 4.8~153 mm | Optical zoom 32X
- Alarms , Audio , Hi-PoE , Face Capture
- Maximum speed 540º/s | Vehicle Detection
- IP66 | IK10
- Hikvision
- SOLUTIONS range
- PTZ IP Camera
- Ultra Low Light Powered by DarkFighter
- Maximum speed 540º/s
- 32X Optical zoom
- 1/2.8" Progressive Scan CMOS
- Resolution 2 MP (1920x1080)
- 4.8~153 mm Varifocal Motorised Lens
- Compression H.265+/H.265/H.264+/H.264
- RJ-45 10/100 BaseT
- Face Capture
- Roadside vehicle detection
- IR Cut
- WDR (120 dB)
- Slot for MicroSD card up to 256 GB
- Alarms
- Audio
- Hi-PoE (IEEE802.3bt)
- WEB, CMS, Smartphone and NVR interface
- ONVIF Compatible
- Weatherproof IP66
- Vandal proof IK10
- Surge protection 6000 V
Specifications
| Brand | HIKVISION |
| Range | SOLUTIONS |
| Image sensor | 1/2.8“ Progressive Scan CMOS |
| Maximum resolution | 2 Mpx (1920x1080) |
| Main stream rate | 25 fps (1920x1080, 1280x960, 1280x720) |
| Extra stream rate | 25 fps (704x576, 640x480, 352x288) |
| Third stream rate | 25 fps (1920x1080, 1280x960, 1280x720, 704x576, 640x480, 352x288) |
| Minimum illumination | Ultra Low Light (Powered by DarkFighter) Colour: 0.002 Lux @ (F1.2, AGC ON) Black and white: 0.0002 Lux @ (F1.2, AGC ON) |
| Compression | H.265+/ H.265 / H.264+/ H.264 |
| Lens | Motorized varifocal 4.8~153 mm (Optical Zoom 32X)) |
| Viewing Angle (FOV) | 58.4~2.14º (H), 33.8~1.2º (V), 65.6~2.46º (D) |
| Digital zoom | 16X |
| Electronic shutter | 1/1s~1/30.000 s |
| Day / Night | Removable mechanical ICR filter |
| Image improvements | WDR (120 dB), BLC, HLC, 3D-DNR, AGC, AWB, Privacy Masking, ROI |
| Image Stabilization (EIS) | Yes |
| Motion Detection | Yes |
| Face Capture | Detects up to 30 faces simultaneously. Supports detection, capture, classification, and selection of moving faces, and generates the best facial image. |
| Roadside vehicle detection | Yes |
| Pan/Tilt Range | Horizontal: 360°, Vertical: -5°~90° auto flip |
| Manual speed | Horizontal: 0.1~300 °/s, Vertical: 0.1~240 °/s |
| Speed between Presets | Horizontal: 540 °/s, Vertical: 400 °/s |
| Preset positions | 300 preset, 4 auto pattern, 8 auto tour, auto pan, auto scan |
| Internal memory | MicroSD card slot up to 256 GB |
| Audio | 1 input (Line In) / 1 output (Line Out) |
| Audio Compression | G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM |
| Alarms | 7 inputs / 2 outputs |
| PTZ Control | Through network access 1 x RS-485 |
| Network interface | Ethernet 10 / 100 BaseT |
| Remote access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200 and Hik-Central |
| Interoperability | ONVIF (Profile S, G, T), ISAPI, SDK |
| Power | AC 24 V / 3 at / 60 W max. Hi-PoE (IEEE802.3bt) |
| Temp. operation | -10º C ~ +50º C |
| Degree of protection | Weatherproof IP66 Vandal proof IK10 Surge protection 6000 V |
| Material | Metallic |
| Dimensions | Ø 220 mm x 302 mm (H) |
| Weight | 4 kg |
In the box
- Hikvision Motorised IP Dome Camera
- Allen wrench
- Torx wrench
- Seal to RJ45
- CD with software and instructions
- 24V Power supply
