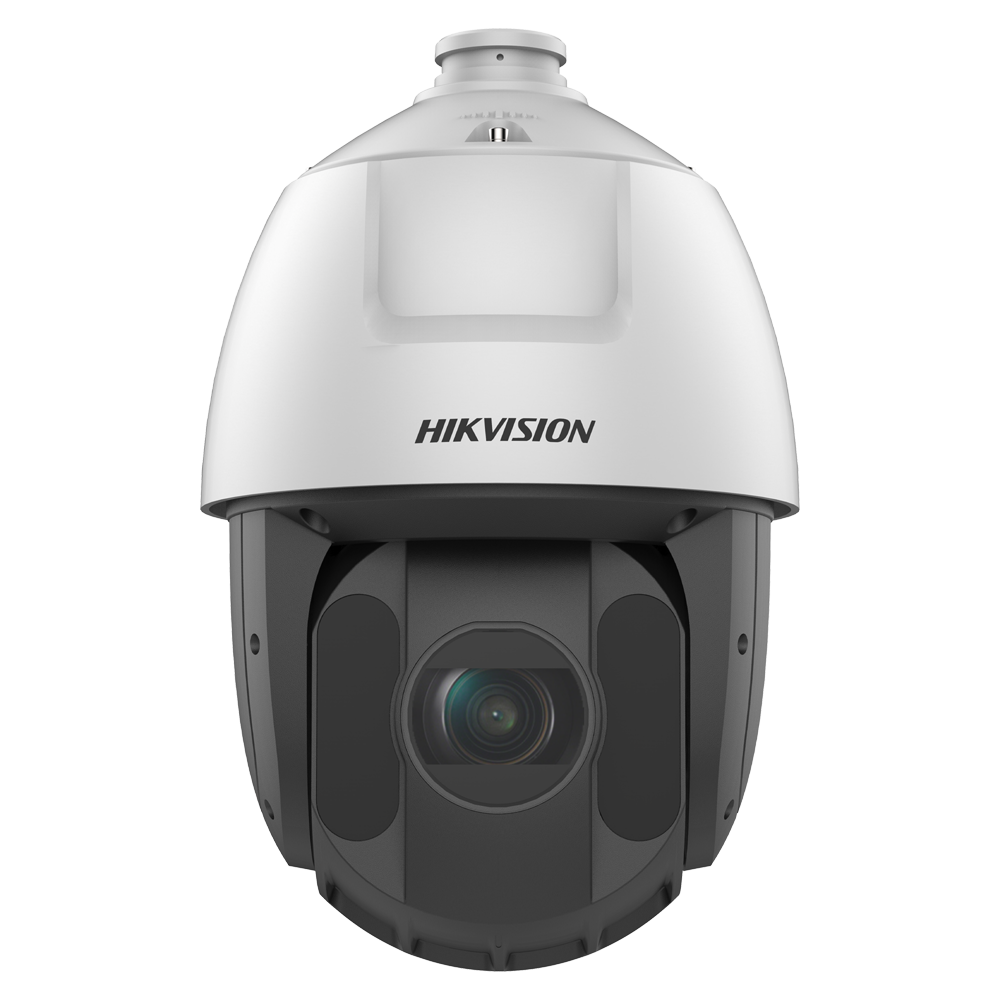

DS-2DE5425IWG1-E
Ga direct naar de productinformatie
DS-2DE5425IWG1-E
- Hikvision speed dome IP 25X gama PRO
- Resolution 4 MP (2560x1440)
- 4.8~120mm motorised lens
- IR range 150 m | Speed 120 º/s
- Audio | Alarm | MicroSD
- IP67 | PoE+ | Face Capture | AcuSense
- Hikvision
- PRO Range
- PTZ IP Camera
- Average speed 80º/segundo
- 1/2.8" Progressive Scan CMOS
- 4 Megapixel (2560x1440)
- 4.8~120 mm Varifocal Motorised Lens
- 25X Optical zoom
- IR Range 150 m
- Ultra Low Light Powered by DarkFighter with AI-ISP technology
- Compression H.265+/H.265/H.264+/H.264
- AcuSense, false alarm filter for vehicles and persons (in line crossing and area intrusion)
- Face Capture
- IR Cut
- WDR (120 dB)
- 3D-DNR
- Slot for MicroSD card up to 512 GB
- Audio
- Alarms
- RJ-45 10/100 BaseT
- WEB, CMS, Smartphone and NVR interface
- ONVIF Compatible
- PoE+ IEEE802.3at
- Weatherproof IP67
- Surge protection 6000 V
- Wall bracket DS-1602ZJ included
Specifications
| Brand | HIKVISION |
| Range | PRO |
| Image sensor | 1/2.8“ Progressive Scan CMOS |
| Maximum resolution | 4 Megapixel (2560x1440) |
| Main stream rate | 25 fps (2560x1440, 1920x1080, 1280x960, 1280x720) |
| Extra stream rate | 25 fps (704x576, 640x480, 352x288) |
| Third stream rate | 25 fps (1920x1080, 1280x960, 1280x720, 704x576, 640x480, 352x288) |
| Compression | H.265+/ H.265 / H.264+/ H.264 |
| Minimum illumination | Ultra Low Light (Powered by DarkFighter) Colour: 0.005 Lux @ (F1.6, AGC ON) Black and white: 0.001 Lux @ (F1.6, AGC ON) 0 lux with IR LEDs range 150 m |
| Lens | Motorized varifocal 4.8~120 mm (Optical Zoom 25X)) |
| Viewing Angle (FOV) | 2.4~55º (H), 1.4~33º (V), 2.8~61.5º (D) |
| Range performance | 96.1~2402.4 m (D), 38.1~953.3 m (O), 19.2~480.5 m (R), 9.6~240.2 m (I) |
| Digital zoom | 16X |
| Electronic shutter | 1/1s~1/30.000 s |
| Day / Night | Removable mechanical ICR filter |
| Image improvements | WDR (120 dB), BLC, HLC, 3D-DNR, AGC, AWB, ROI, Privacy Masking |
| ANR | Yes |
| EIS (Image Stabilizer) | Yes |
| AcuSense | DeepLearning based technology for human and vehicle classification with false alarm reduction applied on: Line Crossing, Area Intrusion |
| Face Capture | Detects up to 5 faces simultaneously. It allows you to detect, capture, classify, and select moving faces, and generate the best image of the face. |
| Pan/Tilt Range | Horizontal: 0~360°, Vertical: -15°~90° (auto-flip) |
| Manual speed | Horizontal: 0.1~120 °/s, Vertical: 0.1~80 °/s |
| Speed between Presets | Horizontal: 120 °/s, Vertical: 80 °/s |
| Preset positions | 300 preset |
| Internal memory | MicroSD card slot up to 512 GB |
| Audio | 1 input (Line In) / 1 output (Line Out) |
| Audio Compression | G.722.1,G.711,G.726,MP2L2,PCM,MP3,AAC |
| Audio bit rate | 64 Kbps (G.711),16 Kbps (G.722.1),16 Kbps (G.726),32 at 192 Kbps (MP2L2),16 at 64Kbps (AAC-LC),8 at 320 Kbps (MP3) |
| Alarms | 2 inputs / 1 output |
| PTZ Control | Through network access |
| Network interface | Ethernet 10 / 100 BaseT |
| Remote access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200 and Hik-Central |
| Interoperability | ONVIF (Profiles S, G, T), ISAPI, SDK, ISUP |
| Power | DC 36 V / 24 W max. PoE+ IEEE802.3at |
| Temp. operation | -30º C ~ +65º C |
| Degree of protection | Weatherproof IP67 Overvoltages 6000 V |
| Material | Metallic |
| Dimensions (without bracket) | Ø 210 mm x 344.7 mm (H) |
| Weight (without bracket) | 3 kg |
In the box
- Hikvision Motorised IP Dome Camera
- Installation material
- Installation template
- Wall bracket DS-1602ZJ included
