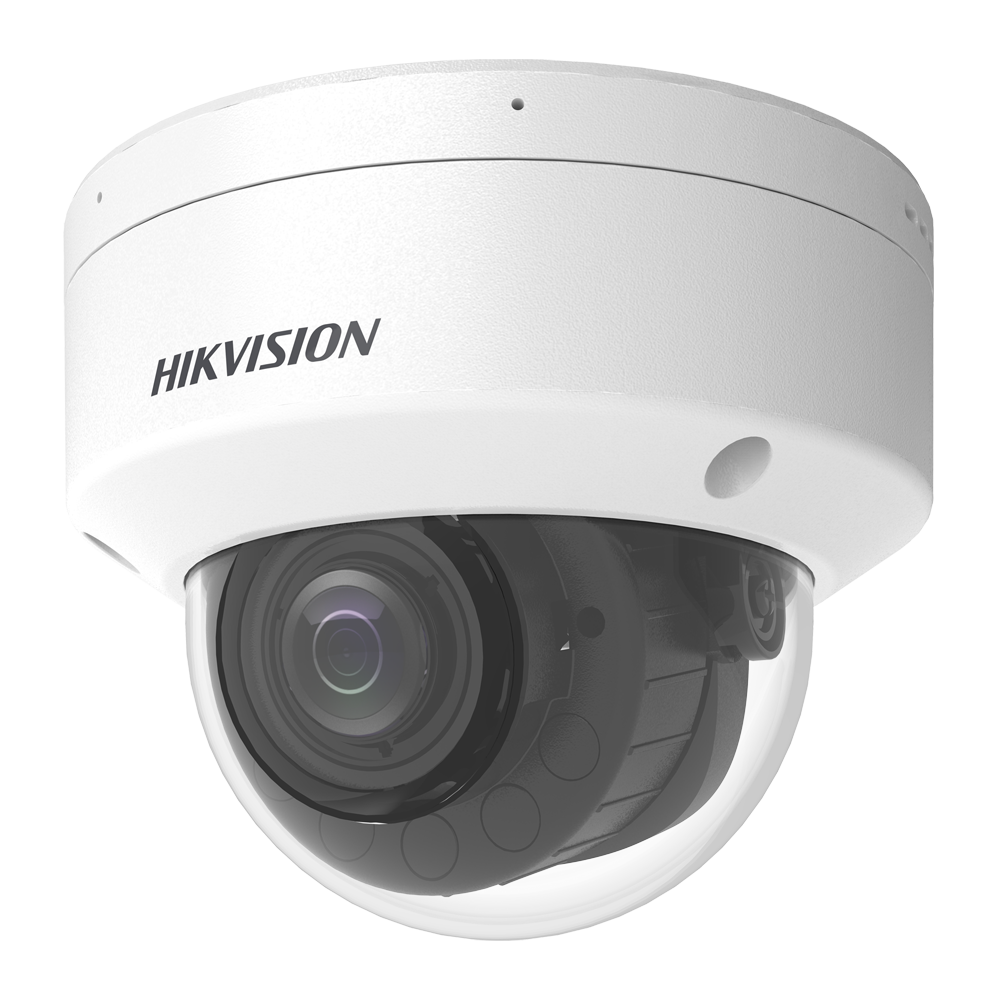

DS-2CD2783G2-LIZS2U/SL(2.8-12mm)
- Hikvision IP Dome camera PRO range
- Resolution 8 Megapixel (3840x2160)
- 2.8~12 mm Varifocal Motorised Lens
- Hybrid light range 30 m | White flashlight
- MicroSD | IP67, IK10 | Face Detection
- AcuSense | MD 2.0 | Alarms | Audio | Mic | PoE+
- Hikvision
- PRO Range
- IP Dome Camera
- 1/2.8" Progressive Scan CMOS
- 8 Megapixel (3840x2160)
- 2.8~12 mm Varifocal Motorised Lens
- 0 Lux
- Hybrid light: IR and White Light
- Hybrid light range 30 m
- Compression H.265+ / H.265 / H.264+ / H.264
- Motion detection 2.0
- AcuSense, false alarm filter for vehicles and persons (in line crossing and area intrusion)
- Face Detection
- WDR (120 dB)
- 3D-DNR
- Alarms
- White warning flash light
- Audio
- Integrated dual array microphone
- Integrated speaker
- MicroSD card slot up to 512 GB
- WEB, CMS, Smartphone and NVR interface
- ONVIF Compatible
- PoE+ (IEEE802.3at)
- Weatherproof IP67
- Vandal proof IK10
Specifications
| Brand | HIKVISION |
| Range | PRO |
| Image sensor | 1/2.8" Progressive Scan CMOS |
| Maximum resolution | 8 Megapixel (3840x2160) |
| Main Stream rate | 20 fps (3840x2160), 25 fps (3200x1800, 2688x1520, 1920×1080, 1280×720) |
| Extra Stream rate | 25 fps (1280x720, 640x480, 640×360) |
| Third Stream Rate | 10 fps (1920x1080, 1280x720, 640x480, 640×360) * Third Stream is supported under certain configurations |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 16 Mbps |
| Lens | Motorized varifocal 2.8~12 mm |
| Viewing Angle (FOV) | H: 106.5~30.2°, V: 55.7~17°, D: 128.5~34.7° |
| Range performance | 88.3~289.7 m (D), 35~114.9 m (O), 17.7~57.9 m (R), 8.8~29 m (I) |
| Electronic Shutter | 1/3~1/100.000 s |
| Minimum illumination | Colour: 0.005 Lux @(F1.6, AGC ON) 0 Lux with IR |
| Supplementary lighting | Hybrid light: IR Range 30 m White light range 30 m |
| Day/Night | Removable mechanical ICR filter |
| Image improvements | WDR (120 dB), BLC, HLC, 3D-DNR, ROI, Mirror function, Privacy masking |
| ANR | Yes |
| Motion Detection | Motion detection 2.0 with human and vehicle classification applied in motion detection. * Motion detection and AcuSense cannot be enabled at the same time on the same device. |
| Intelligent functions | AcuSense DeepLearning based technology for human and vehicle classification with false alarm reduction applied on: Line Crossing, Area Intrusion * Motion detection and AcuSense cannot be enabled at the same time on the same device. |
| Face Detection | Yes |
| Internal memory | MicroSD card slot up to 512 GB |
| Alarms | 1 input / 1 output |
| Deterrent white light (normal/flash) | White flashlight |
| Audio | 1 input / 1 output Integrated dual array microphone Integrated speaker |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio bit rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| Ambient noise filtering | Yes |
| Network interface | Ethernet 10 / 100 BaseT |
| Remote access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200 and Hik-Central |
| Interoperability | ONVIF (Profile S, G), ISAPI, SDK, ISUP |
| Power | DC 12 V / 1350 mA / 16.2 W max. PoE+ (IEEE802.3at) |
| Degree of protection | Weatherproof IP67 Vandal proof IK10 |
| Material | Aluminium alloy |
| Temp. operation | -30º C ~ +60º C |
| Dimensions | Ø 121.5 mm x 97.6 mm (H) |
| Base dimensions | Ø base 121.5 mm / Ø entre tornillos 104.7 mm / 3 tornillos |
| Weight | 1531 g |
In the box
- Hikvision IP Dome Camera
- Installation material
- User instructions
