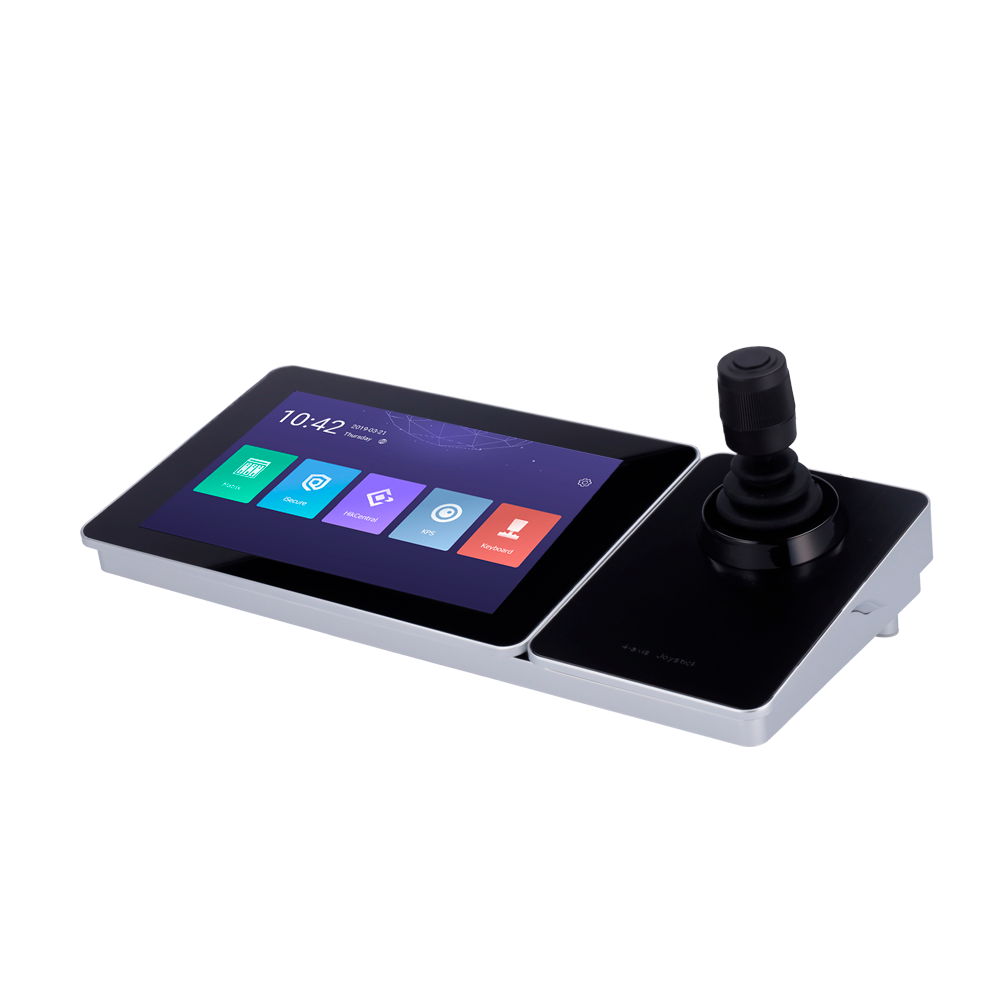

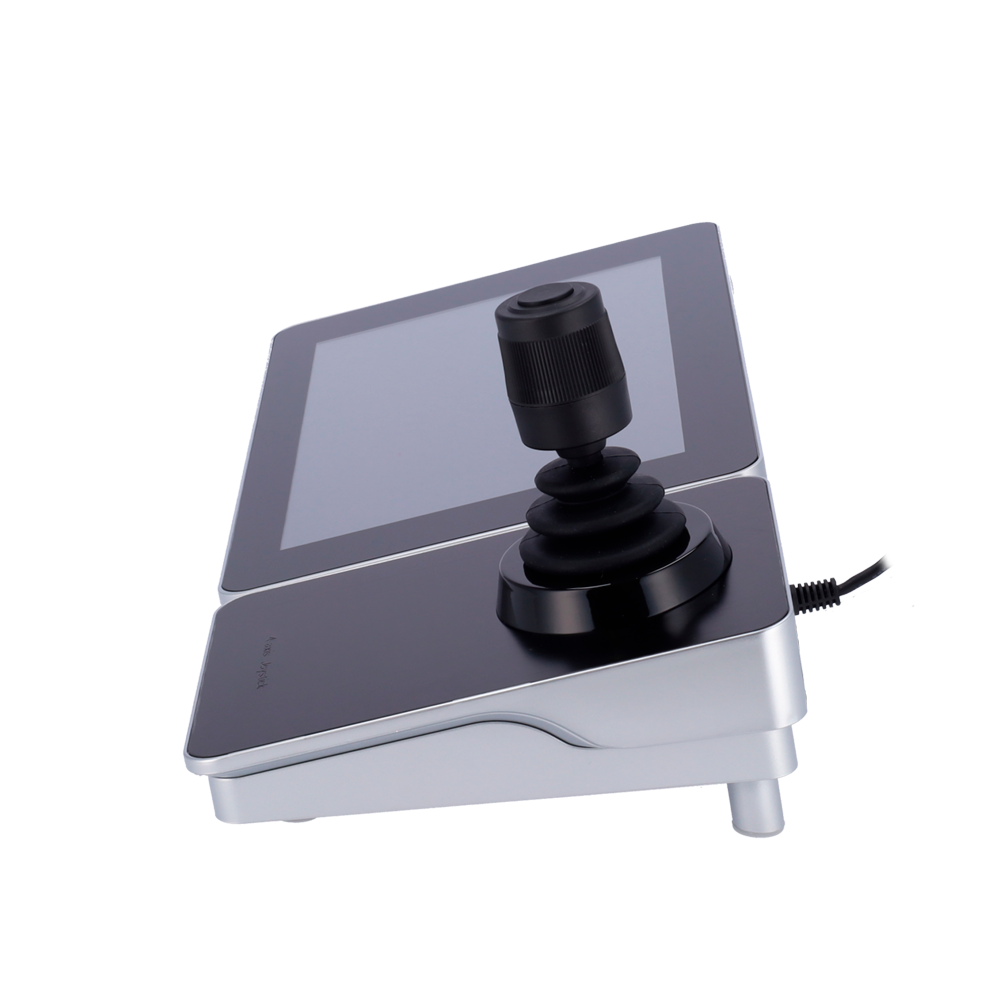

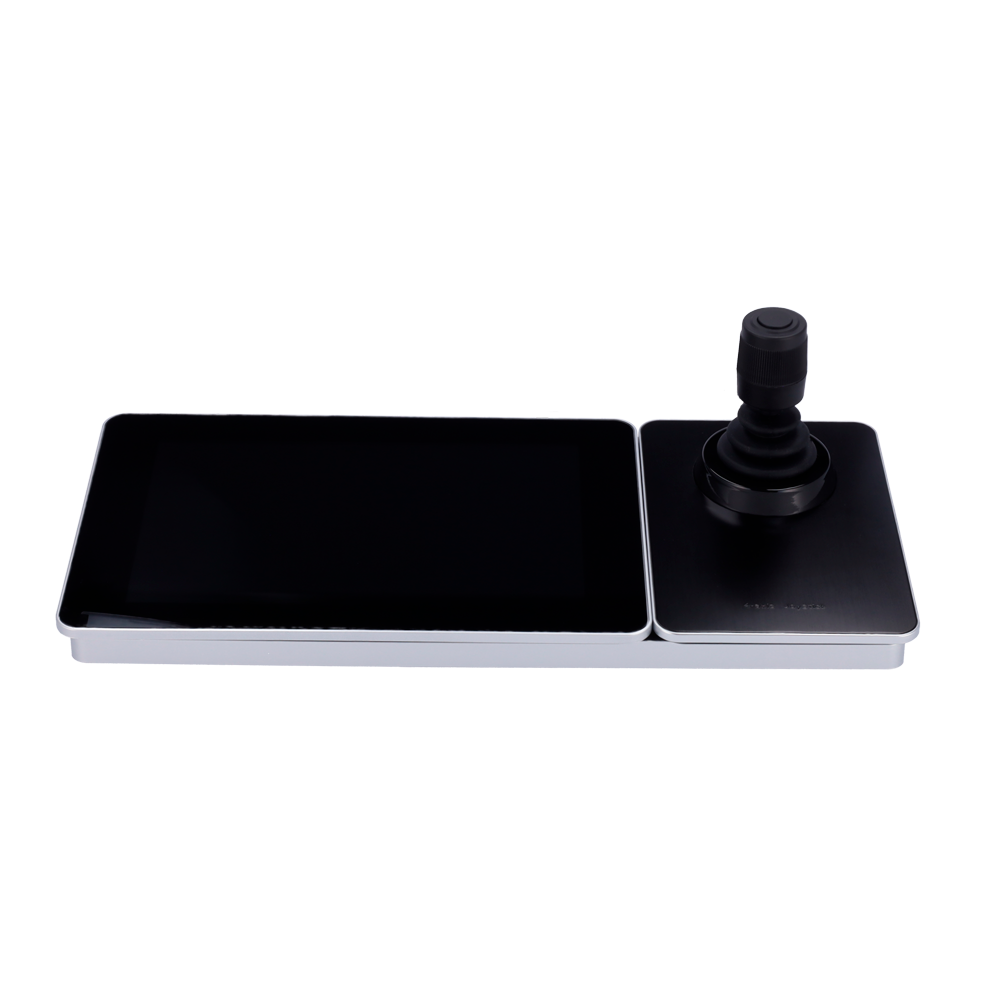

DS-1600KI(B)
Ga direct naar de productinformatie
DS-1600KI(B)
- Hikvision IP Keyboard
- Double interface: direct or network
- 10.1" TFT LCD Screen
- IP network with connector RJ45
- Joystick 4 axis
- Save images locally via USB
- Hikvision
- Network control keyboard
- For control of DVR, NVR and Motorized Domes Hikvision brand and video wall

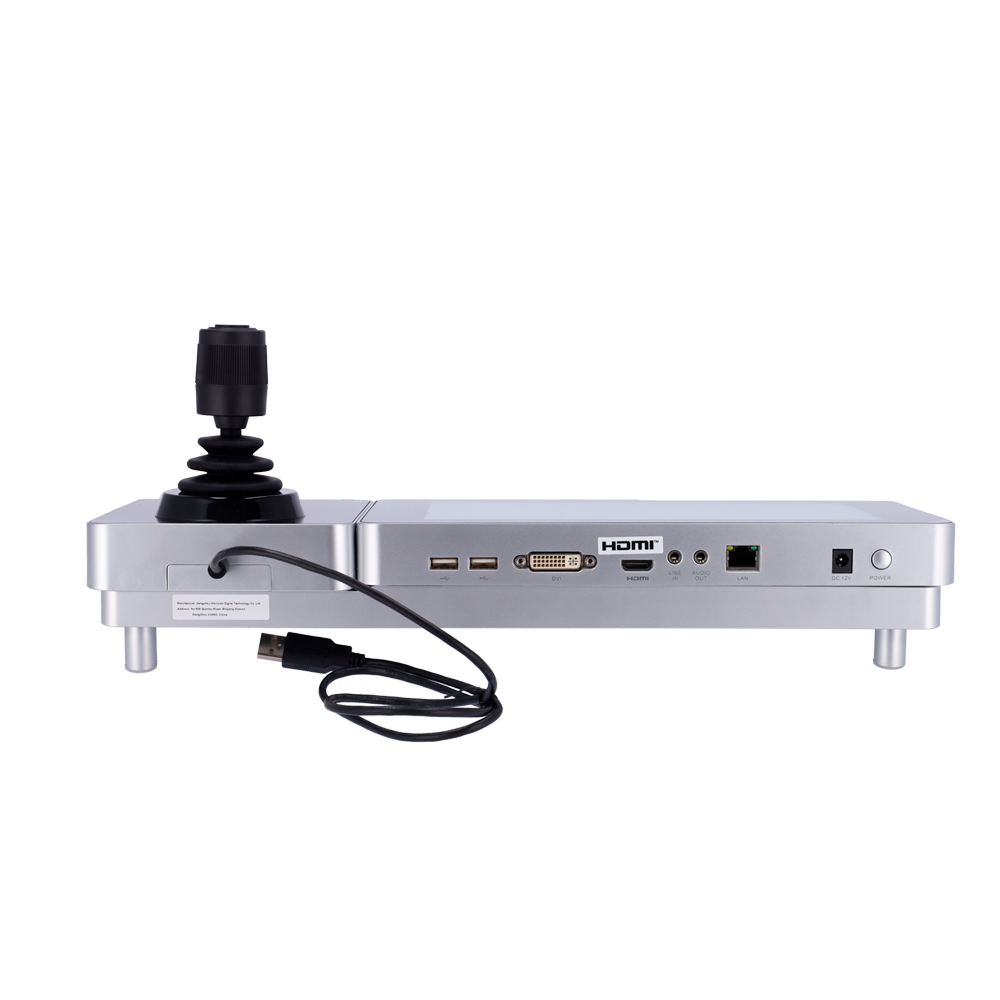

- Connections RS232, RS422, RS485, USB and Network
- 4 Axis joystick
- 10.1" (1200x800) TFT screen
- Bidirectional audio
- Web browser configuration
Specifications
| Brand | Hikvision |
| Control modes | DVR, Analogue Dome, VMS and Analogue Matrix |
| Communication mode | RJ45, USB |
| Supported protocols | Pelco P/D, Hikvision and others |
| Display | LCD 10.1" TFT 1280x800 |
| Display Resolution | 1080P / 720P / HD1 / BCIF / CIF / QCIF |
| Grid on local screen | Up to 16 |
| Video interface | HDMI / DVI |
| Other ports | 2 x USB 2.0 / 1 x Audio (Jack 3.5 mm) |
| Other ports | Two-way Audio |
| Joystick | 4 Axis |
| Network interface | RJ45 10/100/1000 Mbps / WiFi |
| Users | 32 Users (1 Administrator, 31 Operators) |
| Power | DC 12V / 15 W / PoE |
| Temperature | -10ºC ~ +55ºC |
| Dimensions | 163 (H) x 404 (W) x 180 (D) mm |
| Weight | 1700 g |
In the box
- Control keyboard
- Power supply
