DR-S-9988LGE7
Ga direct naar de productinformatie

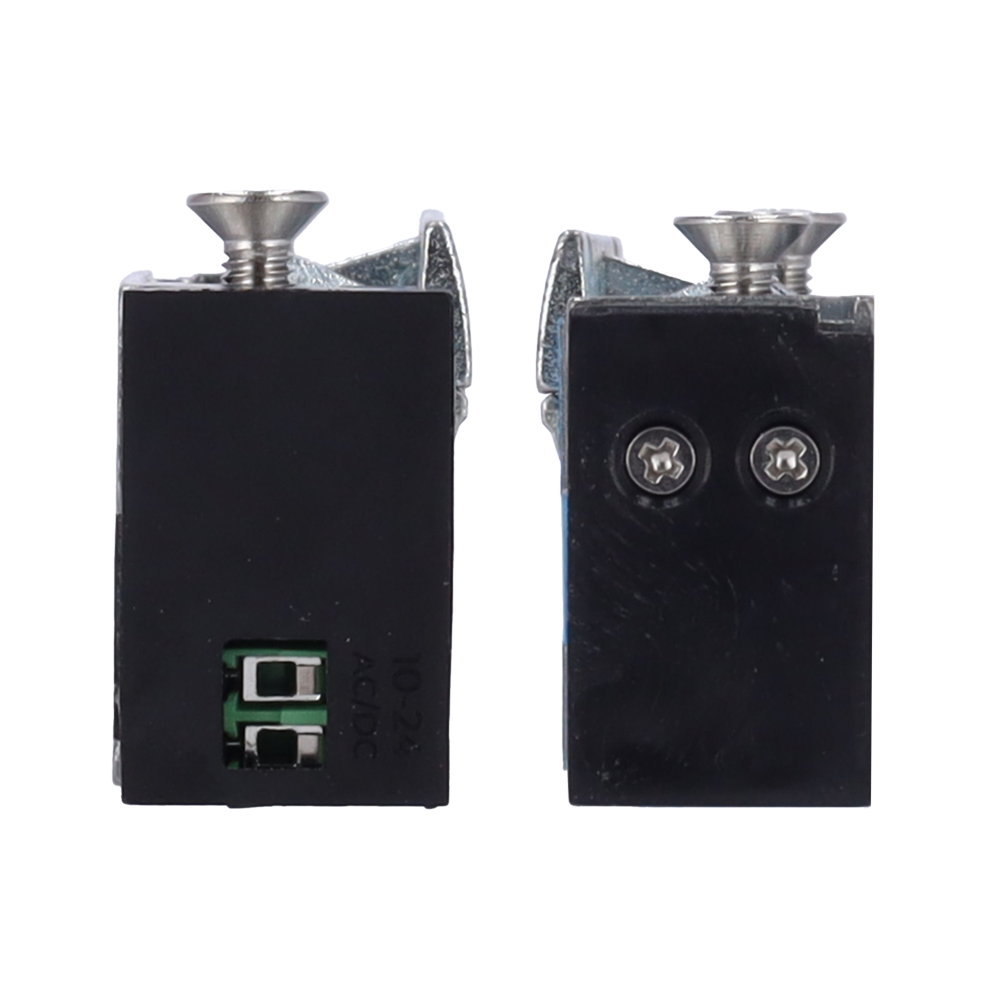

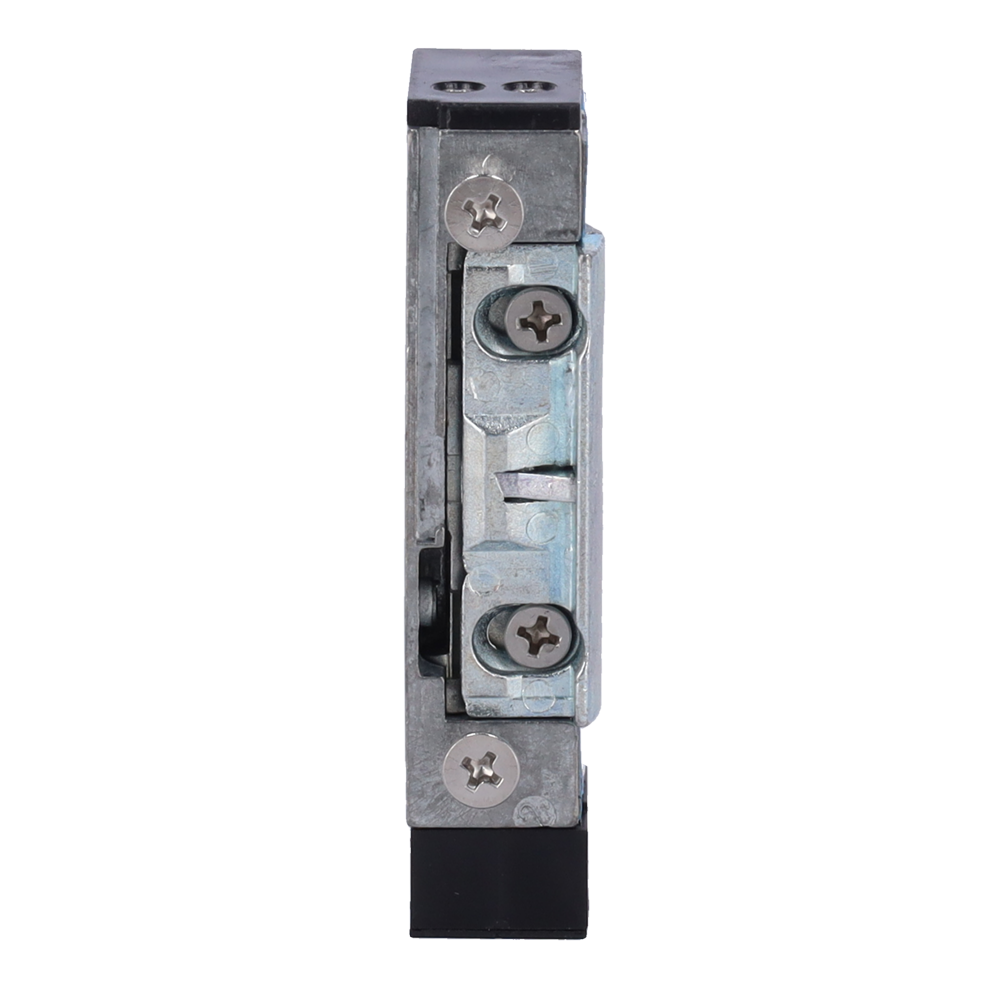

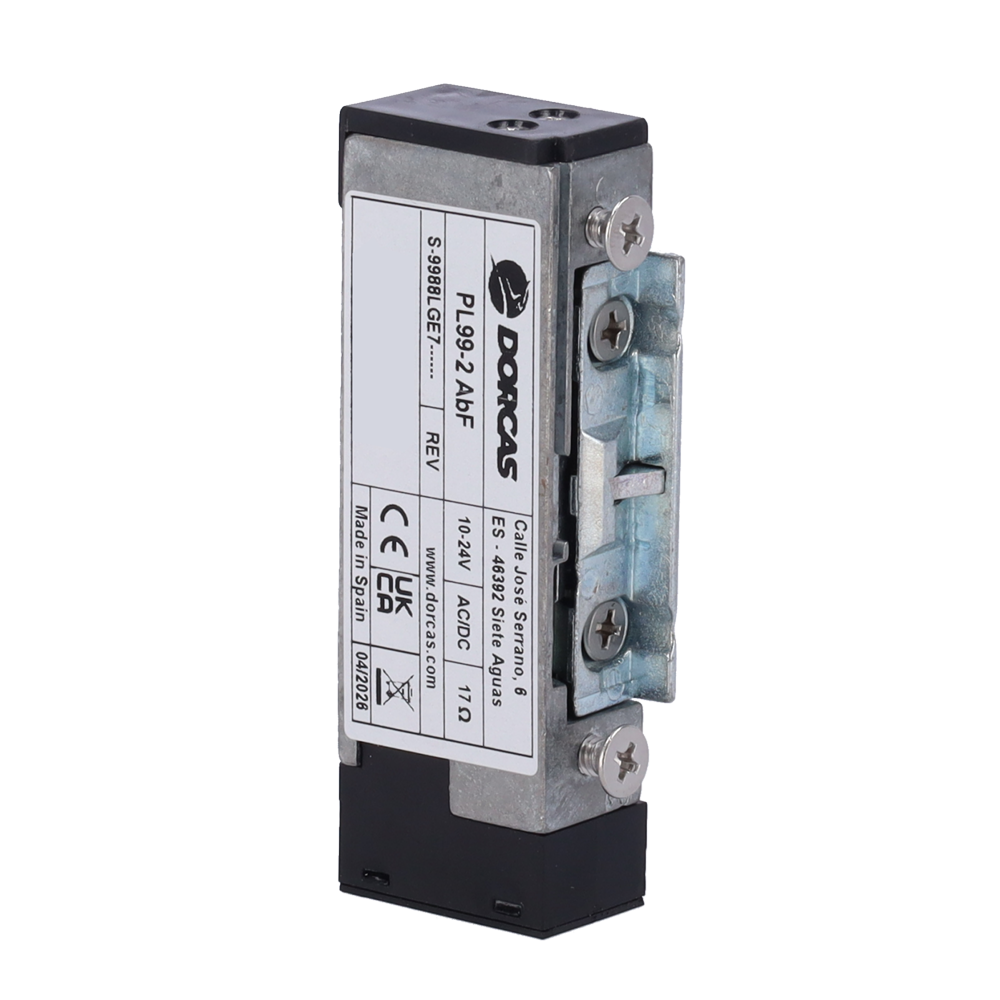

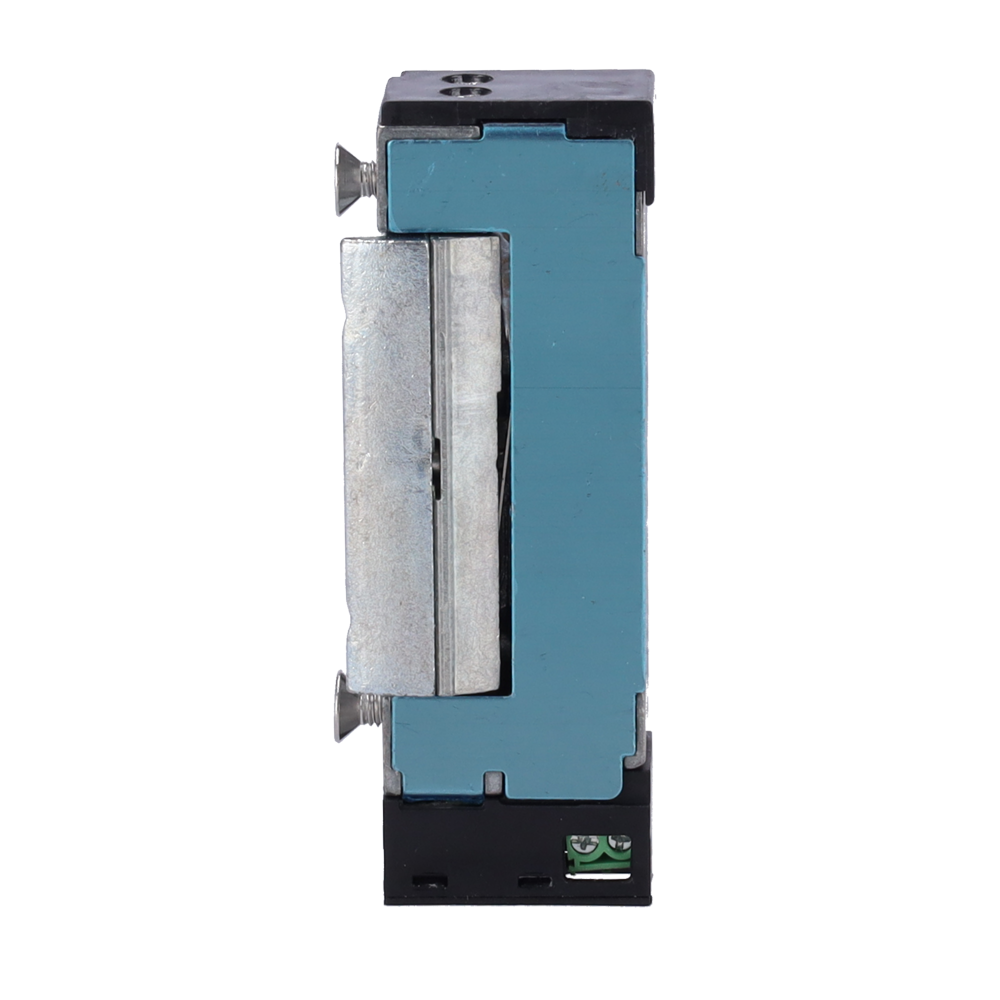

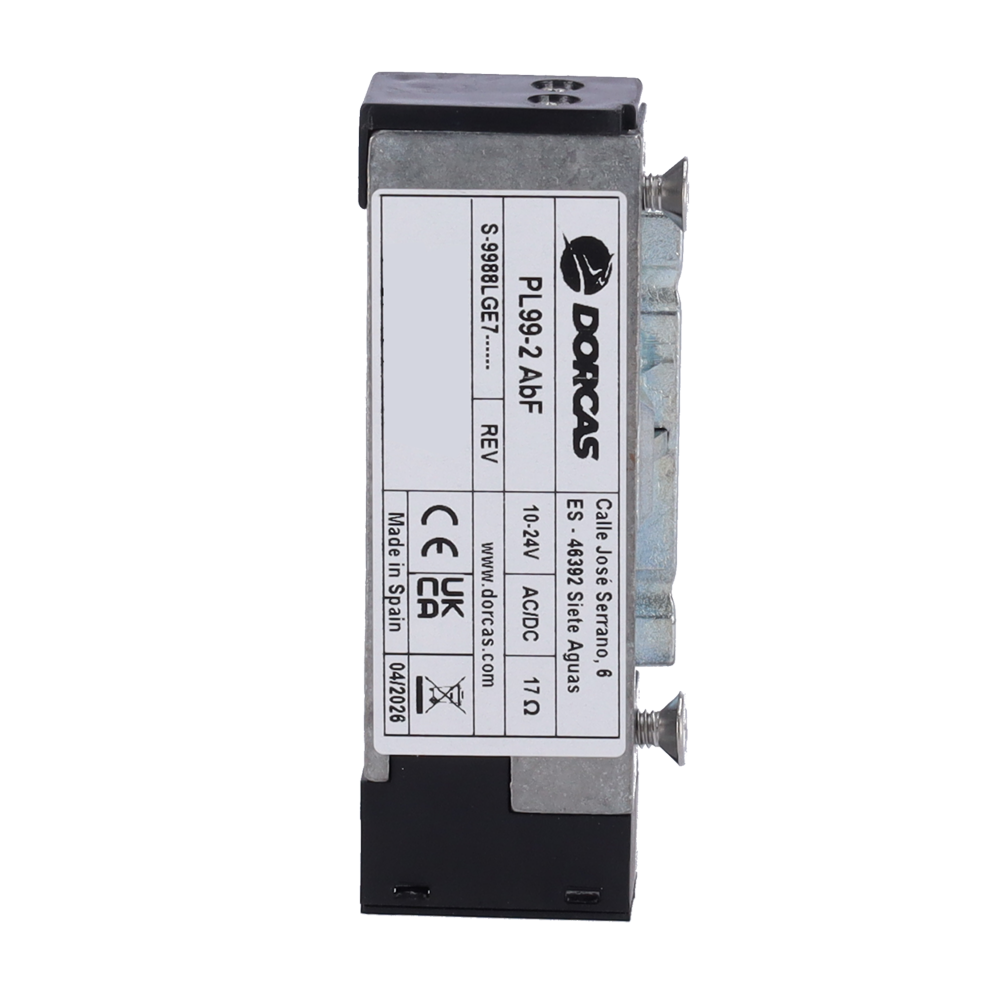

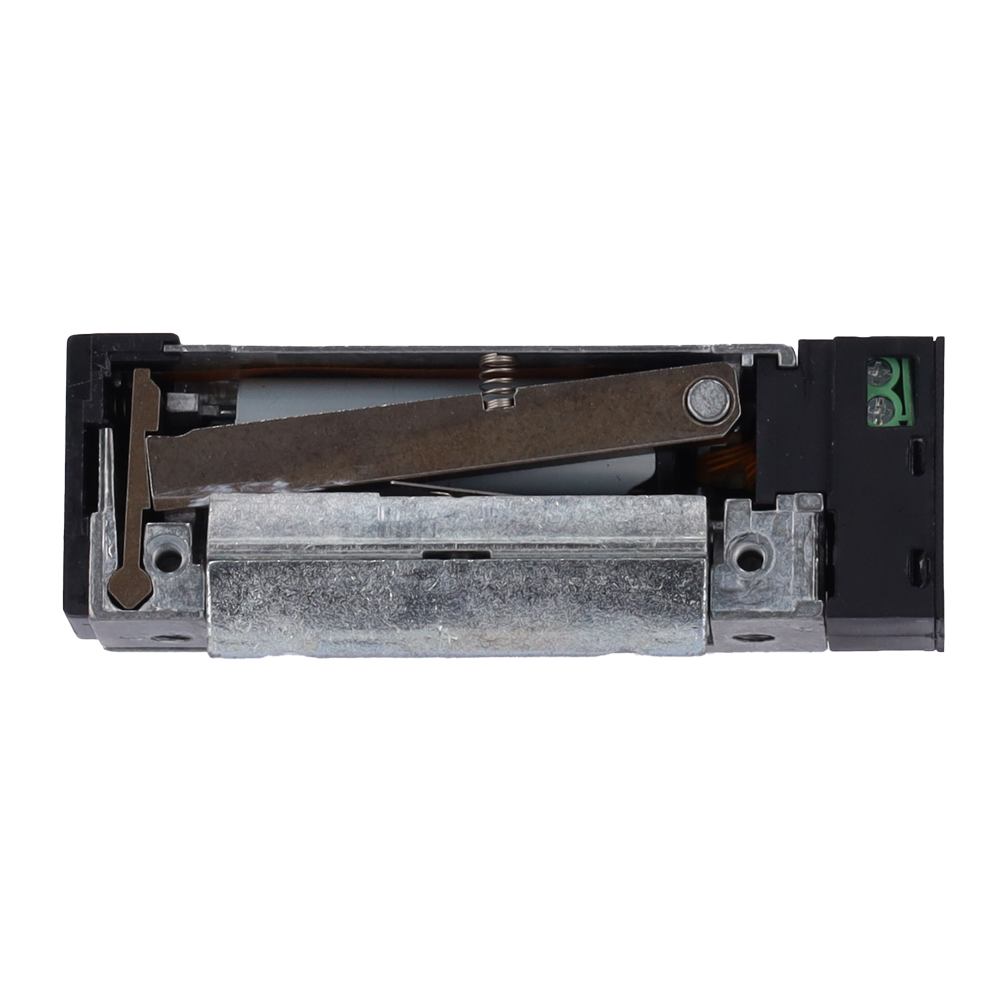

DR-S-9988LGE7
- Dorcas electric strikes
- For single door : Adjustable radial bolt
- Fail Secure (NO) aperture mode
- Retention force 330 kg
- AC/DC power supply 10-24V | Memory
- Preload up to 40 kg
- Dorcas
- Electrical door openers
- Fail Secure (NO) operation with memory
- Opening with preload up to 40 kg
- Symmetrical and reversible
- Narrow bottom
- Installation without the need to cut into the front panel or door cutout
- Stainless steel
- Load resistance 330 kg
- 10-24 VAC/VDC
- EN Certification 14846
Specifications
| Brand | Dorcas |
| Model | DR-S-9988LGE7 |
| Mounting | Built-in |
| Opening mode | Fail Secure (NO) with memory |
| Functions | Adjustable radial latch Lid with anti-friction system and ramp with latch guide (no need to cut into the front or cutout in the door) Opening with preload up to 40 kg: allows the door to be held closed with a pressure of up to 40 kg without the need for the door to be completely aligned with the frame |
| Retention force | 330 kg |
| Power | AC/DC 10-24 V / 600 mA max. |
| Material | Stainless steel |
| Dimensions | 25.2 (W) x 160 (H) x 28.5 (D) mm |
| Weight | 500 g |
In the box
- Electrical door openers
- Installation material
- User instructions
