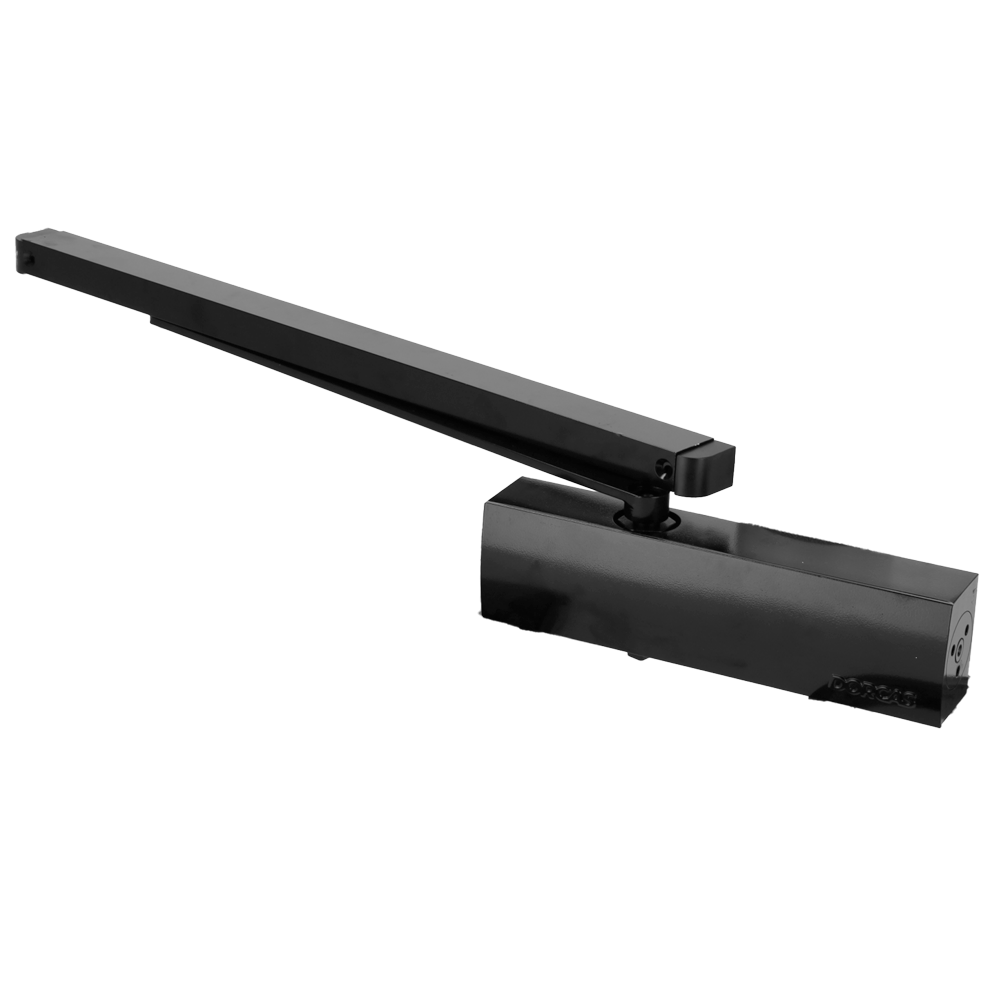

DR-D-22233/B
- Sliding arm door closer
- Surface and reversible installation
- Opening with reduced force
- Doors between 25~100 kg and 850~1250 mm
- Adjustable speed | Precise force adjustment
- For all types of doors
- Dorcas
- Sliding arm door closer with hold-open function
- Door opening with reduced force
- Surface and reversible installation
- Suitable for all types of doors, including RF
- For doors weighing between 25 and 100 kg
- For door widths between 850 and 1250 mm
- Maximum opening 160°
- Two adjustable closing speeds
- More than 500.000 usage cycles
- Black colour
Specifications
| Brand | Dorcas |
| Model | DR-D-22233/B |
| Installation | Surface mounted and reversible (for right or left closing) |
| Door type | All types of doors, including RF doors |
| Door width | Between 850 and 1250 mm |
| Door weight | Between 25 and 100 kg |
| Maximum opening | 160° |
| Closing speed | Adjustable between two levels: Speed 1: 160°~15° Speed 2: 15°~0° |
| Special functions | Retaining arm (facilitates opening by reducing the force required) Precise force adjustment by means of lateral screw |
| Dimensions | 235 (W) x 50 (H) x 44 (D) mm |
| Material | Metallic |
| Weight | 2.42 kg |
In the box
- Dorcas door closer
- Installation material
- User instructions
