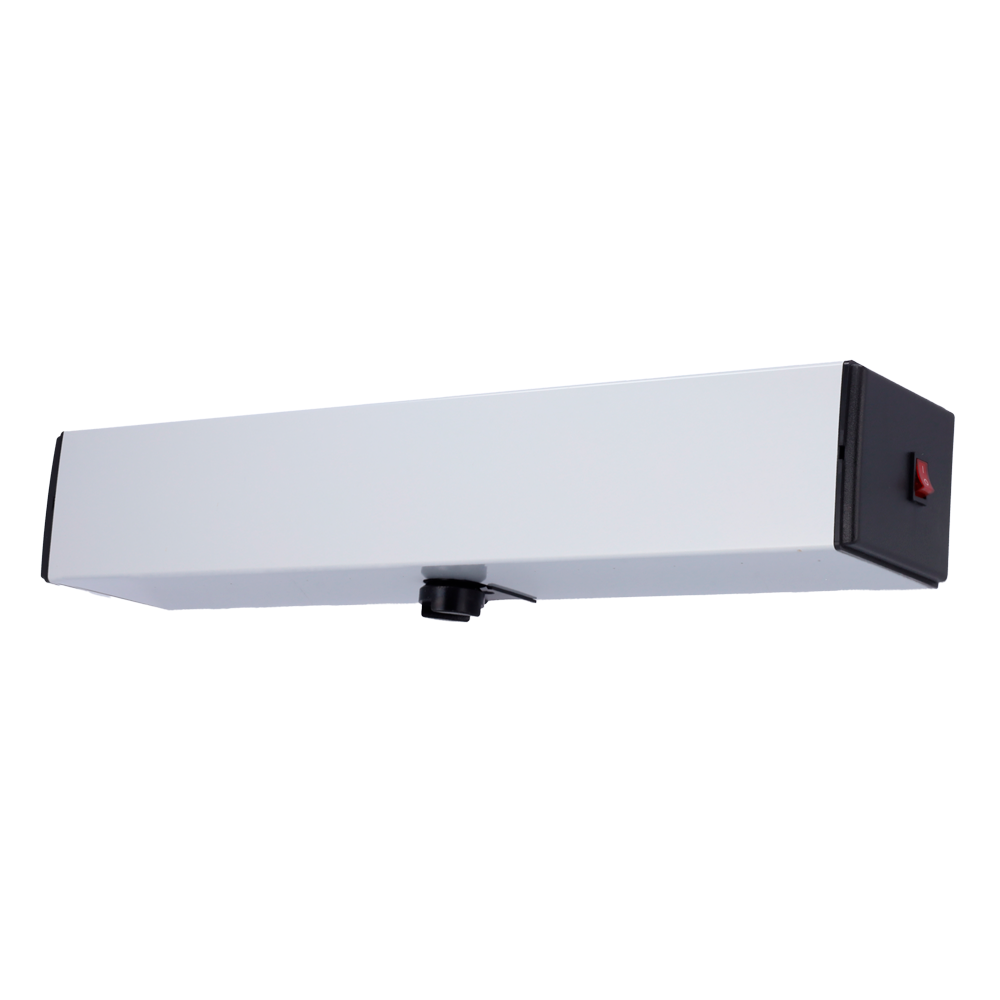

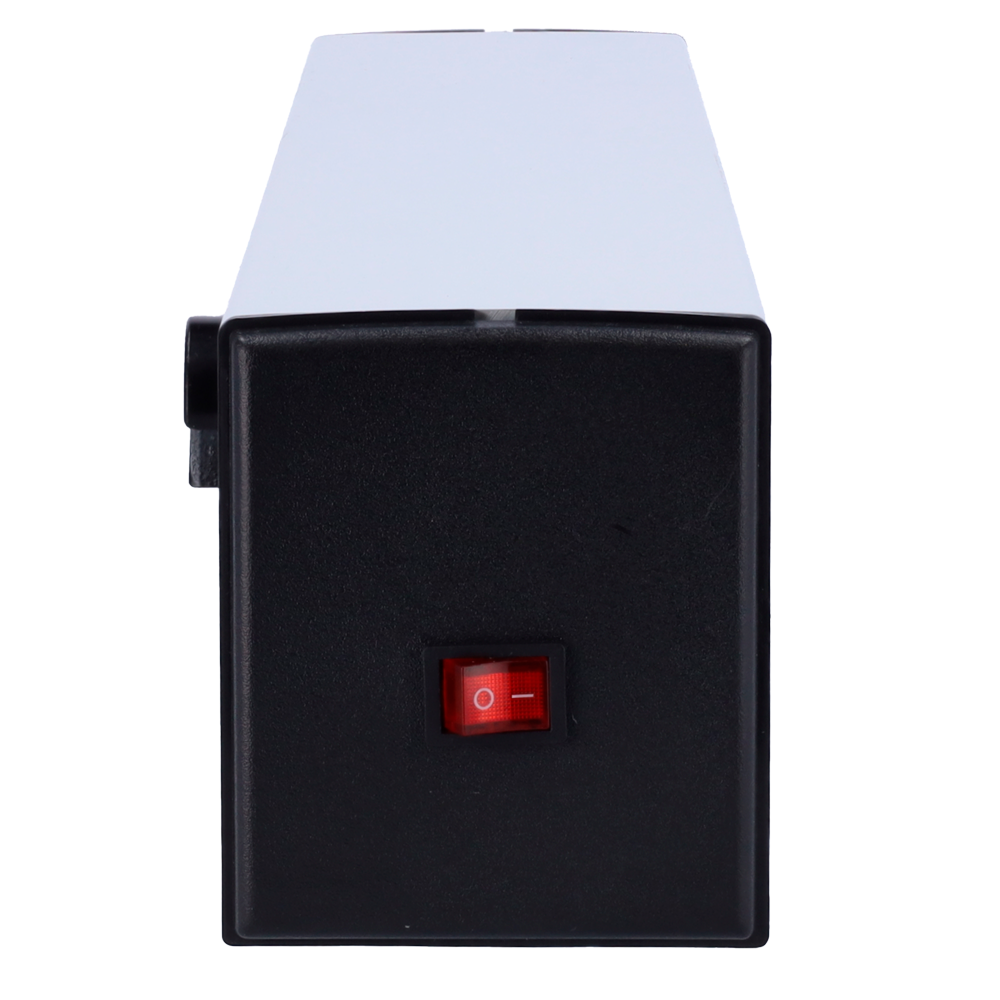

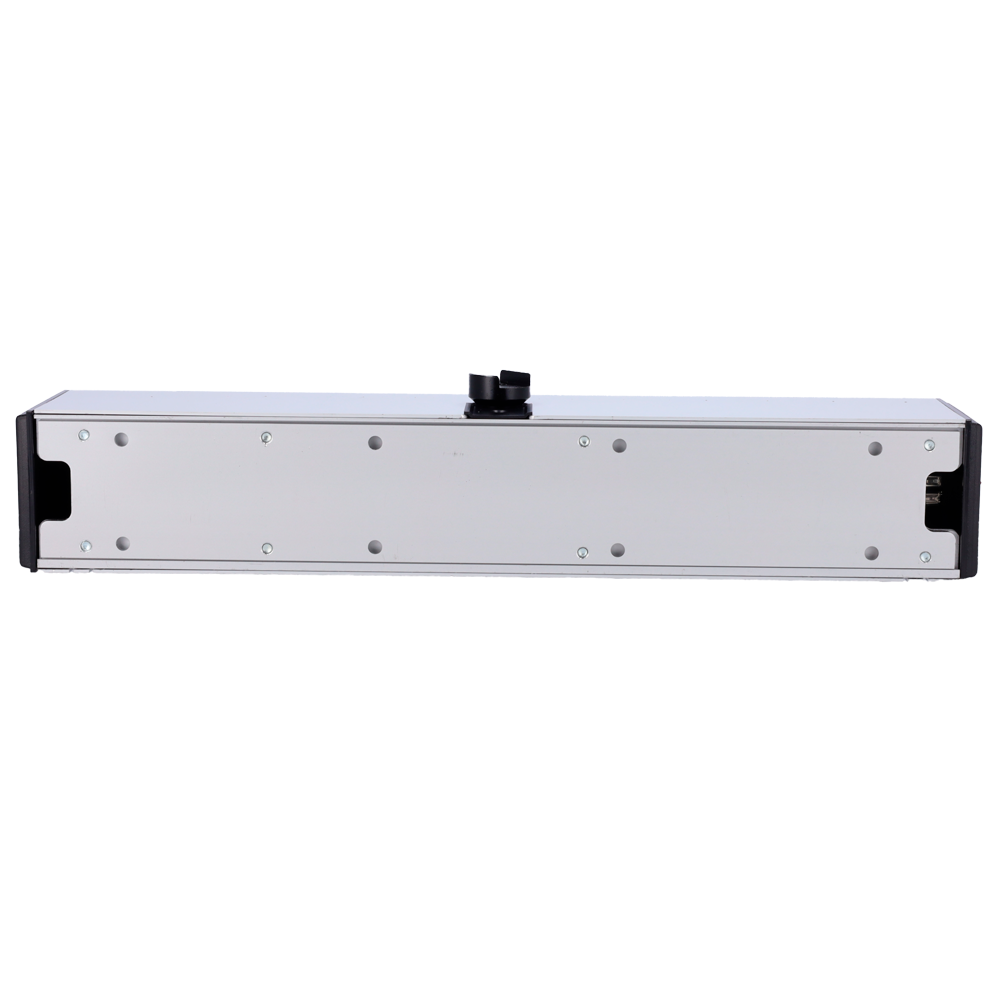

DOOROPENER-AUTO-PUSH
- Automatic door operator
- Straight arm
- Inward opening
- Doors up to 150 kg and 1200 m
- Configurable speed, force and times
- For all types of doors
- Safire
- Automatic door operator
- Articulated arm
- Surface installation
- Suitable for all types of doors, including RF
- For doors weighing up to 150 kg
- For door widths up to 1200 mm
- For inward opening doors
- Configuration plate
- Configurable speed, force and opening time
- 12/24 VDC output for lock
- More than 2.000.000 usage cycles
- Includes two remote controls
Specifications
| Brand | Safire |
| Model | DOOROPENER-AUTO-PUSH |
| Installation | Surface mounted (for right or left closing) |

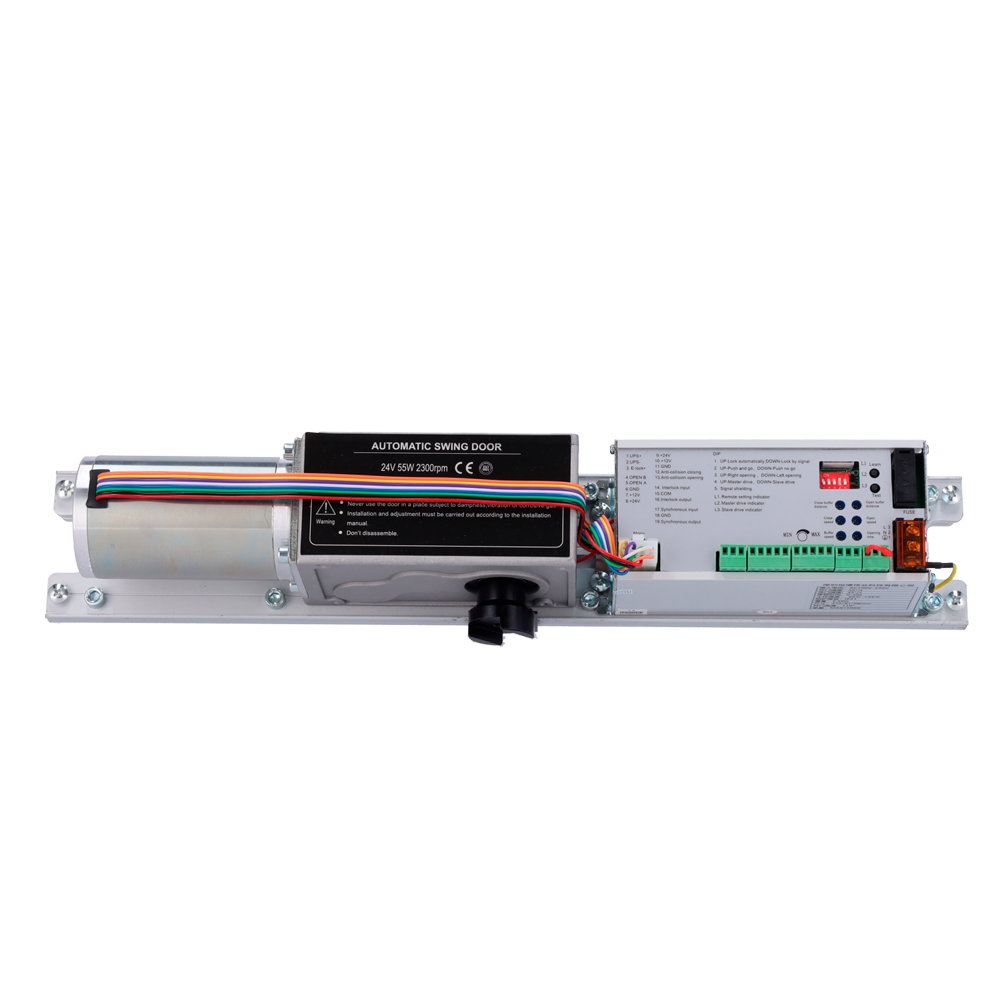

| Operation | Automatic (for opening and closing) with brushless brushed motor Articulated arm (inward opening) Opening or closing by remote control Configurable speed, force and opening time |
| Configuration | By DIP switch |
| Remote control distance | ≥ 20 m Supports up to 15 remote controls simultaneously |
| Door type | All types of doors, including RF doors |
| Door width | Up to 1200 mm |
| Door weight | Up to 150 kg |
| Maximum opening | 110 ºC |
| Power | 100-240 VAC Suitable for battery backup (not included) |
| Outputs | 1 x 12/24 VDC (1 A max.) for connection with locking device |
| Material | Metallic |
| Degree of protection | Suitable for indoor use IP21 |
| Dimensions | 475 (W) x 81 (H) x 98 (D) mm |
| Weight | 5.5 kg |
In the box
- Safire door operator

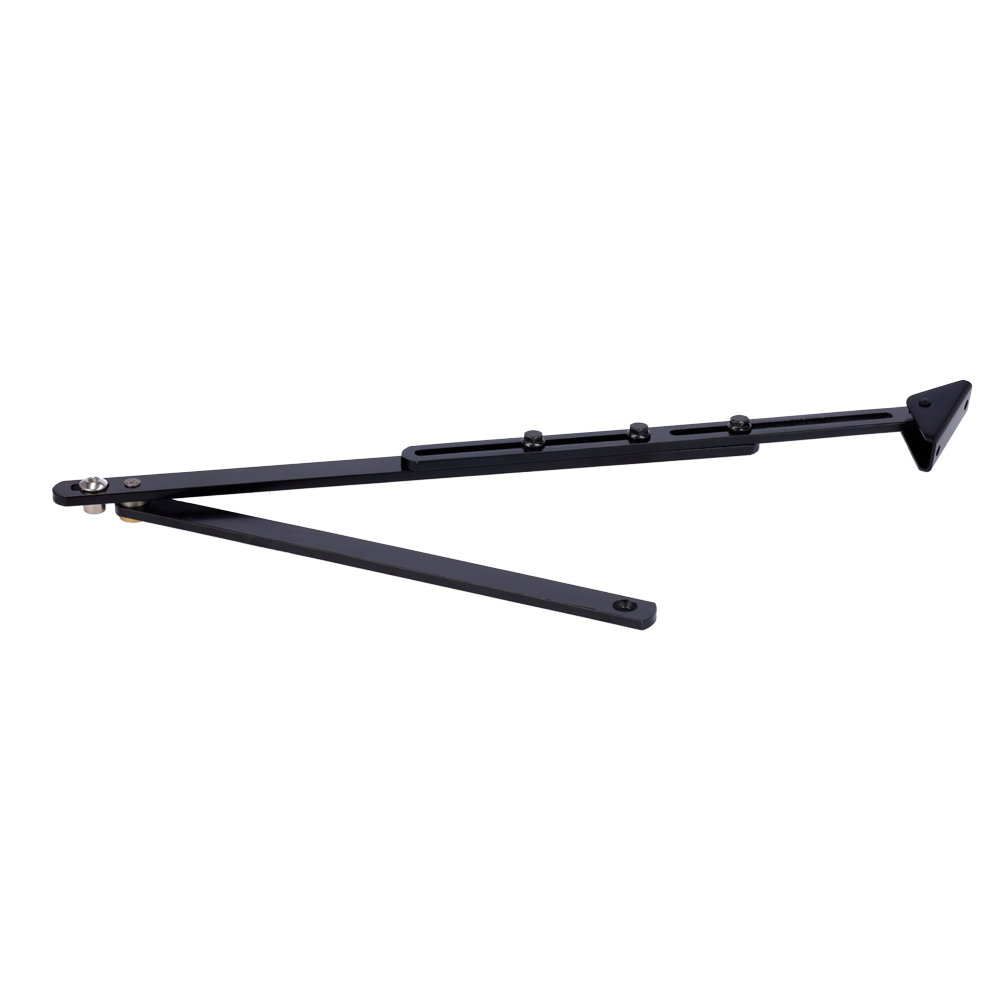

- Articulated arm

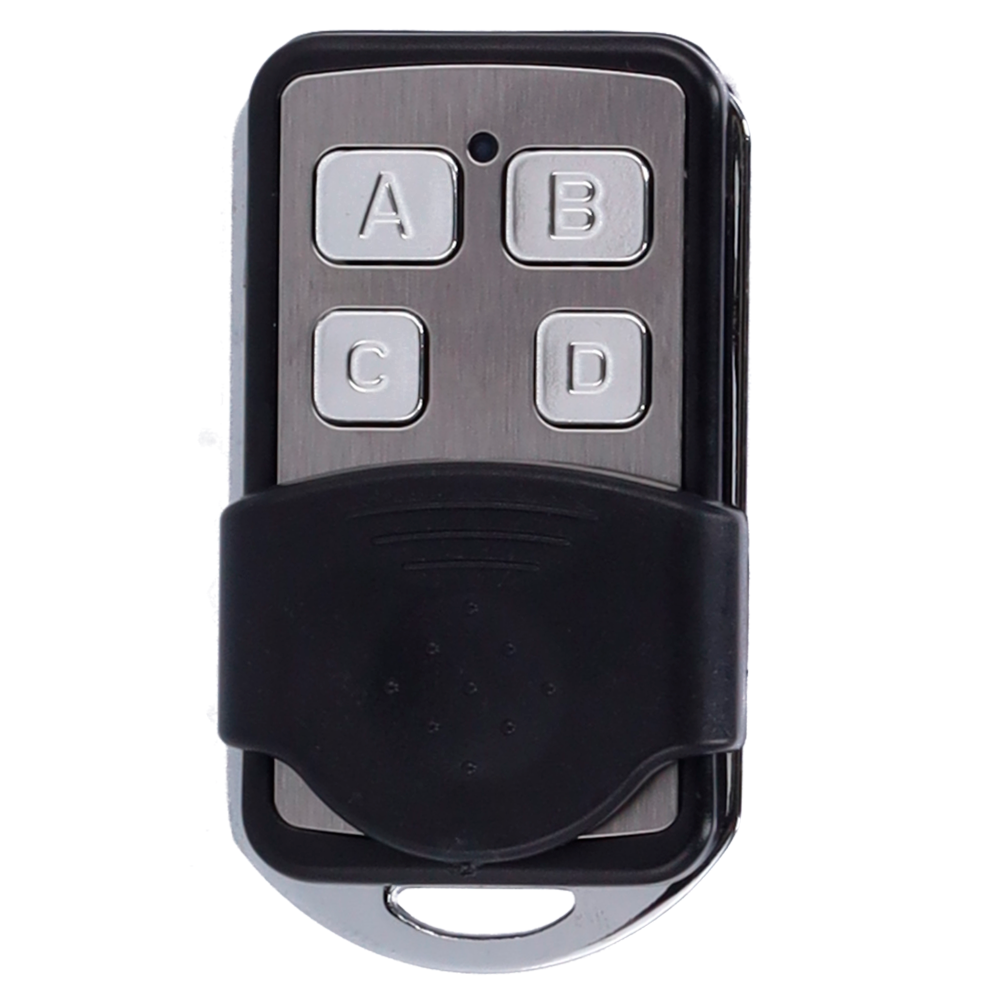

- 2 x Remote control
- Installation material
- User instructions
