DM957ZIB-F4N1
Ga direct naar de productinformatie
DM957ZIB-F4N1

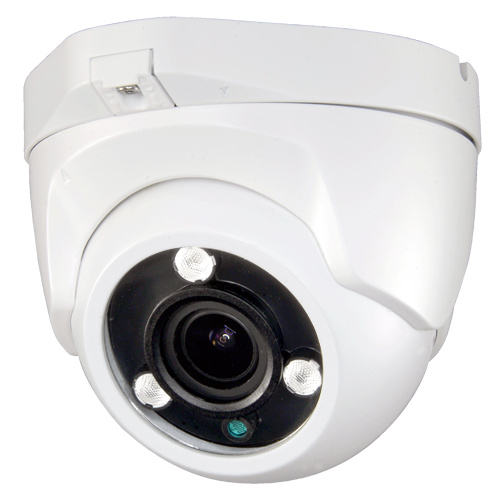

- 1080p ECO Dome Camera
- 4 in 1 (HDTVI / HDCVI / AHD / CVBS)
- 1/2.7" Brigates© BG0806
- [%VAR]mm Motorised, varifocal, lens
- IR LEDs Array Range 40 m
- OSD remote menu from DVR
- HDTVI, HDCVI, AHD and Analogue dome camera
- ECO Range
- 2.0 Megapixel
- BG0806+FH8550
- HD 1080P (1920x1080)
- 960H Test (Analogue)
- Output 4in1
- 2.7~13.5 mm Motorised Autofocus Lens
- 0 Lux - IR Array Range 40 m
- 3DNR
- IR Cut
- Screw for easy orientation
- Weatherproof IP66
Specifications
| Range | 1080p ECO |
| Image sensor | 1/2.7" Brigates© 2.0 Megapixel (BG0806) |
| DSP | FH8550 |
| Resolution | HD 1080p (1920x1080) at 25 FPS |

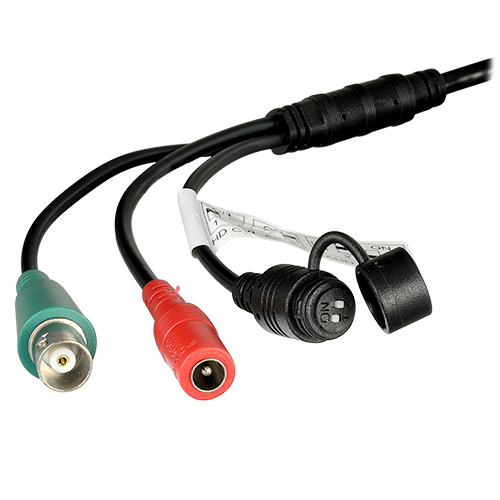

| Video output | 1 x BNC switchable HDTVI 2.0 / HDCVI / AHD / CVBS |
| Minimum illumination | 0 Lux / IR LEDs Array (40 m) |
| Basic functions | OSD menu, Day/Night with IR-CUT (ICR) |
| Configurable OSD functions | DWDR, 3D-NR, AE, AWB, AGC |

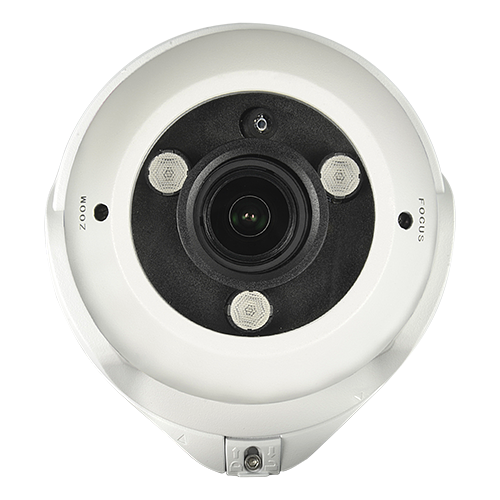

| Lens | Motorised varifocal 2.7 - 13.5mm with Autofocus |
| Power | DC 12 V / 500 mA max. |
| Degree of protection | Weatherproof IP66 |
| Temp. operation | -10º C ~ 50º C |
| Dimensions | 95 (D) x 120 (Ø) mm |
| Weight | 500 g |
In the box
- Dome camera 4 in 1
- Mounting material
- User instructions
