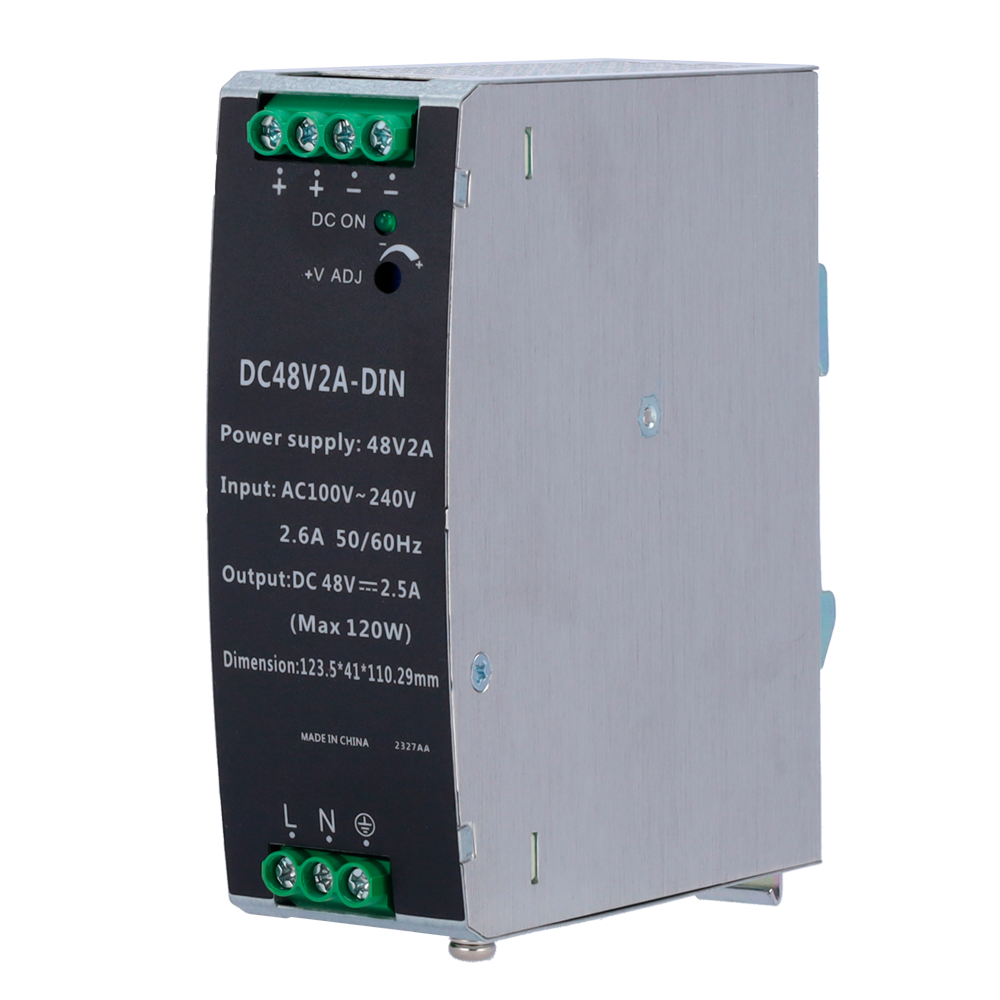

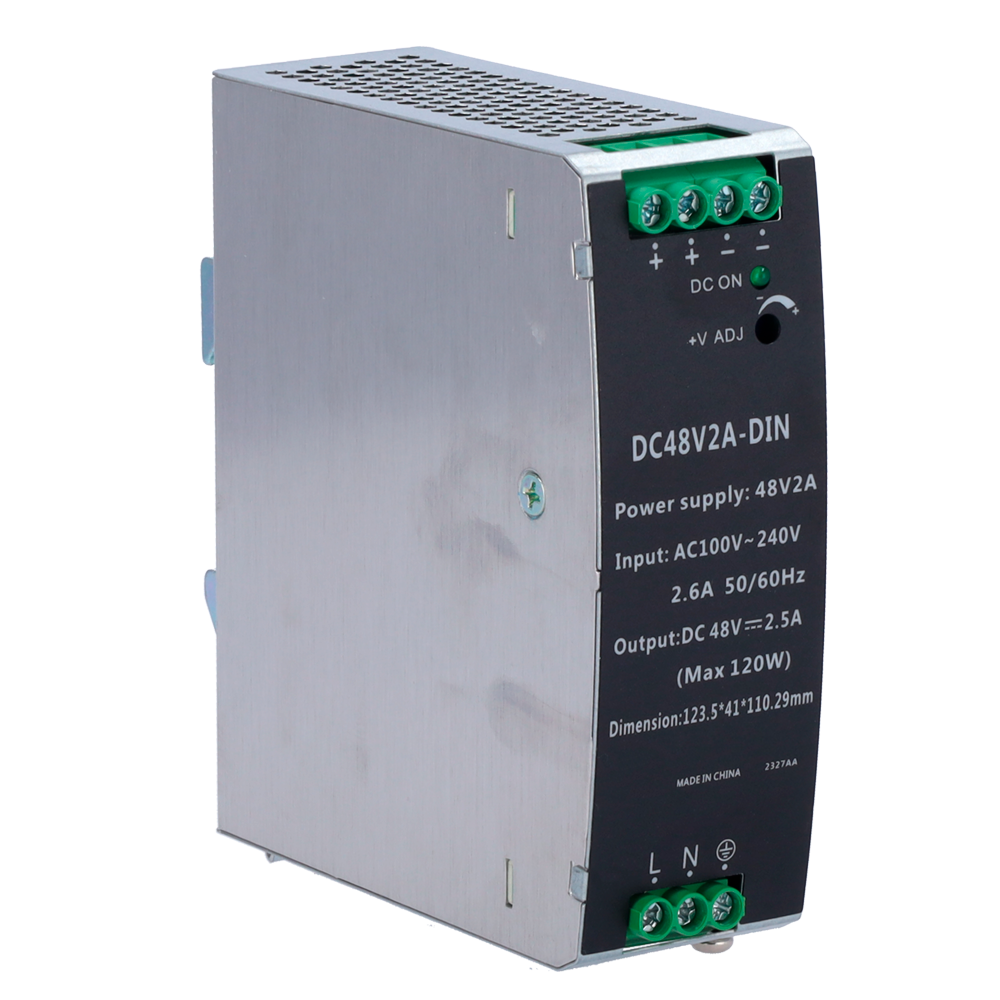

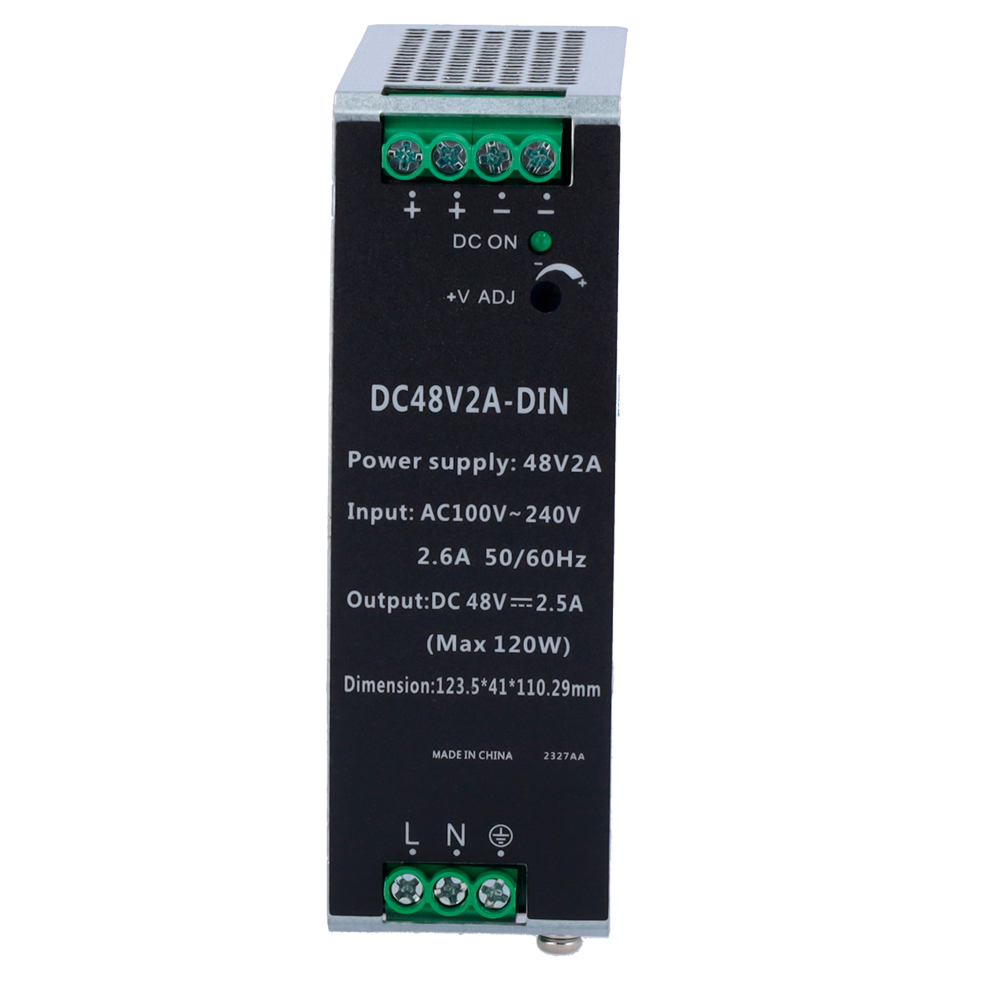

DC48V2A-DIN
Ga direct naar de productinformatie
DC48V2A-DIN
- Switching Power Supply
- DC Output 48V 2.5A / 120W
- 2 outputs
- Input voltage 100 V ~ 240 V
- 123.5 (H) x 41 (W) x 110.3 (D) mm

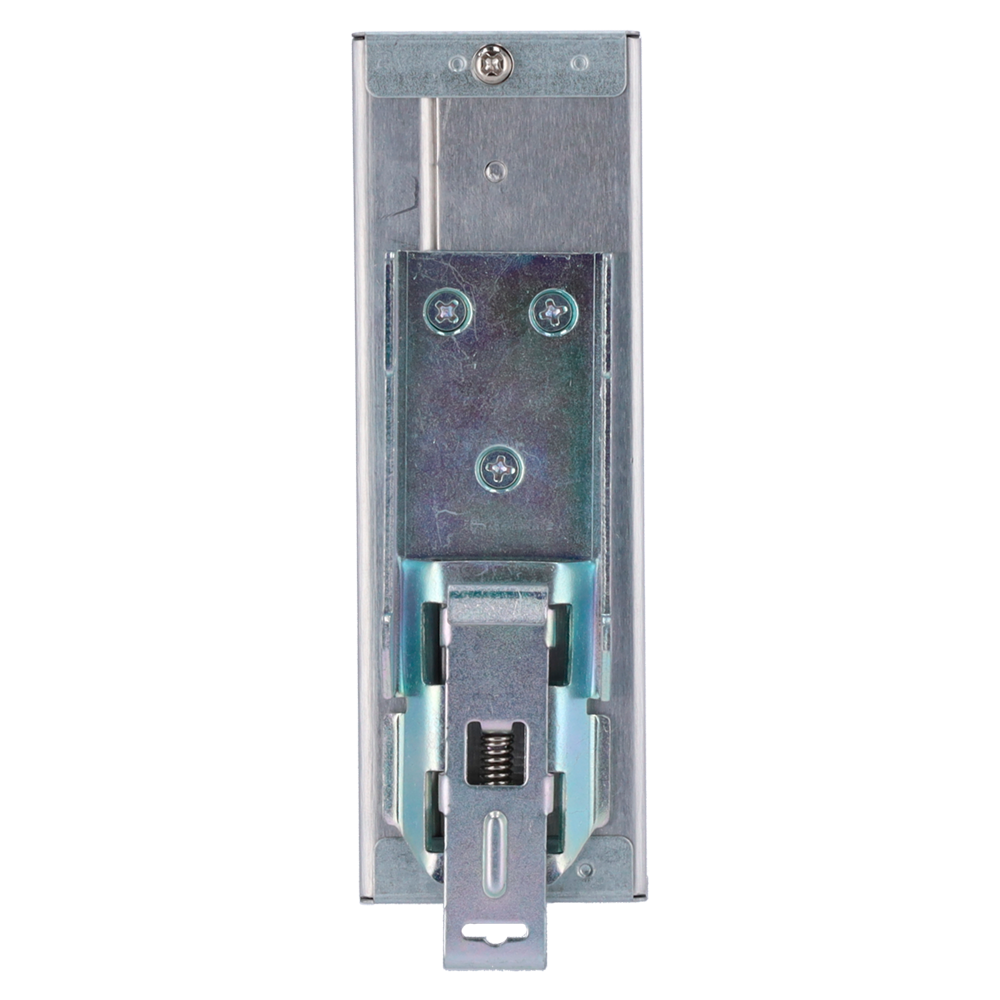

- DIN rail mount
- Switching power supply
- DIN rail format
- Output DC 48 V - 2.5 A / 120 W
- 2 outputs
- Voltage Range 47.5 V ~ 48.5 V
- Efficiency 89%@230VAC
- 123.5 (H) x 41 (W) x 110.3 (D) mm
Specifications
| Power supply input | AC 100~240 V (50/60Hz) |
| Power supply output | DC 48V 2.5A |
| Voltage range | Adjustable 47.5 V ~ 48.5 V |
| Maximum output power | 120W |
| Number of outputs | 2 |
| Energy Efficiency | 89% at 230VAC |
| Dimensions | 123.5 (H) x 41 (W) x 110.3 (D) mm |
| Weight | 526 g |
In the box
- Power supply
