DC12V5A-4-DIN
Ga direct naar de productinformatie
DC12V5A-4-DIN
- Switching Power Supply
- DC Output 12V 5A / 60W
- 4 outputs
- Input voltage 100 V ~ 240 V
- 33 (H) x 122 (D) x 83 (W) mm

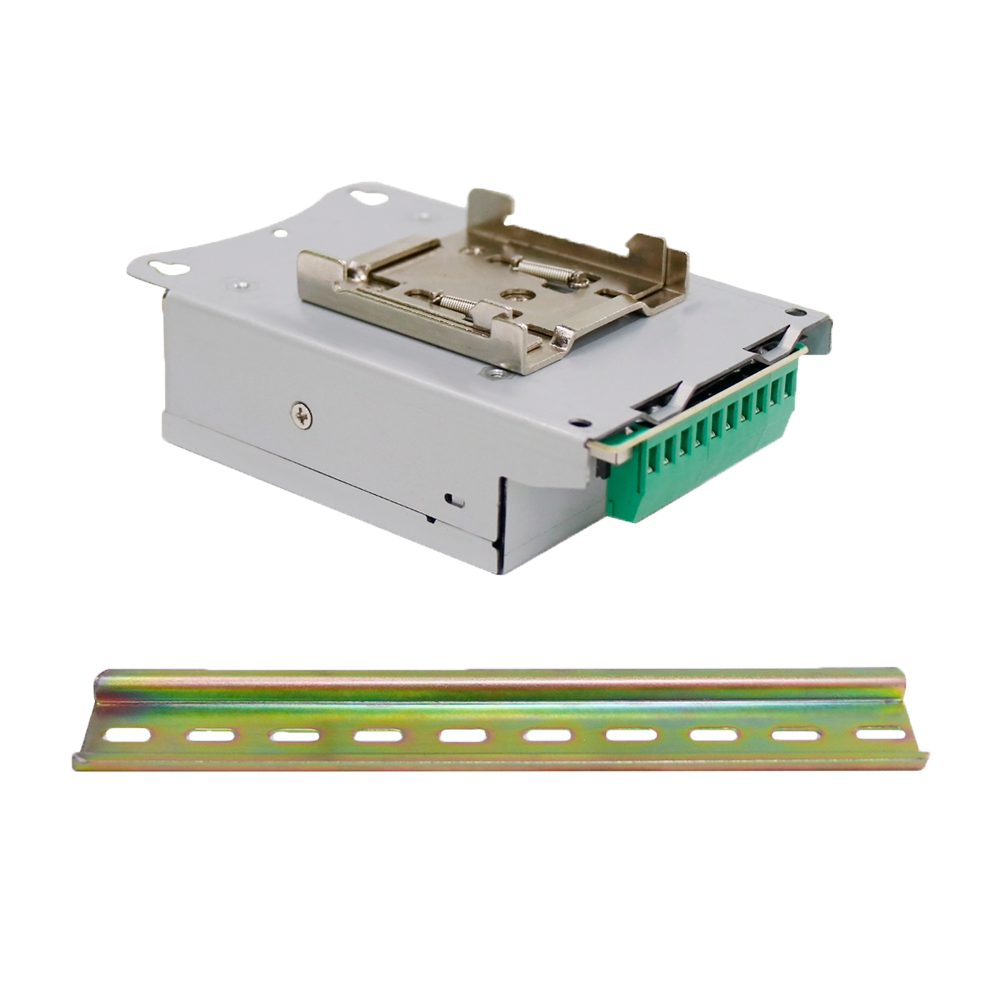

- DIN rail mount
- Switching power supply
- DIN rail format
- Input 100-240VAC 50/60Hz
- Adjustable output voltage
- 5 A / 60 W
- 4 outputs
- Efficiency >88%
- 33 (H) x 122 (D) x 83 (W) mm
Specifications
| Power supply input | AC 100~240 V (50/60Hz) |
| Power supply output | DC 12V 5A |
| Voltage range | Adjustable 12V / 13.5 V / 15 V (cable length compensation) |
| Maximum output power | 60 W |
| Number of outputs | 4 |
| Input current | 1,3 A |
| Loss of load | 1W |
| Conversion efficiency | >88% |
| Temp. Functioning | -20 ~45 °C |
| Dimensions | 33 (H) x 122 (D) x 83 (W) mm |

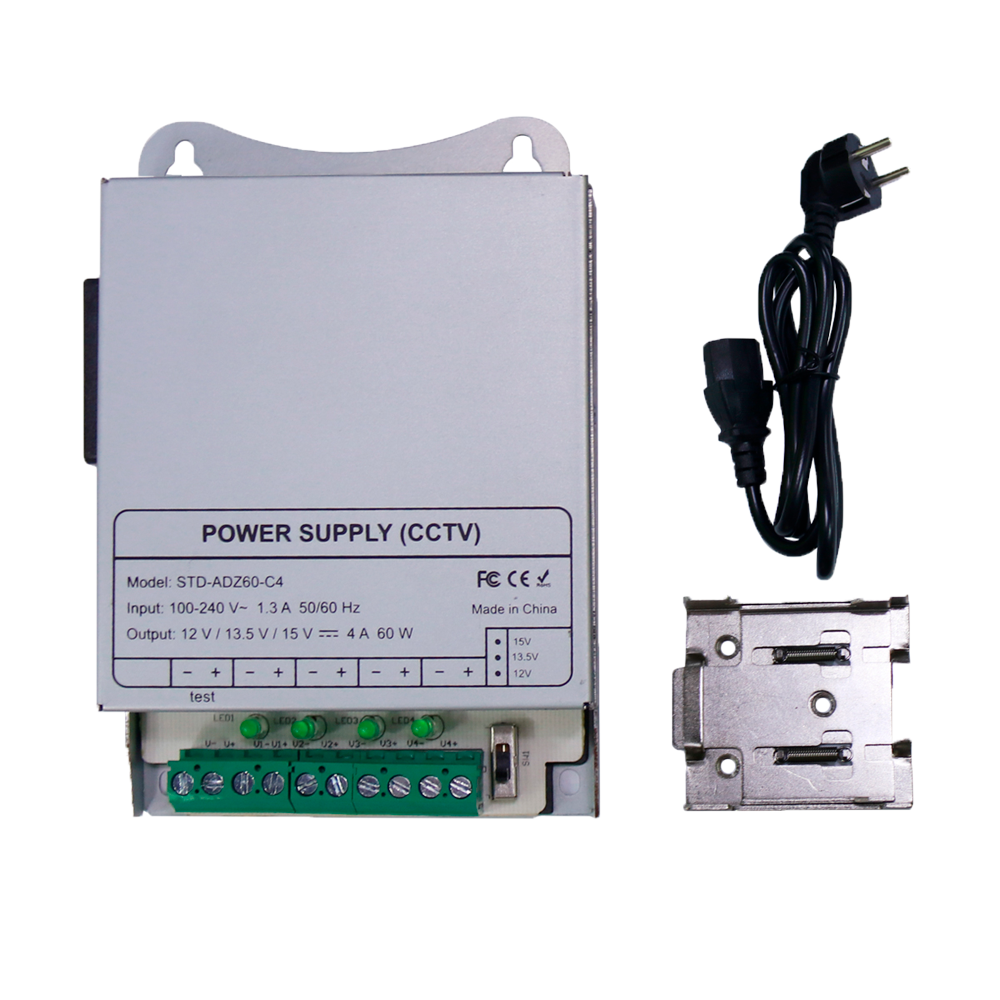

In the box
- Power supply
- AC cable
- Din rail support
