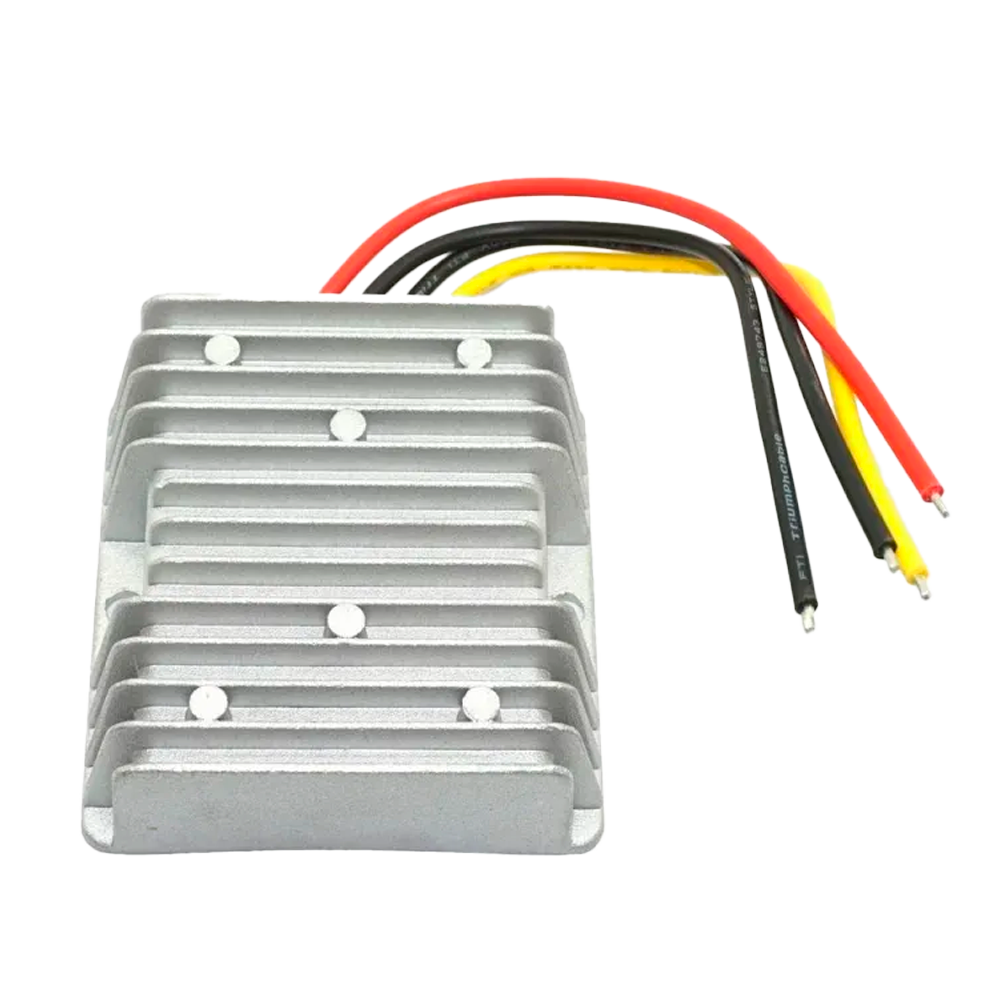

DC12V52V-CONVERTER-3A
Ga direct naar de productinformatie
DC12V52V-CONVERTER-3A
- Industrial DC/DC power supply
- DC input voltage 10 - 30V
- DC output voltage 52V
- Maximum output 3A / 156W
- Lightweight and small size
- IP68
- Industrial DC/DC power supply
- DC input 12V
- Output DC 52 V
- 3 A / 156 W
- 1 outputs
- Efficiency 94% average load
- Efficiency 92% full load
- IP68
Specifications
| Type | Industrial DC/DC power supply |
| Rated input voltage | 12 VDC |
| Input voltage range | 10 - 30 VDC |
| Efficiency | 94% half load 93% full load |
| Output Voltage | 52 VDC |
| Output current | 3A |
| Maximum output power | 156W 125% |
| Number of outputs | 1 |
| Voltage regulation | <1% |
| Regulación de carga | <2% |
| Ondulación a plena carga | <170mV |
| Corriente sin carga | <40mA |
| Temperatura de trabajo | -40 - 80ºC |
| Protecciones | Sobretensión, sobrecorriente y sobretemperatura |
| Dimensiones | 74 x 74 x 32 mm |
| Dimensiones packaging | 100 x 100 x 32 mm |
| Peso | 300 g |
| Peso packaging | 320 g |
| Índice de protección | IP68 |
| Refrigeración | Convección natural |
| Certificaciones | CE, RoHS |
In the box
- Convertidor DC/DC
