DC12V3A-DIN-UPS-P
Ga direct naar de productinformatie
DC12V3A-DIN-UPS-P
- Power supply with UPS function
- DC Output 12V 3A / 36W
- AC input voltage 100V ~ 240V 50Hz-60Hz
- 97 (D) x 55 (H) x 88 (W) mm

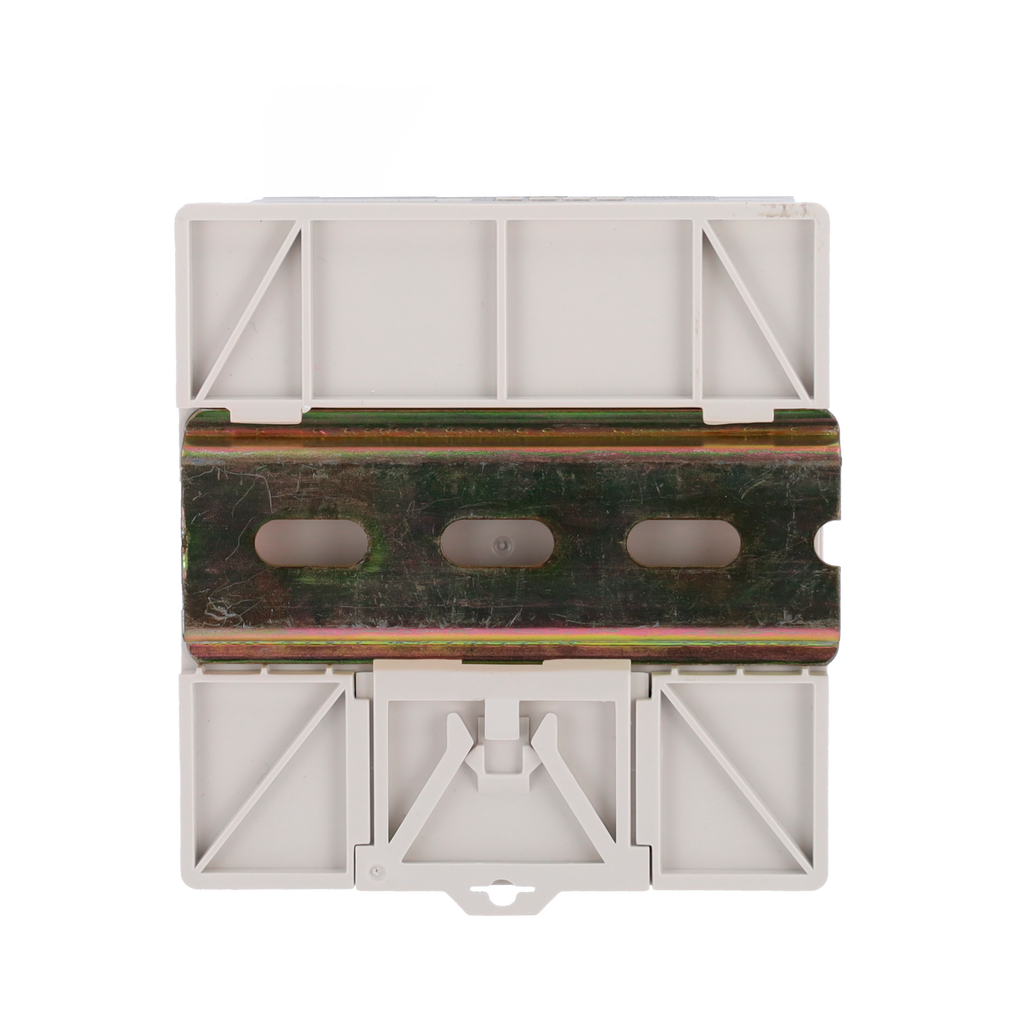

- DIN rail mount
- Protection: Overload/Overvoltage/Short circuit
- Power Supply with UPS function
- DIN rail format
- Output DC 12 V
- 3 A / 36 W
- Voltage Range 11 V ~ 13.5 V
- Efficiency >85%
- 97 (D) x 55 (H) x 88 (W) mm
Specifications
| Power supply input | AC 100~240 V (50/60Hz) |
| Power supply output | DC 12V 3A |
| Voltage range | Adjustable 11 V ~ 13.5 V |
| Maximum output power | 36W |
| Energy Efficiency | >85% |
| Operating temperature | -25 ~ 60 ºC |
| Humidity | 20 ~ 90% Non-condensing RH |
| Dimensions | 97 (D) x 55 (H) x 88 (W) mm |
| Weight | 270 g |
In the box
- Power supply
