DC12V10A-8-DIN
Ga direct naar de productinformatie
DC12V10A-8-DIN
- Switching Power Supply
- DC Output 12V 10A / 120W
- 8 outputs
- Input voltage 100 V ~ 240 V
- 33 (H) x 140 (D) x 108 (W) mm

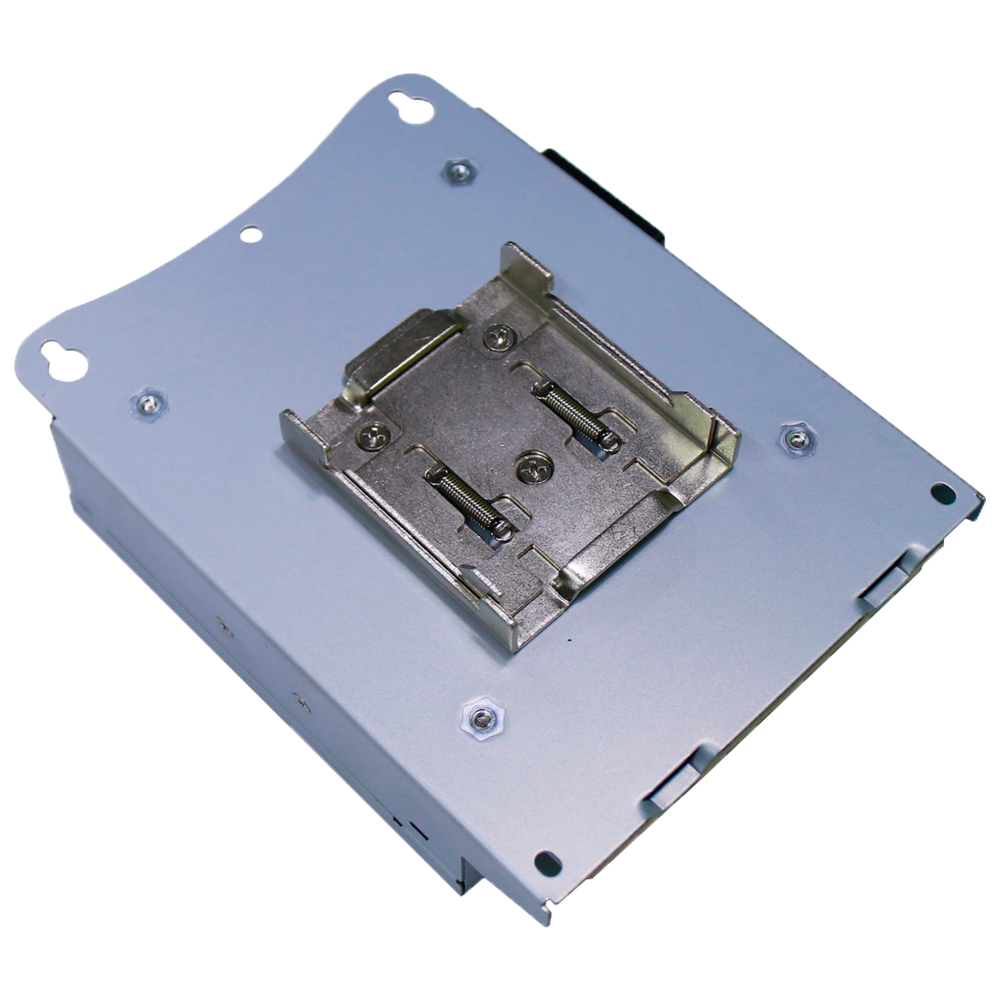

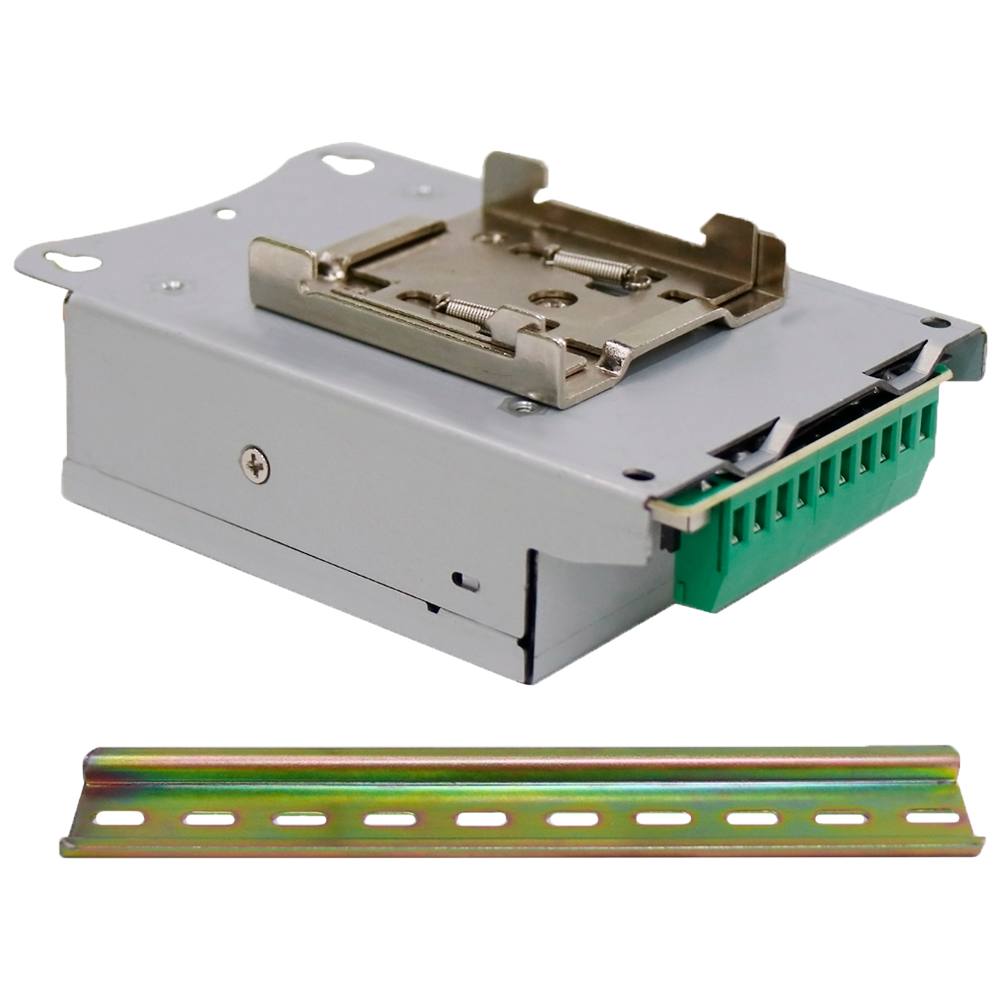

- DIN rail mount
- Switching power supply
- DIN rail format
- Input 100-240VAC 50/60Hz
- Adjustable output voltage
- 10 A / 120 W
- 8 outputs
- Efficiency >88%
- 33 (H) x 140 (D) x 108 (W) mm
Specifications
| Power supply input | AC 100~240 V (50/60Hz) |
| Power supply output | DC 12V 10A |
| Voltage range | Adjustable 12V / 13.5 V / 15 V (cable length compensation) |
| Maximum output power | 120W |
| Number of outputs | 8 |
| Input current | 2,6 A |
| Loss of load | 1W |
| Conversion efficiency | >88% |
| Temp. Functioning | -20 ~45 °C |
| Dimensions | 33 (H) x 140 (D) x 108 (W) mm |

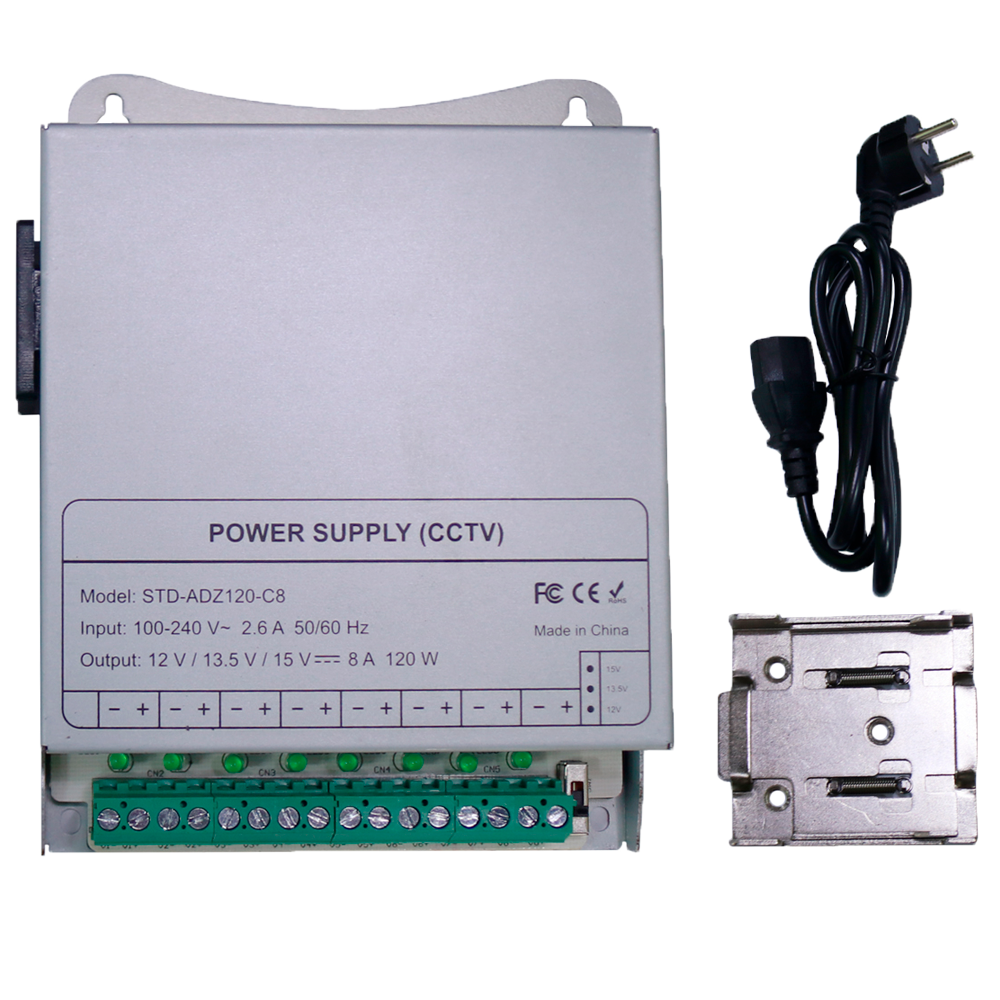

In the box
- Power supply
- AC cable
- Din rail support
