D925-3KE

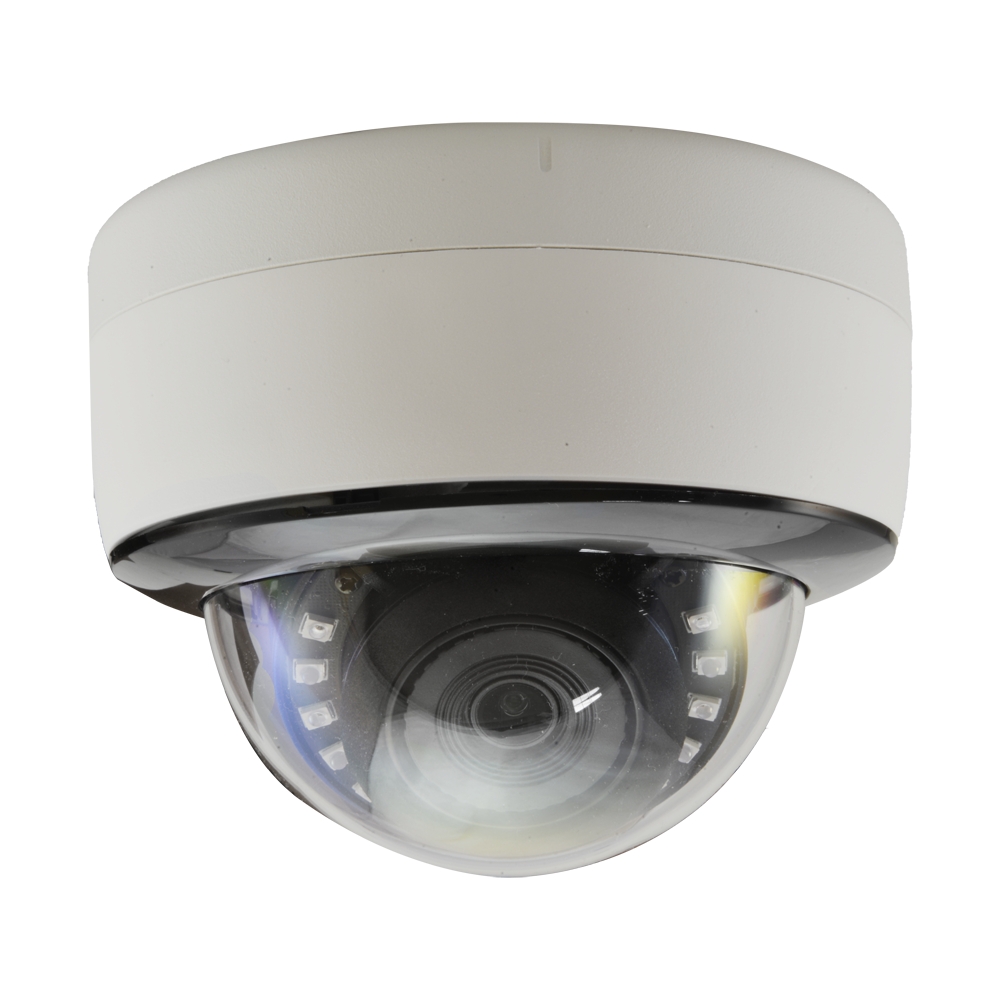

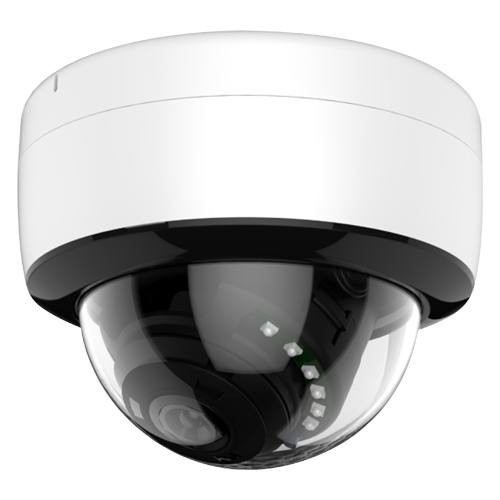

- Dome Camera ECO Range
- Output 4 in 1 / Resolution 3K (2880x1620)
- 1/3" CMOS 3K (5Mpx 16:9)
- 3.6 mm Lens

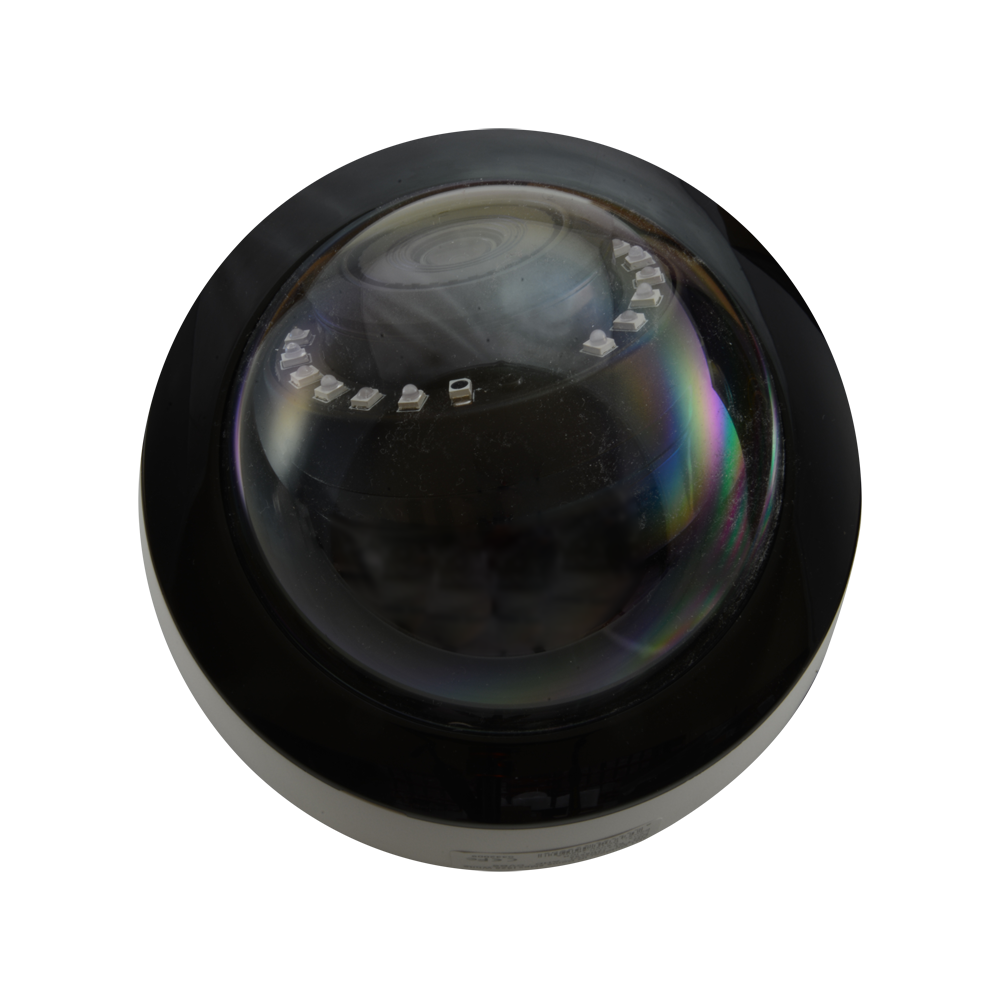

- IR Matrix LEDs IR Matrix LEDs Range 20 m
- Weatherproof IP66
- HDTVI, HDCVI, AHD and Analog Dome Camera
- ECO Range
- 1/3" CMOS 8 Mpx
- 8 Mpx (3264x2448)
- Output 4in1
- 3.6 mm Lens
- 0 Lux
- IR Matrix Range 20 m
- 2D DNR
- IR Cut
- Weatherproof IP66
Specifications
| Range | ECO |
| Image sensor | 3K 1/3" CMOS (5Mpx 16:9) |
| Maximum resolution | 3K (2880x1620) to 20 fps |
| Resolution | TVI: 3K (20 fps) / 4 Mpx (15~30 fps) / 1080p (25~30 [%VAR%] fps) CVI: 4 Mpx (25~30 fps) / 1080p (25~30 [%VAR%] fps) AHD: 4 Mpx (15~30 fps) / 1080p (25~30 [%VAR%] fps) CVBS: PAL/NTSC |
| Lens | 3.6 mm |
| Viewing Angle (FOV) | 60º (H) |
| Minimum illumination | 0.01 Lux @ (F1.2, AGC ON) |
| Infrared lighting | 0 Lux / IR Matrix LEDs (range 20 m) |
| Day / Night | Auto / Color / BW (black and white) |

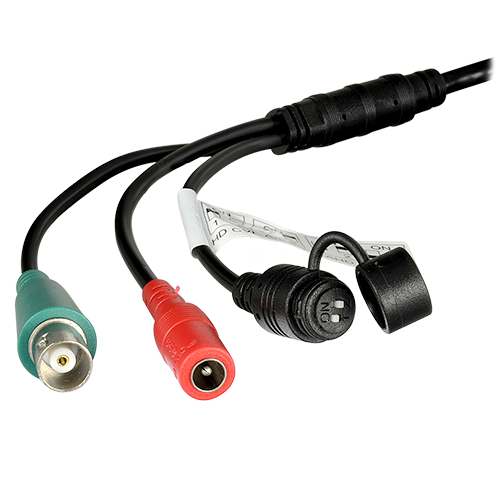

| Video output | 1 x BNC switchable between HDTVI / HDCVI / AHD / CVBS |
| Video output switching | Via Switch |
| Basic functions | OSD menu (remote) |
| Configurable OSD functions | DWDR, 2D DNR, AE, ATW, AWB, BLC, Mirror, Flip |
| Alarm | Does not have |
| Audio | Does not have |
| Power | DC 12 V / 400 mA, 4.8 W max. |
| Degree of protection | Weatherproof IP66 |
| Temp. operation | -10º C ~ +55º C |
| Material | Metal and plastic |
| Dimensions | 88 (H) x 112 (Ø) mm |

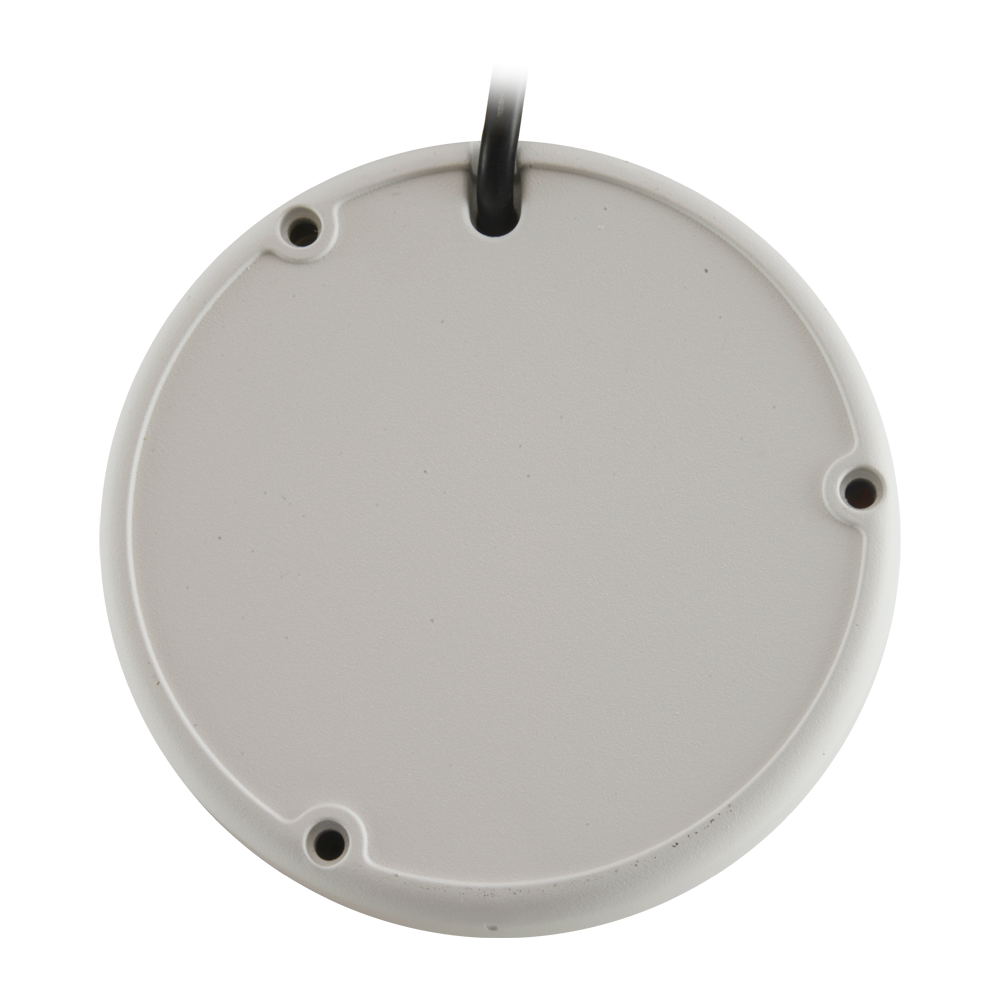

| Base diameter | 100 (Ø) mm / 3 screws |
| Weight | 380 g |
In the box
- Dome Camera 4N1
- Installation material
- User instructions
