CLH-200-M
- High power magnetic contact TSEC
- The latest technology in intrusion
- Magnasphere technology
- Magnetic anti-masking
- Anodized aluminum case
- Certificate Grade 3
- TSEC
- Magnetic detector for windows and doors
- Magnasphere Technology
- Magnetic anti-masking
- Anodized aluminum case
- Modular cable exit system
- Easy in-line or right-angled installations without any extra mounting plates
- Certificate Grade 3
Specifications
| Security grade | Grade 3 |
| Environmental class | Class 2 |
| Technology | Magnasphere |
| Power | High power |
| Maximum detection distance | On ferrous/non ferrous materials: 12/15 mm |
| Material | Anodized aluminium case, ABS skeleton |
| Cable | Modular cable exit system / 4 connectors |
| Magnet | Neodymium |
| Resistance to mechanical shocks | Up to 100G |
| Electrical parameters | 30 VDC max, 250 mA, 0.25W |
| Dimensions | 56 x 25 x 25 mm |
In the box
- Magnetic contact

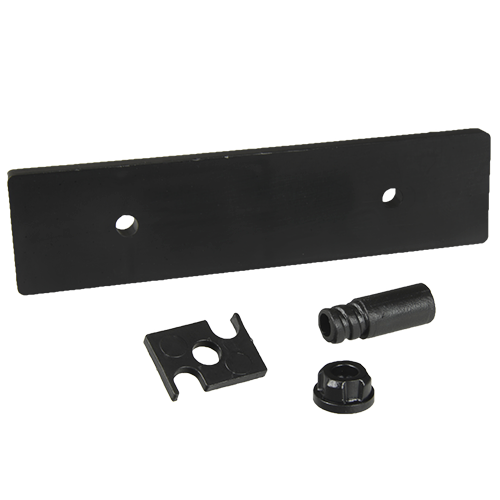

- Installation material
- User instructions
