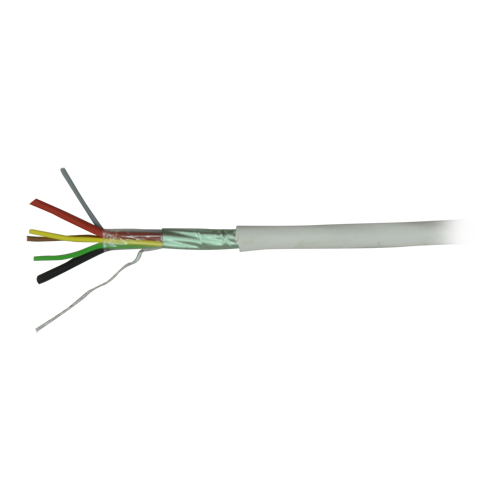

CA4P2-100-H
Ga direct naar de productinformatie
CA4P2-100-H
- 4 signal + 2 power supply conductors
- Flexible electrolytic Copper conductor
- CuSn Aluminium polyester screen + drain
- Bobbin of 100 meters
- CPR certificate Cca -1sb, a1, d2
- Low loss
- Bobbin of cable
- 100 m
- Alarm
- 4+2 conductors
- Inner conductor Flexible electrolytic copper 0,22 mm2
- Power supply conductor Flexible electrolytic copper 0,60 mm2
- PE isolation
- CuSn Aluminium polyester screen + drain
- Polyolefin cover FRLSHF 5.2 mm
- CPR certificate Cca -1sb, a1, d2
- Certified EN 50575
- Halogen free
Specifications
| Length | 100 m |
| Interior conductor | Flexible electrolytic copper AWG24 0,22 mm2 |
| Power supply wire | Flexible electrolytic copper AWG19 0,60 mm2 |
| Isolation | Polyethylene |
| Formation of the wires | Twisted |
| Screen | Aluminum polyester + CuSn drain |
| External cover | Polyolefin FRLSHF |
| Number of conductors | 4 signal + 2 power supply |
| Conductivity | <10μS/mm |
| Resistance | 106 Ohm/km signal / 27 Ohm/km power |
| Temp. operation | 0º C ~ 70º C |
| Certification | CPR (Cca -1sb, a1, d2), UNE EN 50575, UNE EN 60332-1-2,50399,61034-2, UNE EN 60754-2 |
In the box
- Bobbin of cable
