CA4-500-H
Ga direct naar de productinformatie
CA4-500-H

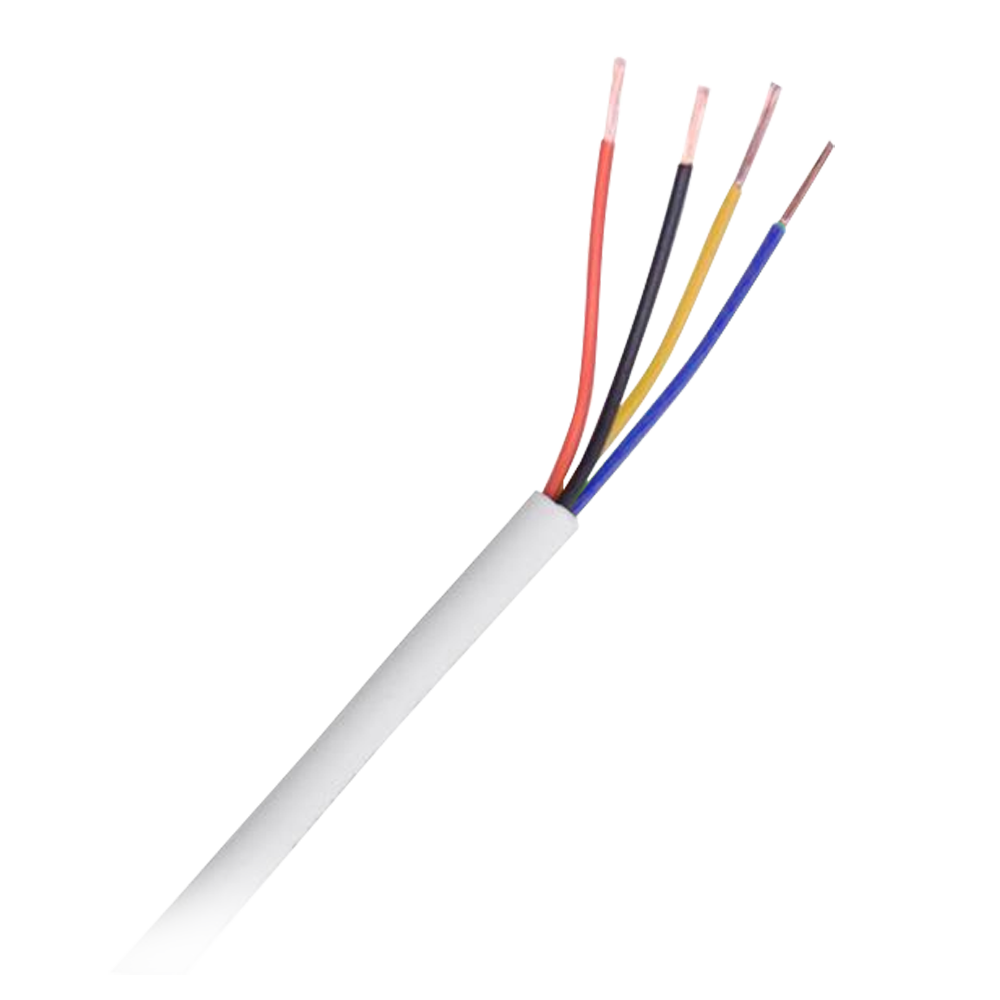

- 4 conductors
- Conductor Flexible electrolytic copper Class 5
- CuSn Aluminium polyester screen + drain
- Bobbin of 500 meters
- CPR Certificate: B2ca -s1a, d0, a1
- Low loss

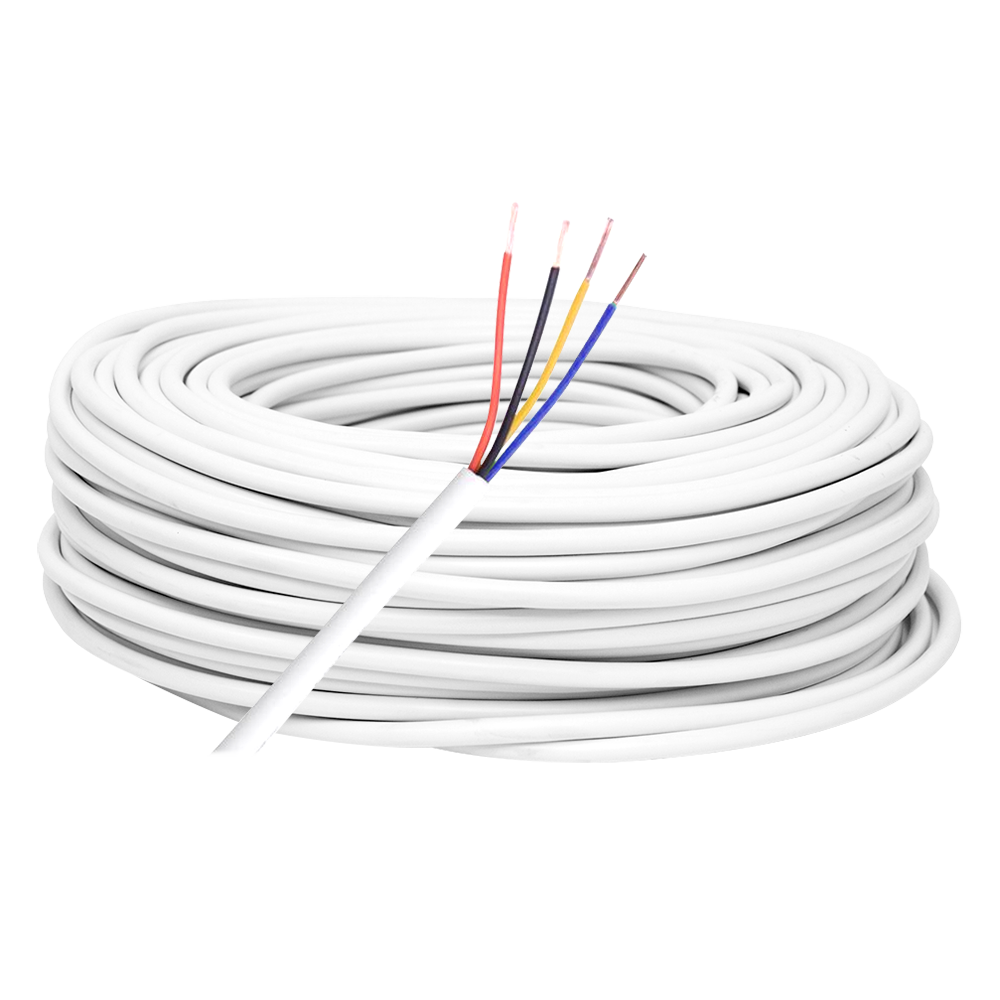

- Bobbin of cable
- 100 m
- Alarm
- 4 conductors
- Inner conductor Class 5 Flexible electrolytic copper 0,22 mm2
- PE isolation
- Screen Aluminium polyester with 96% coverage+CuSn drainage
- Polyolefin cover FRLSHF 6.1 mm
- Halogen free
- CPR certificate Cca -1sb, a1, d2
Specifications
| Length | 100 m |
| Interior conductor | Flexible electrolytic copper AWG24 0,22 mm2 Class 5 |
| Isolation | Polyethylene |
| Formation of the wires | Twisted |
| Screen | Aluminium polyester with 96% coating+CuSn drainage |
| External cover | Polyolefin LSH0 |
| Number of conductors | 4 signal |
| Conductivity | <10μS/mm |
| Resistance | 106 Ohm/km signal |
| Temp. operation | 0º C ~ 70º C |
| Certification | CPR (B2ca -s1a, d0, a1), UNE EN 50575/A1:2016, UNE EN 60332-1-2, UNE EN 50399:2012, UNE EN 61034-2, UNE EN 60754-2 |
| Colour | White |
In the box
- Bobbin of cable
