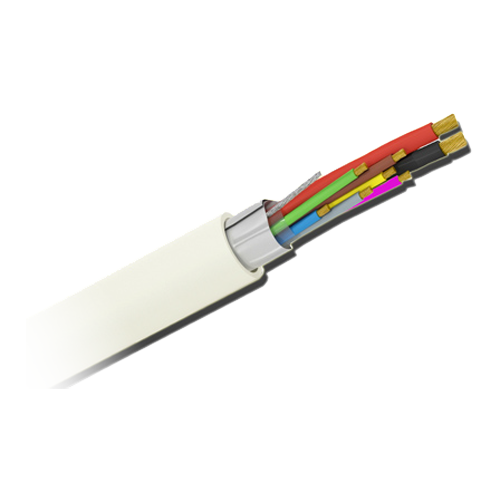

CA12-500-H
Ga direct naar de productinformatie
CA12-500-H
- 12 conductors
- Conductor Flexible electrolytic copper Class 5
- CuSn Aluminium polyester screen + drain
- Bobbin of 500 meters
- CPR Certificate: B2ca -s1a, d0, a1
- Low loss
- Bobbin of cable
- 500 m
- Alarm
- 12 conductors
- Inner conductor Class 5 Flexible electrolytic copper 0,22 mm2
- PE isolation
- Screen Aluminium polyester with 96% coverage+CuSn drainage
- Polyolefin Sheath LHS0
- Halogen free
- CPR Certificate: B2ca -s1a, d0, a1
Specifications
| Length | 1500 m |
| Interior conductor | Flexible electrolytic copper AWG24 0,22 mm2 Class 5 |
| Isolation | Polyethylene |
| Formation of the wires | Twisted |
| Screen | Aluminium polyester with 96% coating+CuSn drainage |
| External cover | Polyolefin LHS0 |
| Number of conductors | 12 signal |
| Conductivity |
In the box
- Bobbin of cable
