BODYTEMP-256-USB

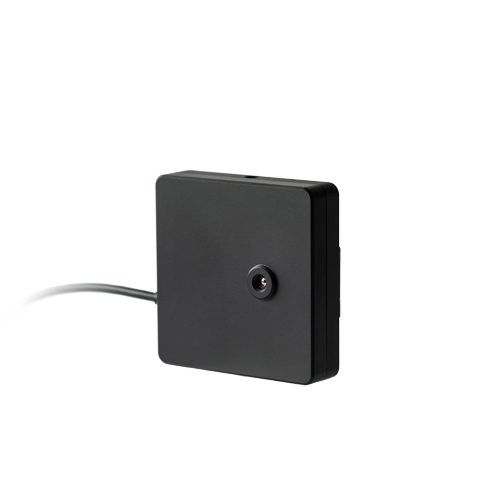

- Thermographic camera with PC monitoring
- Real-time body temperature measurement
- Thermal resolution 256x192 | Accuracy ±0.5ºC
- Thermal sensitivity ≤50mK
- Temperature measurement on faces at up to 2 m of distance
- Monitoring and notification in PC software
- Thermographic Camera
- Thermal resolution 256x192
- Accuracy ±0.5ºC
- Face detection: To filter out any warm objects in the scene
- Temperature measuring range 30º ~ 45ºC
- Detection of up to 4 people
- Temperature measurement at up to 2m distance
- Connection via USB-A or USB-C PC software
- High temperature sound alarm
- Thermal image capture in case of high temperature
- Plug&Play
- Ideal for use as a stand-alone system in small shops
Specifications
| Thermal sensor | 256x192 Vox |
| Field of view (thermal) | 56º x 42º |
| Accuracy | ± 0.5ºC |
| Thermal sensitivity (NETD) | ≤ 50mK |
| Spectral range | 12um |
| Intelligent functions | Body temperature measurement |
| Temperature measurement | Up to 2m distance (4 faces at a time) |
| Measurement Range | 30ºC ~ 45ºC |
| Image Modes | Thermal |
| Image captures | Automatic |
| Internal memory | Not available (PC storage only) |
| Display | PC Software (Windows PC or Tablet NOT INCLUDED) |
| Communication | USB-A / USB Type C (for battery charging and connection to PC for monitoring) |
| PC Software | Live Image, Event History with Image Capture, Sound Alarm in case of high temperature |
| Temp. operation | 2º C ~ + 50º C |
| Degree of protection | Interior use |
| Dimensions | 14.2(D) x 80(W) x 80(An)mm |
| Weight | 450 g |
In the box
- Thermal camera (Tablet not included)
- User instructions
- USB to USB-Type C Adapter

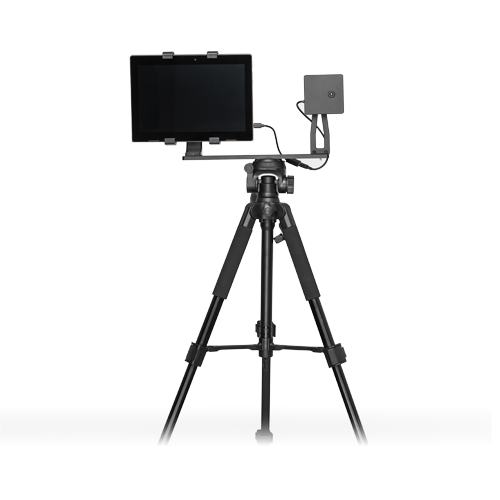

- Installation tripod
