BATT-NP17-12
Ga direct naar de productinformatie
BATT-NP17-12

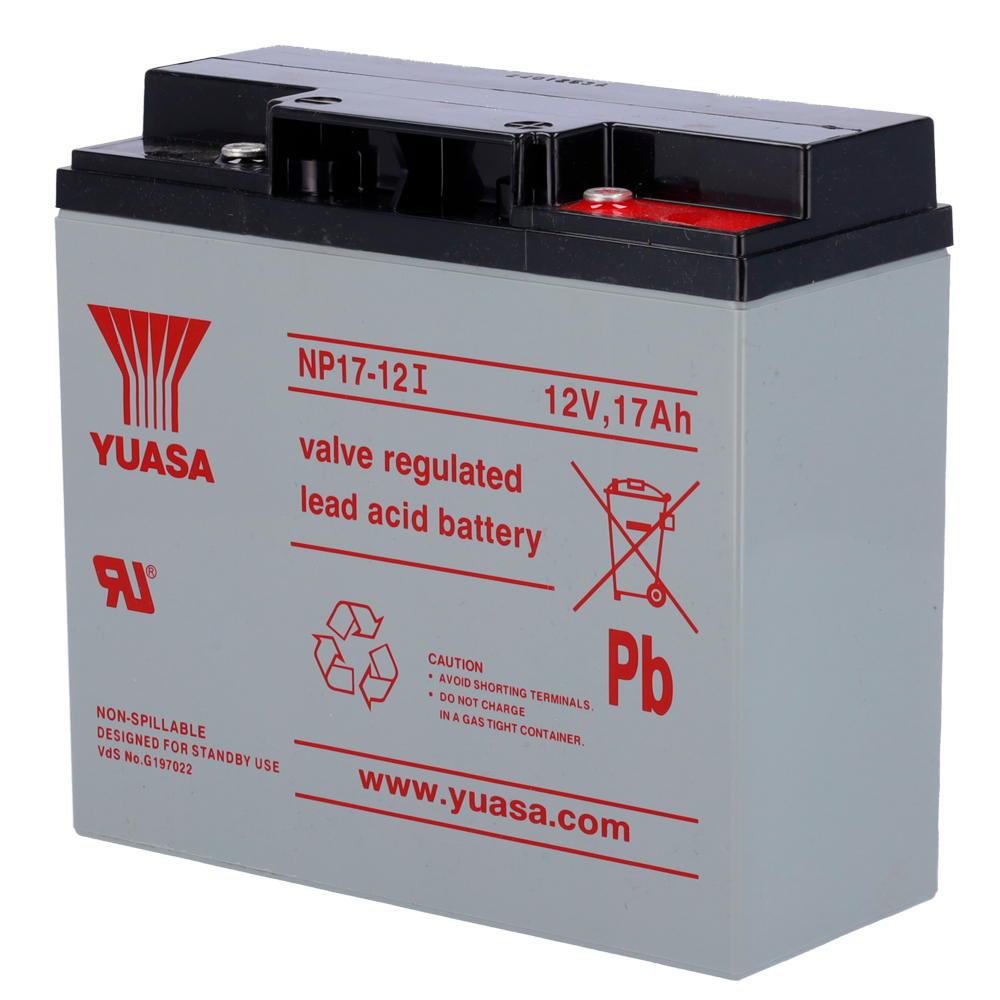

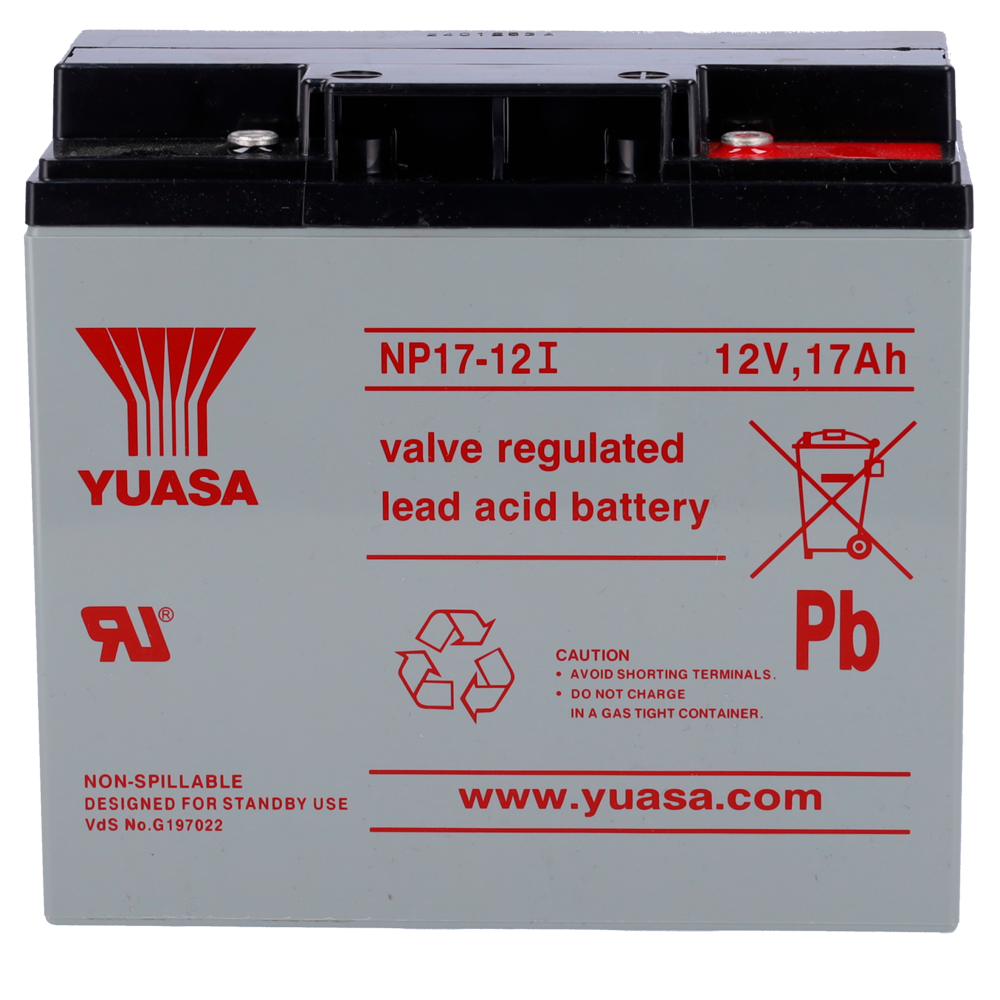

- Yuasa NP17-12I
- Rechargeable battery
- AGM lead-acid technology
- 17 Ah Capacity / 12 V
- 167 x 76 x 181 / 6.1 Kg
- For backup or direct use
- Lead-acid battery AGM
- Yuasa model NP17-12I
- Nominal 12 voltage V
- Nominal capacity 17 Ah
- For backup or direct use
- Dimensions 167 (H) x 76 (D) x 181(An) mm
- Weight 6.1 Kg
Specifications
| Brand | Yuasa |
| Model | BATT-NP17-12I |
| Nominal voltage | 12 V |
| Nominal capacity | 17 Ah (10-hr capacity 1.75V/celda to 20°C (15.7 Ah) |
| Charging voltage | Floating charge at 20°C (V)/Block :13.65 (±1%) Floating charge at 20°C (V)/Cell :2.275 (±1%) Voltage at cyclic load at 20°C (V)/Block: 14.5 (±3%) Voltage at cyclic load 20°C (V)/Cell :2.42 (±3%) |
| Maximum load current | 510 TO (1 s), 48 TO (1 min) |
| Internal resistance | 34.47 mΩ |
| Terminal type | M5 (2.45 Nm) |
| Temp. Functioning | -20°C to +60°C |
| Temp,Load | -15°C to +50°C |
| Temp. Discharge | -20°C to +60°C |
| Dimensions | 167 (H) x 76 (D) x 181( W) mm |
| Weight | 6.1 Kg |
In the box
- Backup battery
