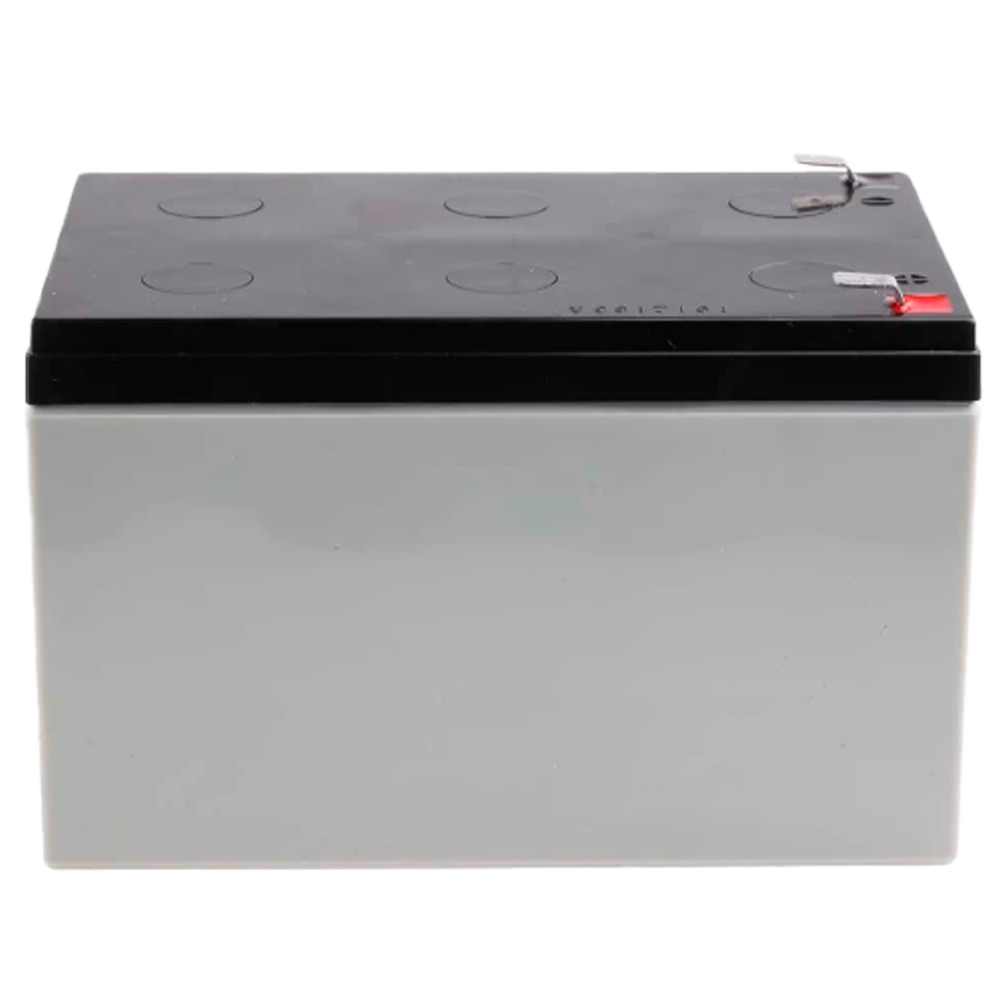

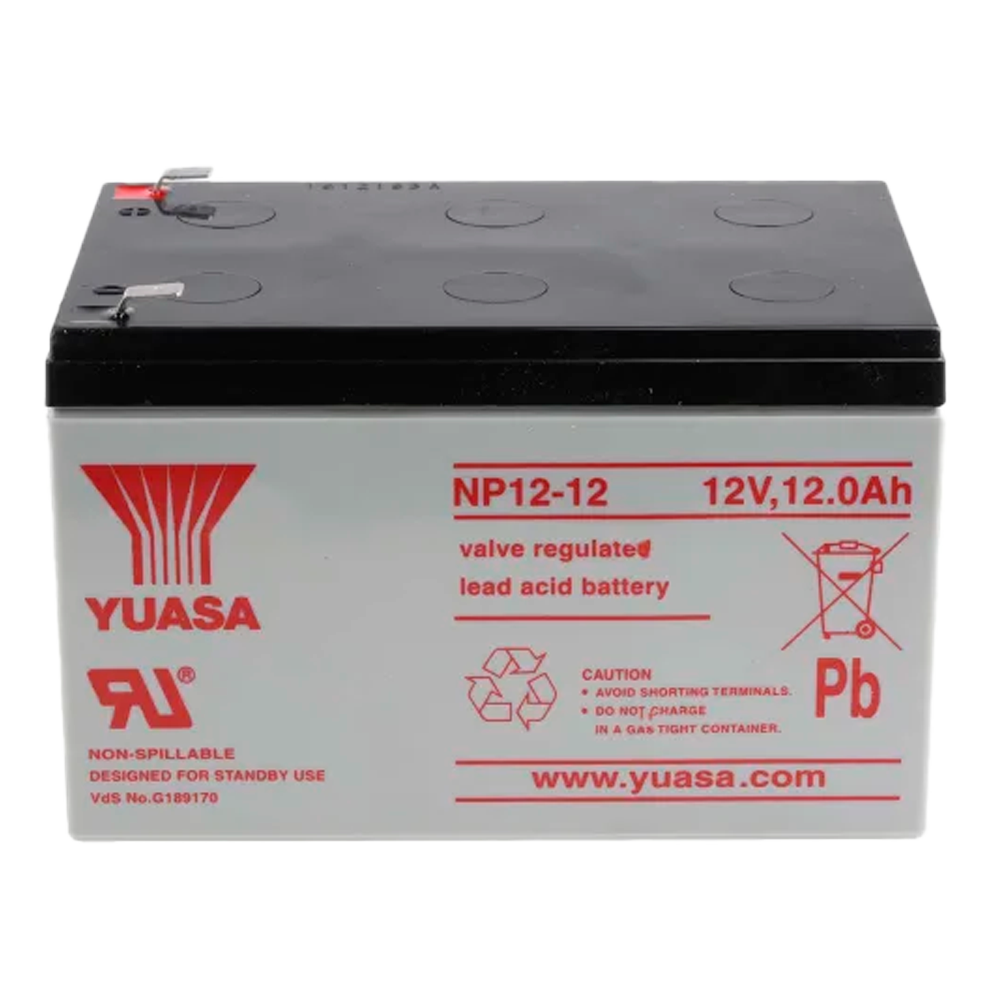

BATT-NP12-12
Ga direct naar de productinformatie
BATT-NP12-12
- Yusa NP12-12
- Rechargeable battery
- AGM lead-acid technology
- 12 Ah Capacity / 12 V
- 98 x 151 x 97.5 / 4050 g
- For backup or direct use
- Lead-acid battery AGM
- Yuasa model NP12-12
- Nominal 12 voltage V
- Nominal capacity 12 Ah
- For backup or direct use
- Dimensions 98 (H) x 151 (W) x 97.5 (D) mm
- 4050 g Weight
Specifications
| Brand | Yuasa |
| Model | NP12-12 |
| Nominal voltage | 12 V |
| Nominal capacity | 12.0 Ah (20-hr capacity 1.75V/celda at 20°C (Ah) |
| Charging voltage | Floating charge at 20°C (V)/Block :13.65 (±1%) Floating charge at 20°C (V)/Cell :2.275 (±1%)Voltaje a cyclic load at 20°C (V)/Block: 14.5 (±3%) Voltage at cyclic load 20°C (V)/Cell :2.42 (±3%) |
| Maximum load current | 360 A (1 s) 75 (1 min) |
| Internal resistance | 44.39 mΩ |
| Terminal type | Faston 6.35 |
| Temp. Functioning | -20°C to +60°C |
| Temp,Load | -15°C to +50°C |
| Temp. Discharge | -20°C to +60°C |
| Dimensions | 98 (H) x 151 (W) x 97.5 (D) mm |
| Weight | 4050 g |
In the box
- Backup battery
