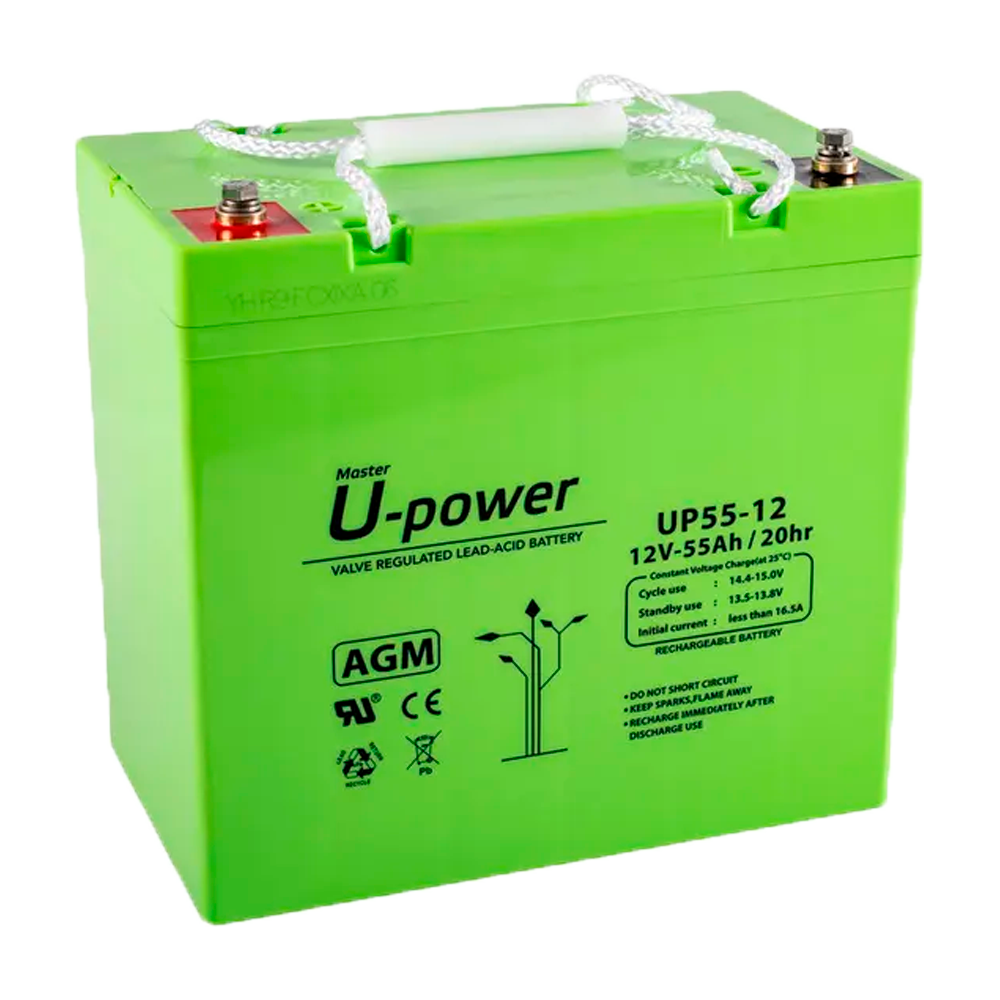

BATT-1255-U
Ga direct naar de productinformatie
BATT-1255-U
- Upower
- Rechargeable battery
- AGM lead-acid technology
- Voltage 12 V
- Capacity 55 Ah
- 210 x 228 x 137 mm / 17700 g
- For backup or direct use
- Lead-acid battery AGM
- Nominal 12 voltage V
- Nominal capacity 55 Ah
- Initial load current < 16.5 A
- Use at stand-by 13.5~13.8 V
- Cyclic use 14.4~15 V
- Dimensions 210 (H) x 228 (W) x 137 (D) mm
Specifications
| Brand | Upower |
| Nominal voltage | 12 V |
| Nominal capacity | 55 Ah (20HR) |
| Standby use | 13.5 ~ 13.8 V |
| Cyclic use | 14.4 ~ 15.0 V |
| Initial intensity | < 16.5 A |
| Internal resistance | 7.5MΩ |
| Terminal | T6 (M6) |
| Temp. Functioning | Discharge: -15 ~ 50ºC Charge: 0 ~ 40ºC Storage: -15 ~ 40ºC |
| Dimensions | 210 (H) x 228 (W) x 137 (D) mm |
| Weight | 17700 g |
In the box
- Backup battery
