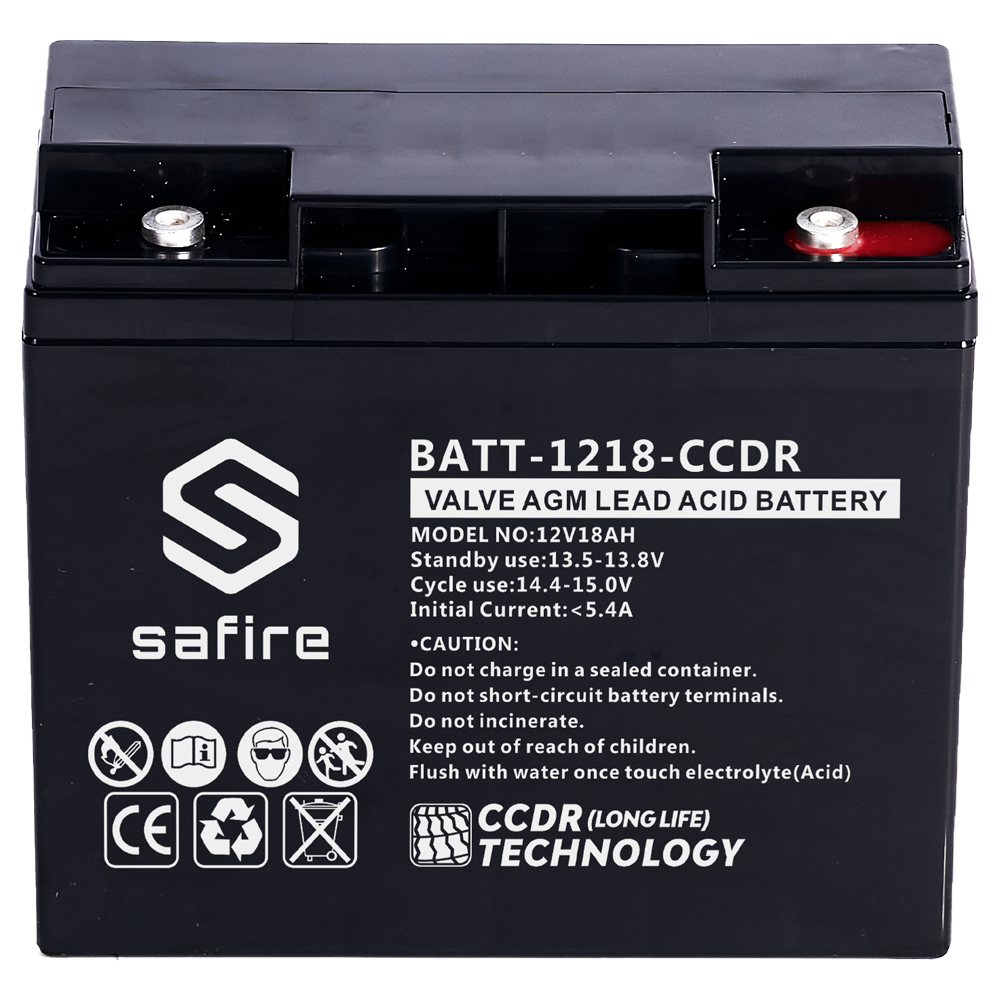

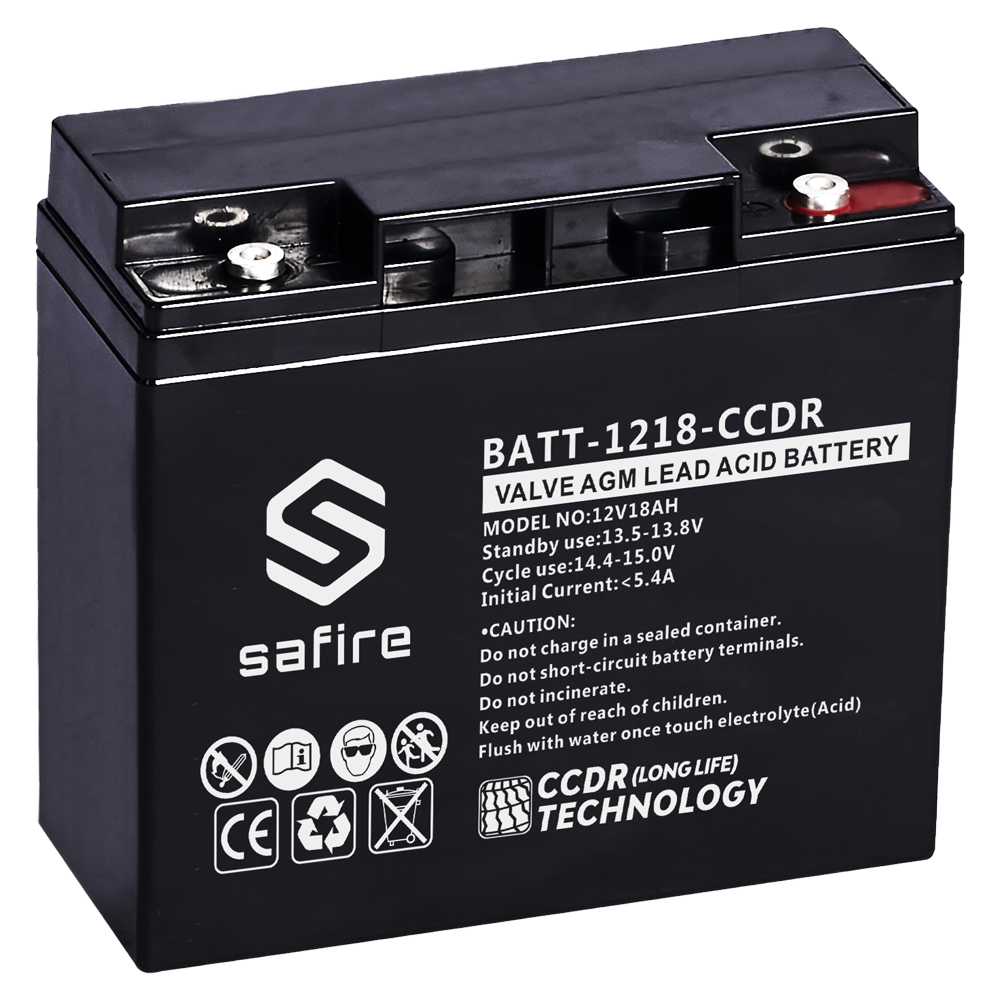

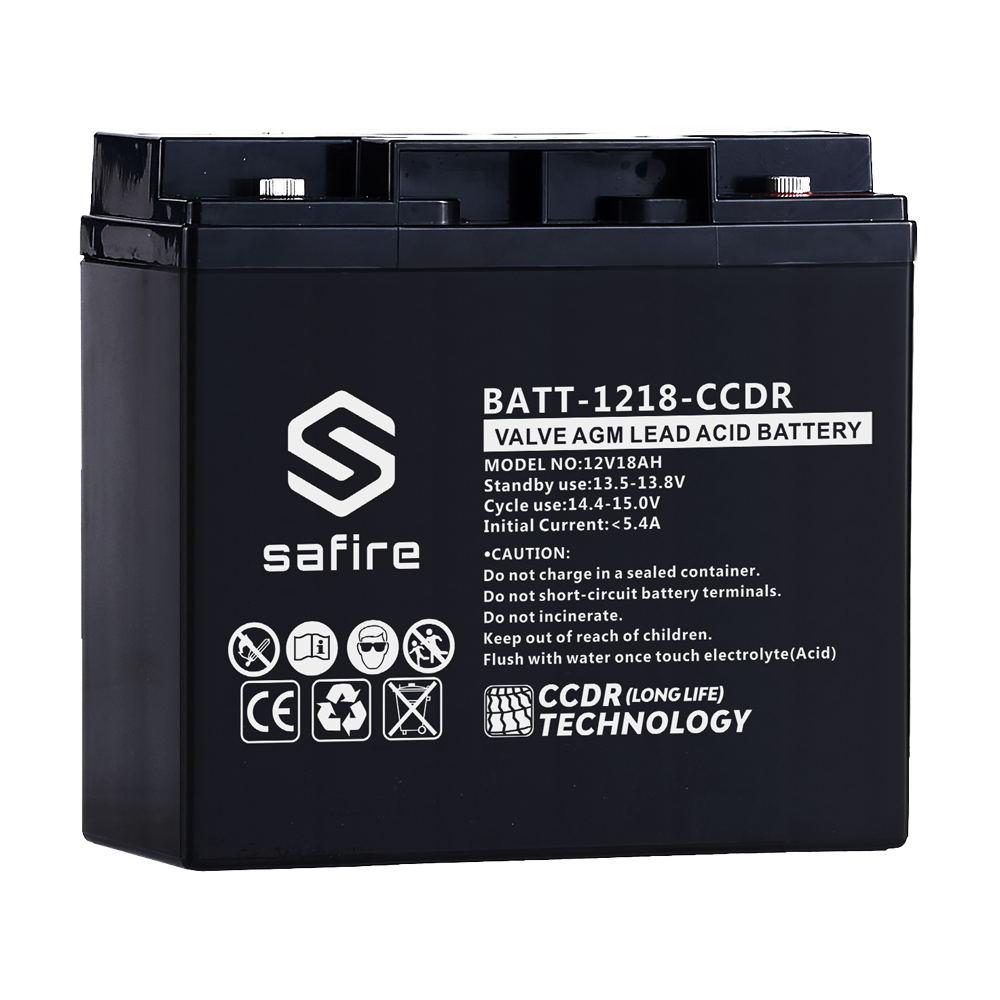

BATT-1218-CCDR
BATT-1218-CCDR
- Rechargeable battery
- AGM lead-acid technology - Central Commission for the Regulation of the Distribution of Medicines
- Voltage 12V
- Capacity 18Ah
- 167 x 77 x 182 mm / 4.75 Kg
- For backup or direct use
CCDR (Continuous Casting Direct Rolling) technology produces slabs with a denser and more uniform molecular structure compared to traditional slabs. These plates offer greater resistance to acid corrosion, improved structural stability, and excellent electrical uniformity—key factors in extending the product’s service life and ensuring consistent performance throughout its entire service cycle.
These batteries are known for their long service life, high reliability, and stability, making them a monoblock battery particularly well-suited for backup and continuous-use applications.
Among the most suitable applications are alarm and security systems, small- and medium-power UPS systems, emergency lighting, fire suppression systems, instrumentation, measurement, and telecommunications equipment, as well as other power backup applications.
- AGM Lead-Acid Battery
- CCDR Technology
- Rated voltage 12V
- Nominal capacity 18Ah
- Maximum load current 5.4A
- Maximum discharge current 270A
- Open-circuit voltage 13.5-13.8V
- Cyclic operating voltage 14.4-15V
- Dimensions 167 (H) x 77 (W) x 182 (D) mm
- Weight 4.75Kg
Specifications
| Brand | Safire |
| Nominal voltage | 12V (6 celdas) |
| Nominal capacity | 18 Ah (20h) |
| Dimensions | 167 (H) x 77 (W) x 182 (D) mm |
| Weight | 4.75 Kg |
| Internal resistance | 15.7mΩ |
| Maximum charge current | 5.4A |
| Maximum discharge current | 270A (5s) |
| Short-circuit current | 600A |
| Discharge temperature range | -15 - 50ºC |
| Charging temperature range | -15 - 40ºC |
| Storage temperature range | -15 - 40ºC |
| Float voltage range | 13.5 - 13.8V |
| Equalization voltage range | 13.1 - 14.4V |
| Operating voltage range (cyclic) | 14.4 - 15.0V |
| Connection type | Faston T1 |
In the box
- Backup battery
