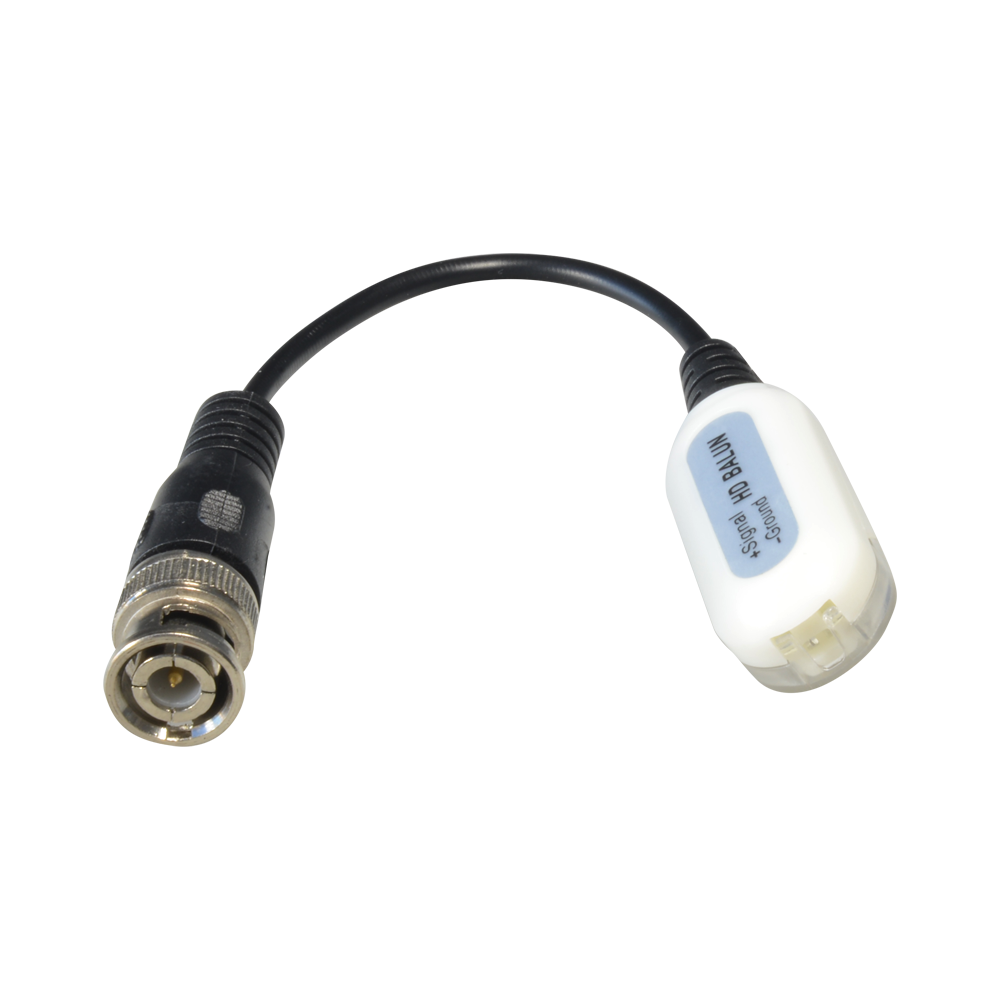

BA609-HAC
Ga direct naar de productinformatie
BA609-HAC
- SAFIRE UTP passive transceiver
- Optimized for HDTVI / HDCVI / AHD
- 1 video channel
- Passive, connector of 2 pins
- Range: 200 ~ 400 m
- 2 units | Quick connection
- Safire
- Balun (transceiver)
- Optimized for HD video: HDTVI / HDCVI / AHD
- 1 channel
- Passive
- BNC/UTP 2 pins
- Video (no audio)
- Maximum reach HDTVI 250/250/100/100 m (720p/1080p/4 Mpx/4 K), HDCVI 400/250/200/200 m (720p/1080p/4 Mpx/4K) and AHD 350/200/200 m (720p/1080p/4 Mpx)

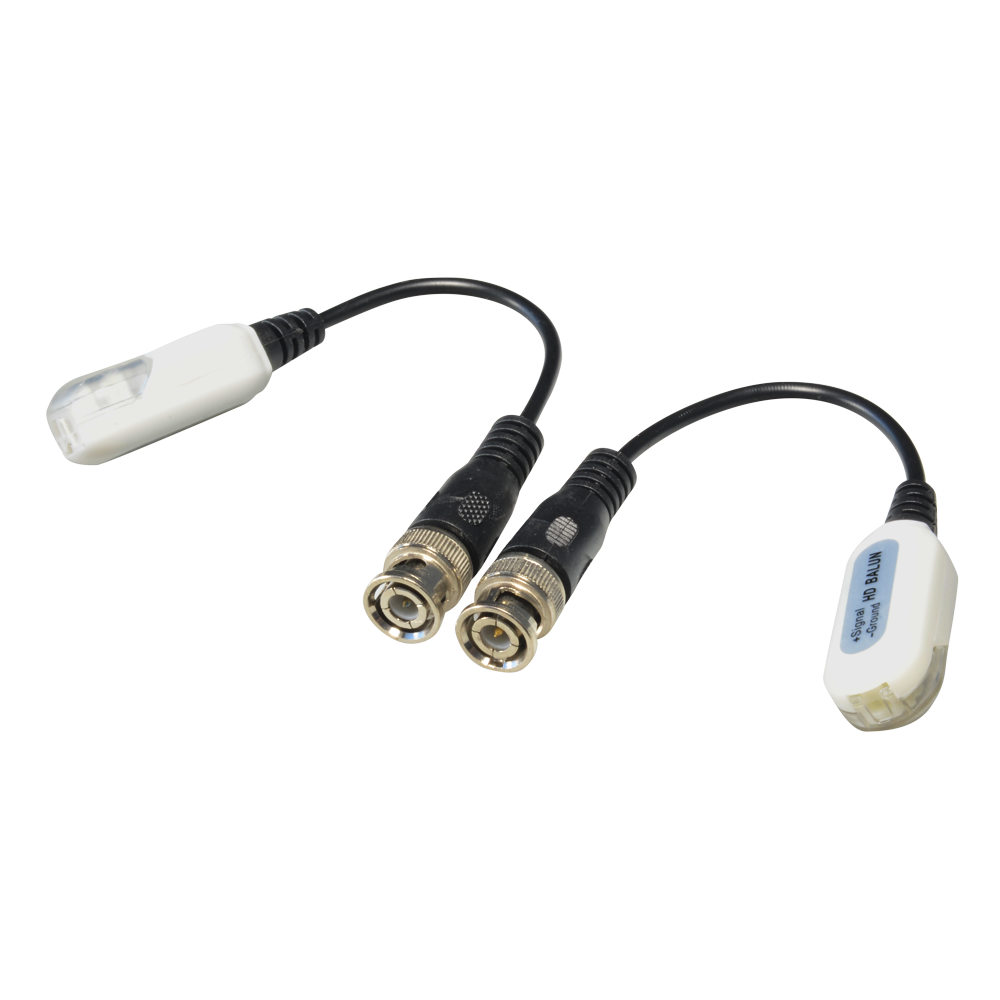

- 2 units (transmitter and receiver)
- Quick connection
Specifications
| Brand | Safire |
| Number of channels | 1 channel |
| Power | Not required (Passive) |
| Video Input/Output | BNC (male) |
| Transmission distance | HDTVI 250/250/100/100m (720p/1080p/4 Mpx/4K) HDCVI 400/250/200/200m (720p/1080p/4 Mpx/4K) AHD 350/200/200m (720p/1080p/4 MP) |
| Twisted pair connector | Connector with 2 pins |
| Crosstalk | 60 dB |
| Input impedance | 75 Ohm |
| Output Impedance | 100 Ohm |
| Cable category | UTP category 5/5E/6 |
In the box
- Pair of passive HD transceivers
