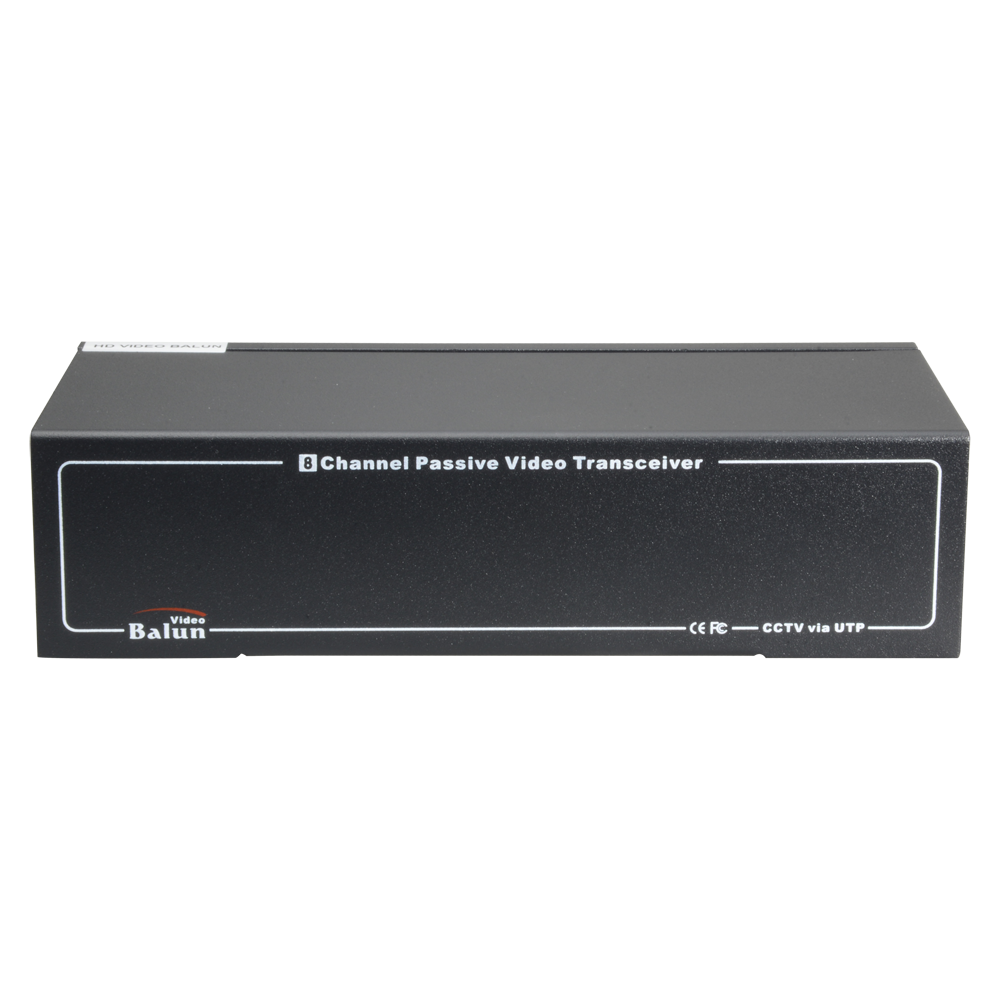

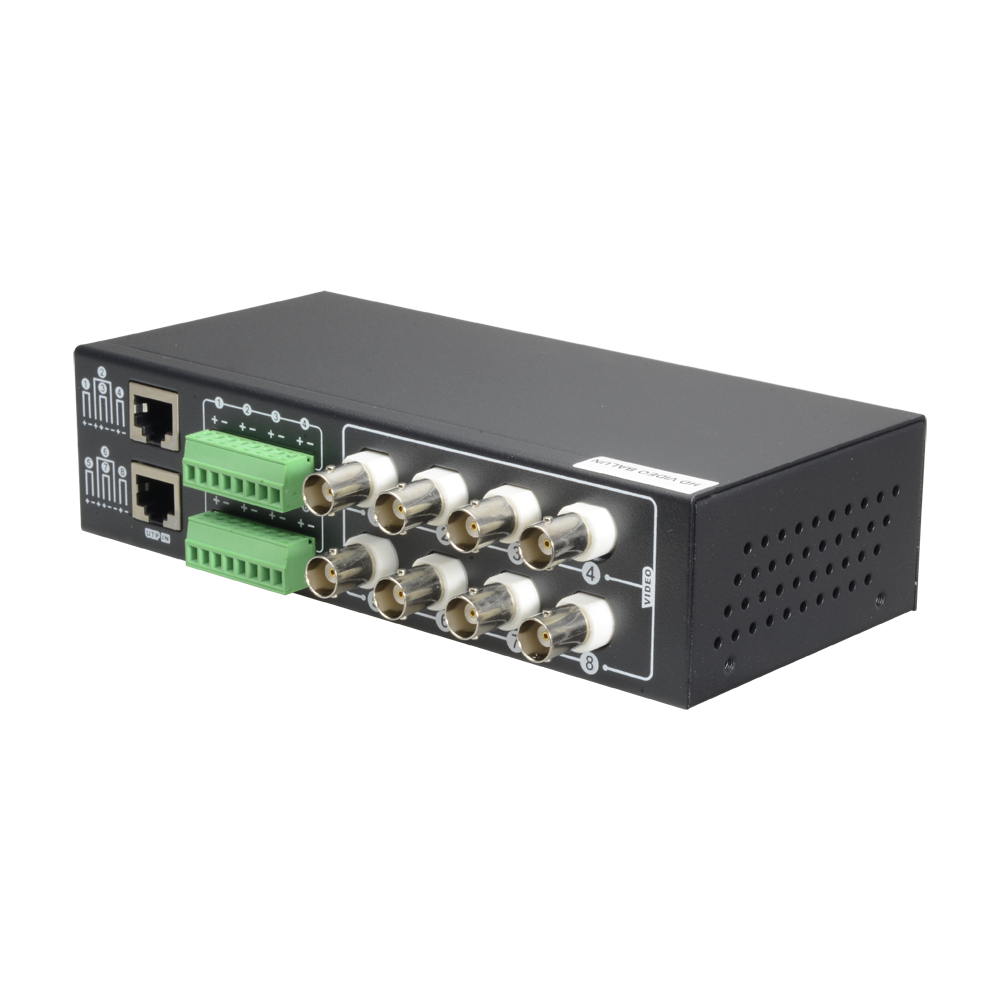

BA608P-HD
Ga direct naar de productinformatie
BA608P-HD
- Video Balun 4N1 (HDTVI, HDCVI, AHD y CVBS)
- 8 passive channels
- Includes 8 BA612P-HAC
- BNC and RJ45 connection
- Range: 180 ~ 440 m
- Rack mount possibility 19"
- Balun (transceiver)
- Optimized for HD video: HDTVI / HDCVI / AHD and CVBS
- 8 channels
- Passive
- BNC/RJ45
- Video
- Maximum range 440 m
- Includes 8 individual baluns BA612P-HAC to the side of the camera
Specifications

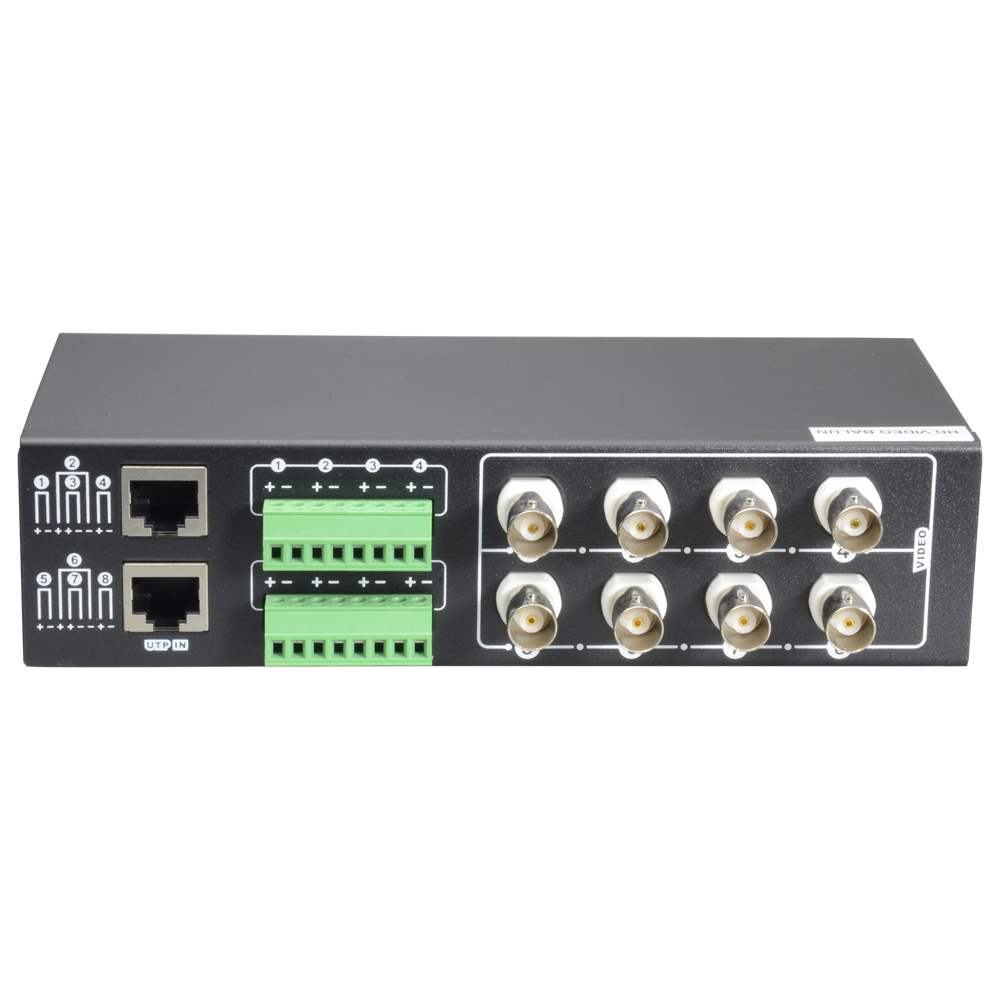

| Input Tx / Output Rx | 8 female BNC connectors for video |
| Output Tx / Input Rx | 2 connectors RJ45 or 8 clamp connectors for UTP cable CAT5 |
| Bandwidth | DC up to 42 MHz |
| Video format | NTSC, PAL, SECAM |
| Impedance | BNC 75 Ω, UTP 100 Ω |
| Distance | HDTVI 190/190/180 m (720p/1080p/5Mpx), HDCVI 440/230/230 m (720p/1080p/4Mpx) and AHD 320/250/200 m (720p/1080p/5Mpx) |
| Power | Passive (not required) |
| Temp. Functioning | -20 ºC ~ 70º C |
| Dimensions | 45 (H) x 180 (W) x 85 (D) mm |
| Weight | 580 g |
In the box
- Balun 8 channels
- Installation material
- 8 baluns BA612P-HAC
- Instructions
