AP-1ASKS-MARINE
- Hochiki
- Marina Line
- Analog control system 1 loop
- 127 ESP devices per loop
- 32 programmable zones
- EN54-2, EN54-4 y MED

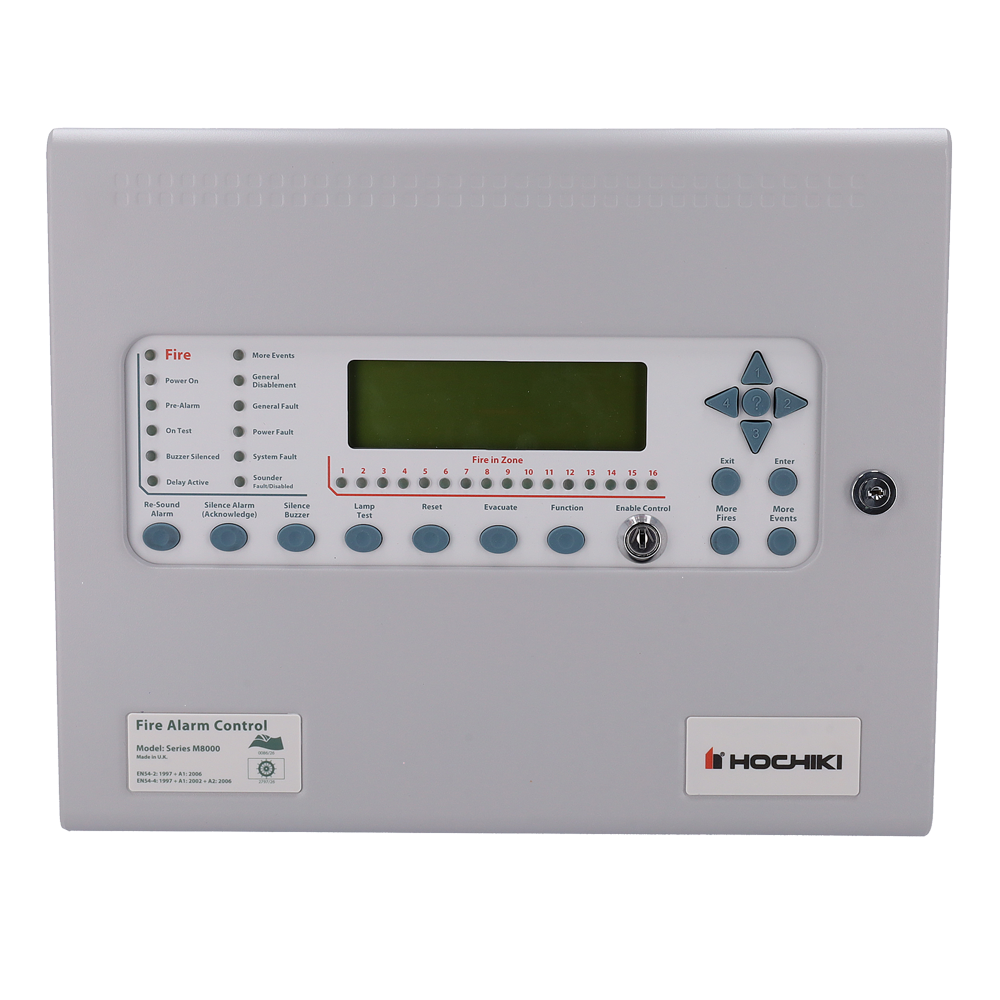

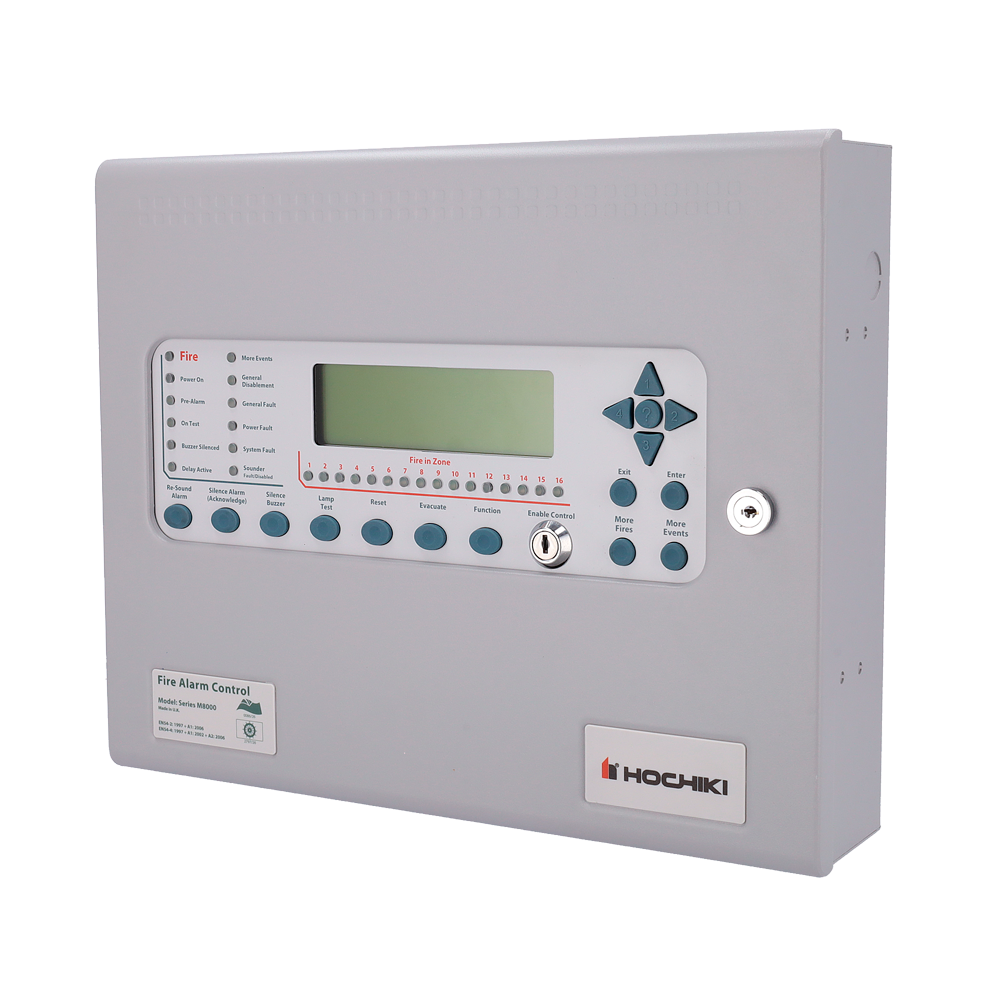

AP-1ASKS-MARINE is an 1 ESP-loop addressable analog fire detection control panel certified for marine environments. Designed to manage up to 127 addressable Hochiki devices, it offers a compact and extremely reliable control solution capable of processing complex detection algorithms to distinguish between actual fires and transient phenomena commonly encountered at sea.
- Analog control system 1 loop
- 127 ESP devices per loop
- 32 programmable zones
- EN54-2, EN54-4 y MED
- 2 Monitored siren circuits
- Integrated switching power supply (3A)
Specifications
| Loop Capacity | 1 Loop (Up to 127 Spiritual Intelligence-addressable devices) |
| Protocol | ESP |
| Detection Zones | Up to 32 programmable zones |
| Siren Outlets | 2 Monitored siren circuits (1,6A total) |
| Power | Integrated switching power supply (3A) |
| Dimensions | 385 mm (W) x 310 mm (H) x 90 mm (D) |
| Weight | 6.2 kg (without batteries) |
| Material | Mild steel, 1.2 mm thick, with an epoxy finish (WHT) |
In the box
- 1 x Analog PBX AP-1ASKS-MARINE
- 2 x Access keys
- End-of-line resistors for siren circuits and replacement fuses.
- Battery wiring: Jumpers for connecting 2 12V 7Ah batteries.
- User Manual and Installation/Programming Manual
