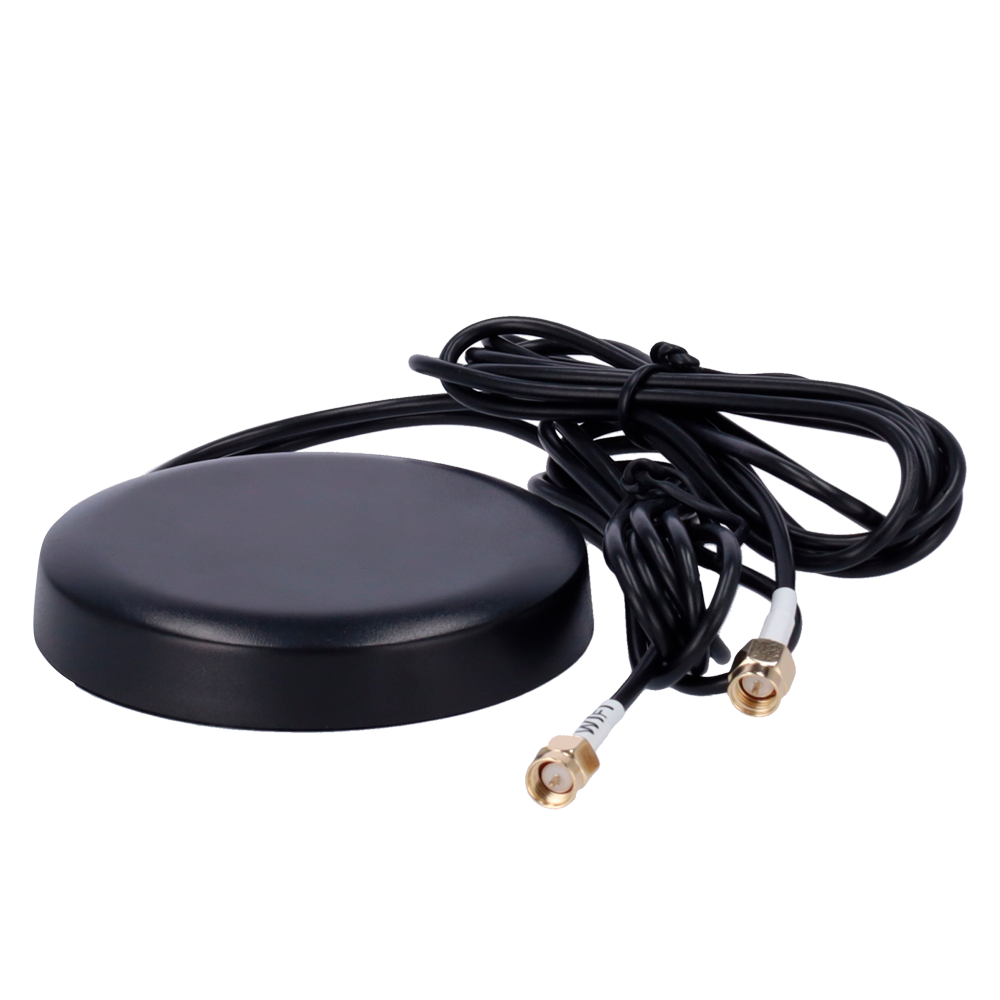

ANT-4G24G-04D-O-O-ST-150
Ga direct naar de productinformatie
ANT-4G24G-04D-O-O-ST-150
- Antenna 4G and Wi-Fi
- Frequency 4G 700-960/1710-2700MHz
- SMA Male Connector

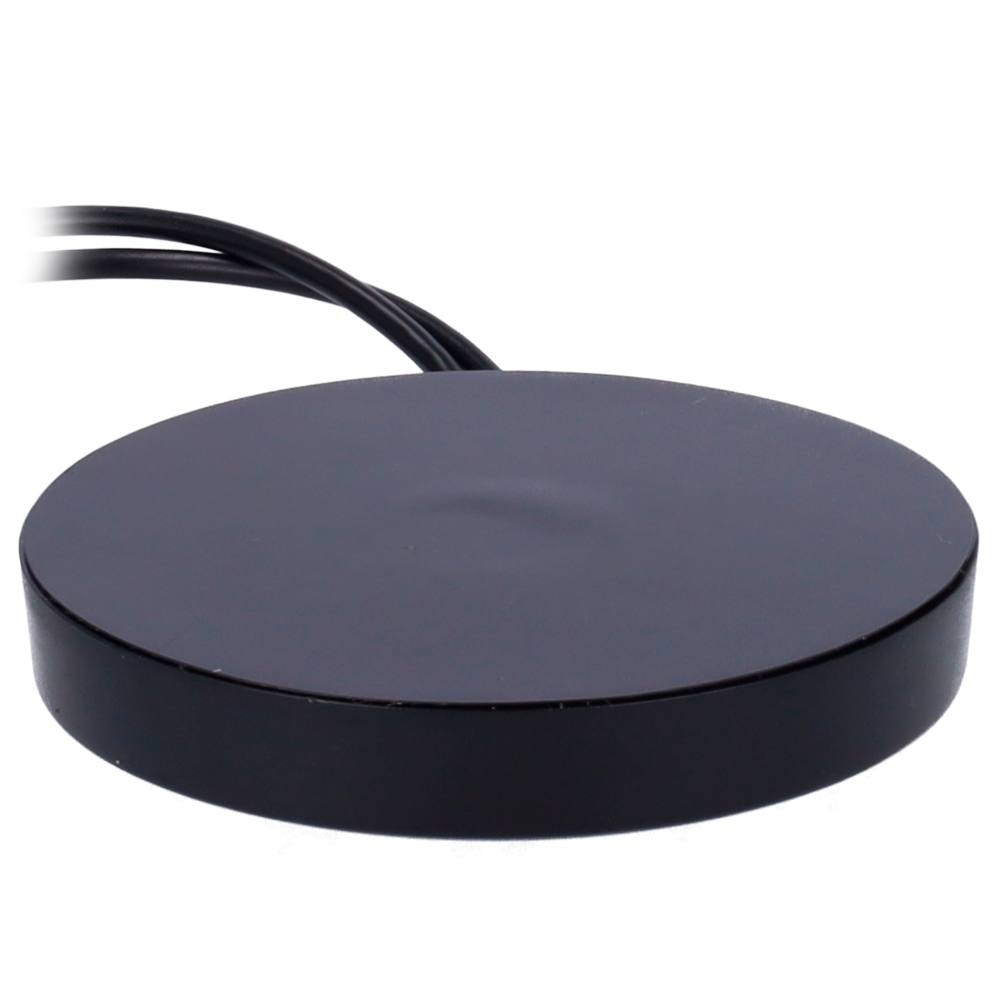

- Vehicle roof mounting
- Gain 4G 5dBi / Wi-Fi 4dBi

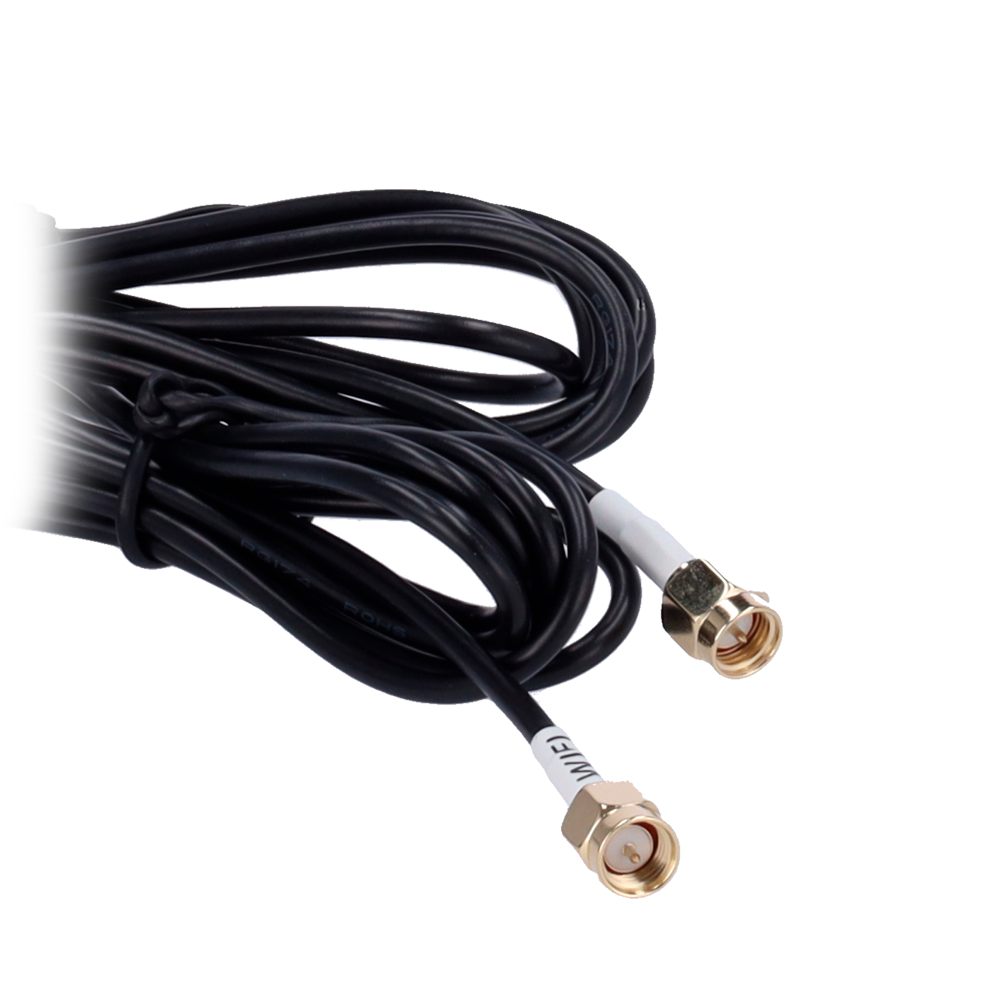

- RG174 1,5 meters long Cable
- Antenna 4G with GPS and Wi-Fi
- Vehicle roof mounting
- Frequency 4G 700-960/1710-2700MHz
- Wi-Fi frequency 2400-2500MHz
- Wi-Fi antenna gain 4dBi
- Antenna gain 4G 5dBi
- SMA Male Connector
- RG174 1,5 meters long Cable
- Impedance 50 OHM
- Temperature -20ºC to 70ºC
Specifications
| Antenna characteristics 4G | Gain: 5dBi V.S.W.R: < 2.7 |
| W-Fi Antenna Features | Gain: 4dBi V.S.W.R: < 1,92 |
| Operating temperature | -20ºC to 70ºC |
| Output Impedance | 50 OHM |
| Connectors | 2x SMA Male |
| Mounting | Vehicle roof |
In the box
- Antenna
