AM-IR1-S
- Analog PIR detector
- Pet proof
- Wired
- Detection Range 12 m
- For interior use
- AMC
- Analog volumetric PIR detector
- Motion detection indicator
- Detection: Range 12m / H: 100º
- End-of-line (EOL) resistors selectable by jumpers
- Tamper-resistant opening
- Pet Proof ≤ 15Kg
- Power 13.8VDC
- Compatible with Ajax Transmitter (Transmitter and MultiTransmitter)
- Interior use
- White colour
Specifications
| Brand | AMC |
| Technology | PIR |
| Security grade | Not available |

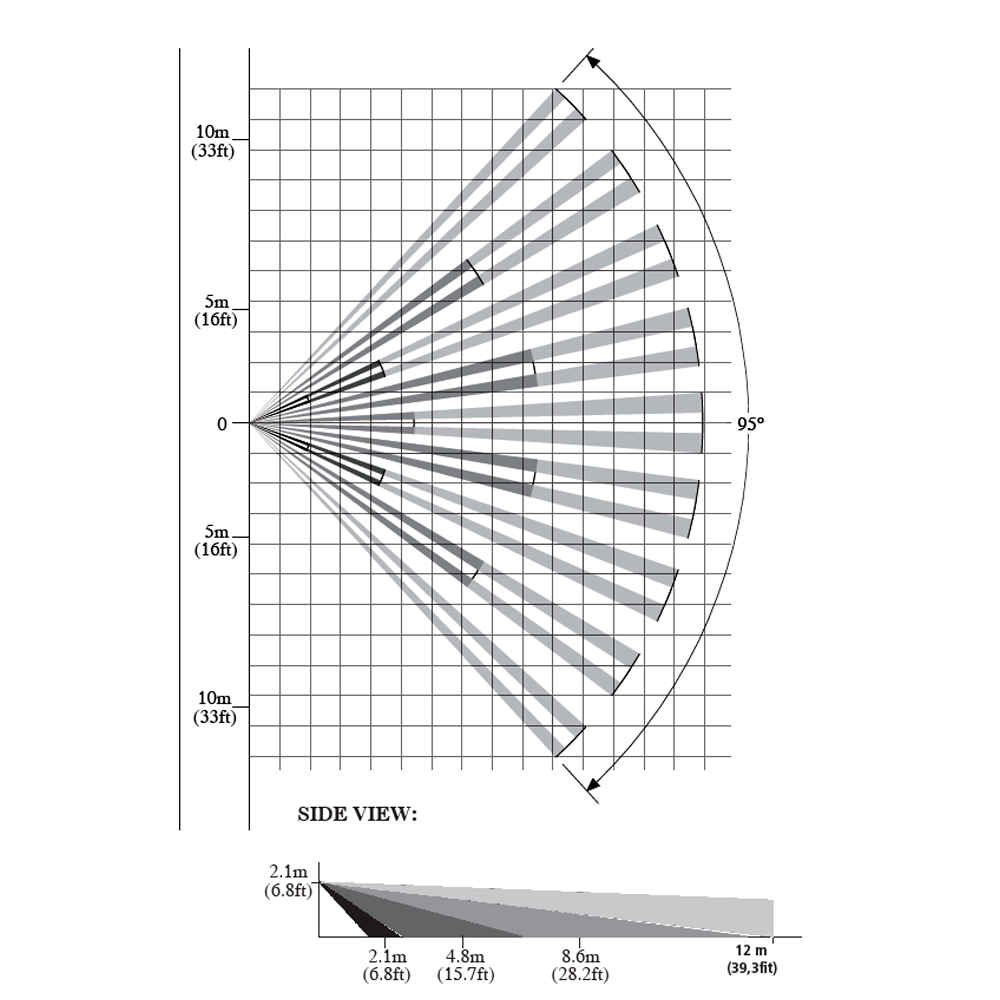

| Detection range | 12 m / 100º H |
| Pet immunity | ≤15 Kg |
| Installation height | From 1.8 to 2.2 m |
| Anti-masking | Not available |
| Detection test | Available PIR (flashing green led) |
| Self-test | Not available |
| DIP Switch configuration | Not available |
| LEDs indication | Alarm (blue) |

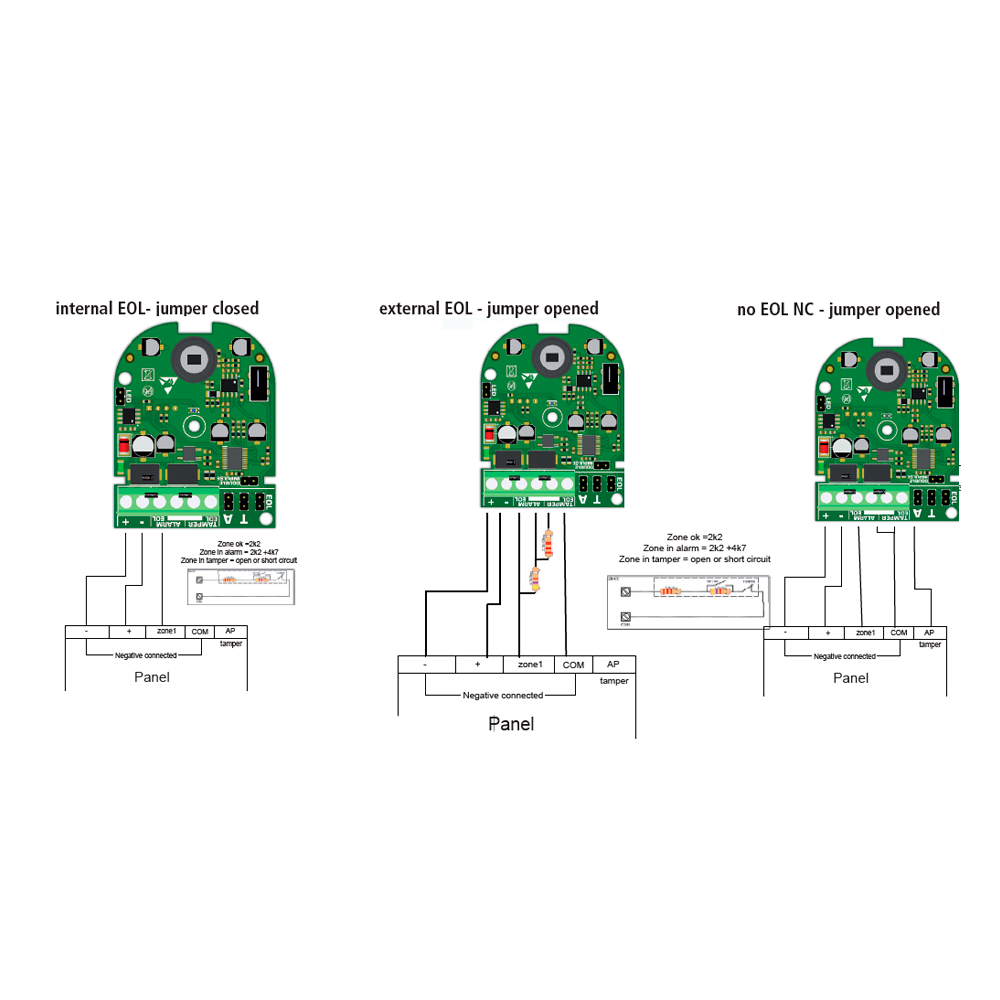

| Connection mode | End-of-line resistors: 2EOL |
| End-of-line resistor values | With the 3 jumpers: Rest 2k2 Alarm 2k2+4k7 Tamper open circuit |
| Installation | Surface mounting or wall mounting AM-SN1 |
| Power | 9~15 VDC / 19 mA |
| Temp. operation | -10º C ~ 40º C |
| Dimensions (without bracket) | 114 (H) x 63 (W) x 40 (D) mm |
| Colour | White |
In the box
- Indoor PIR Detector
- Jumpers
