AM-DT2-AM
- PIR detector with double technology
- Certificate Grade 3
- Anti-pet and anti-masking
- Wired
- Detection Range 15 m
- For interior use
- AMC
- PIR volumetric detector, pet immune, double technology
- Certificate Grade 3
- Double technology: 1 IR, 1 microwaves
- Anti-masking sensor
- Motion detection indicator
- Detection: 7 m Range / 15 m / H: 100º
- End-of-line (EOL) resistors selectable by jumpers
- Pulse, range and LED adjustable by switch
- AND (dual technology) / OR alarm function (only with microwave)
- Tamper-resistant opening
- Pet Proof ≤ 15Kg
- Power 13.8VDC
- Compatible with Ajax Transmitter (Transmitter and MultiTransmitter)
- Interior use
- White colour
Specifications
| Brand | AMC |
| Technology | PIR and microwave sensor |
| Detection operation | AND (IR and microwaves) / OR (IR or microwaves) |
| Security grade | Grade 3 |
| Detection range | 15 m / 100º H |
| Pet immunity | ≤15 Kg |
| Installation height | From 1.8 to 2.2 m |
| Anti-masking | Available |
| Microwave sensor | 9.3 - 9.9 - 10.5 GHz |
| Microwave deactivation | Available. BS' terminal to connect to alarm panel output and disable microwave with disarming |
| Detection test | Available PIR (flashing green led) Microwave (blinking yellow led) |
| Self-test | Available |

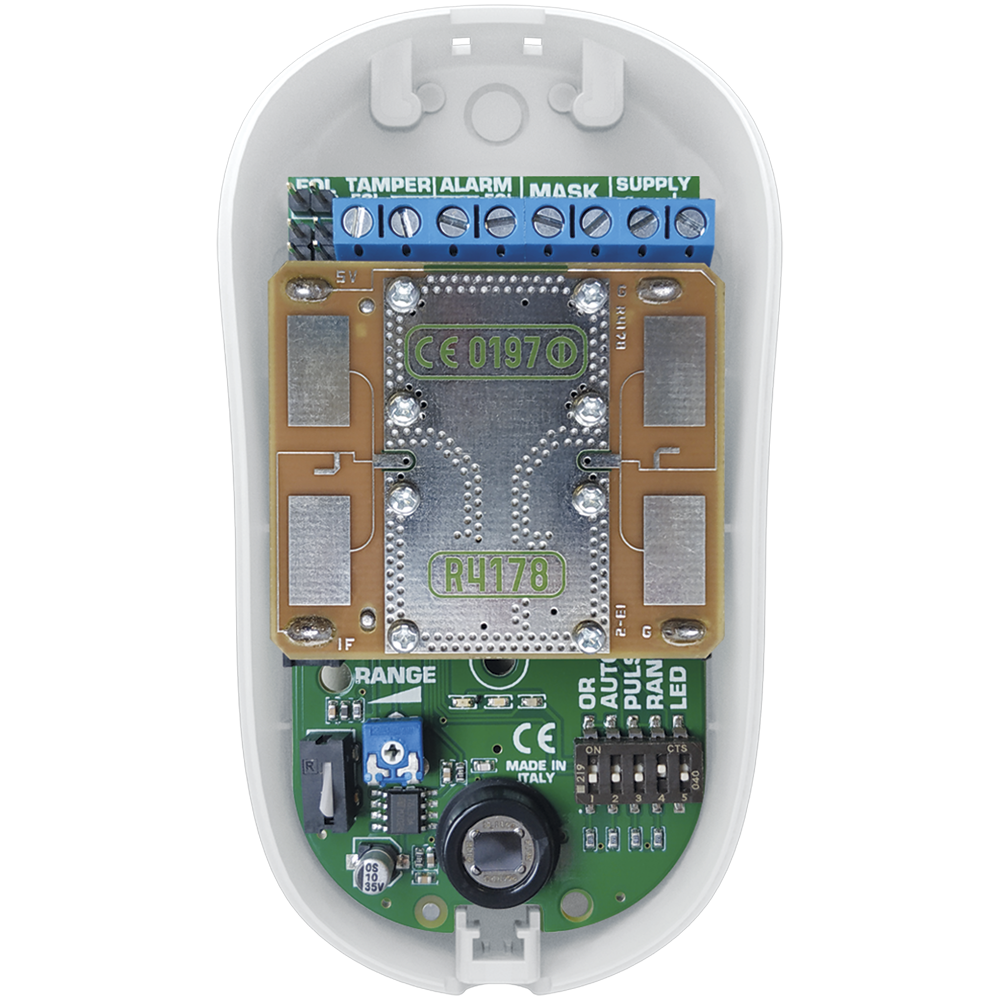

| DIP Switch configuration | 1 - LED (On/Off) 2 - Range: Off=15 m / On=7 m 3 - Sensitivity: Off=1 pulse / On=2 pulses 4 y 5 - OFF-OFF = AND / ON-OFF=OR / ON-ON=AUTO OR |
| Microwave sensitivity | Adjustable (potentiometer) |
| LEDs indication | Alarm (blue), PIR Alarm (green), Microwave Alarm (yellow) |

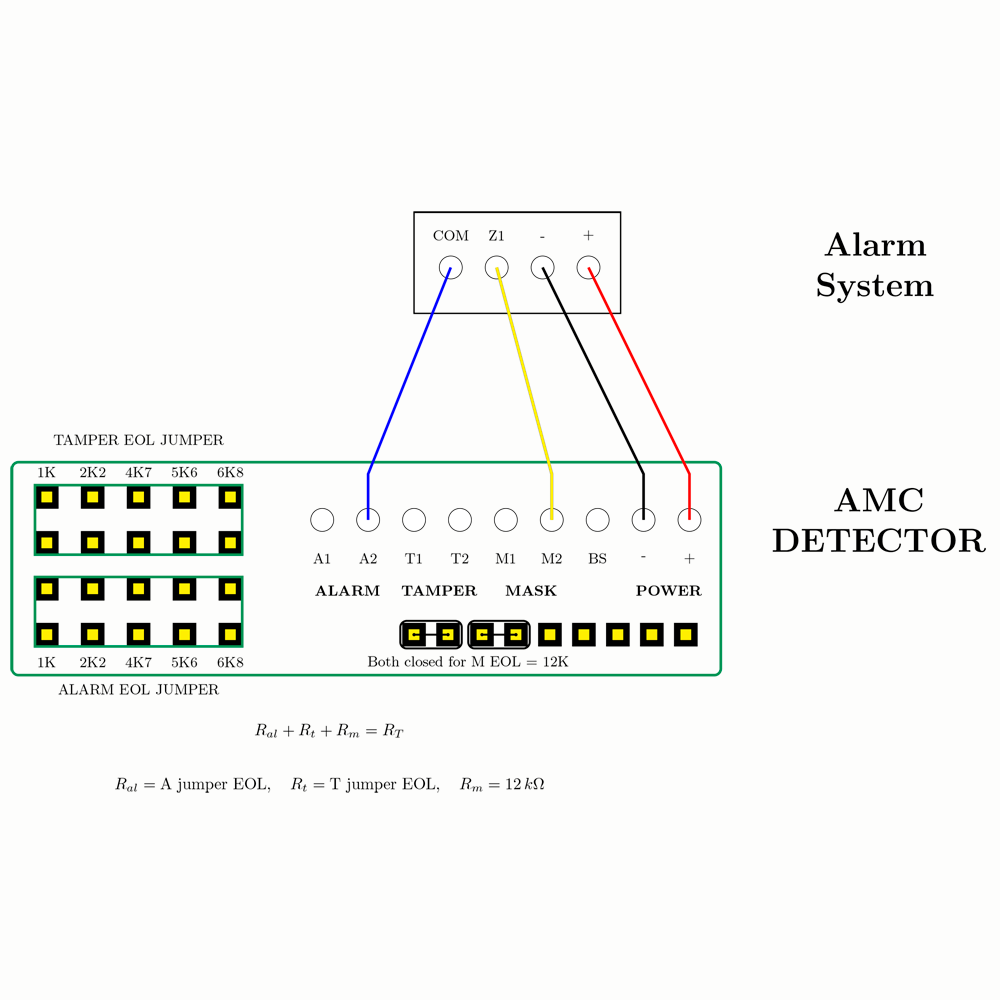

| Connection mode | End-of-line resistors: 2EOL / 3EOL |
| End-of-line resistor values | 1k, 2k2, 4k7, 5k6, 6k8 (tamper and alarm) |
| Installation | Surface mounting or wall mounting AM-SN1 |
| Power | 9~15 VDC / 32 mA |
| Temp. operation | -10º C ~ 40º C |
| Dimensions (without bracket) | 114 (H) x 63 (W) x 40 (D) mm |
| Colour | White |
In the box
- Indoor PIR Detector
- Jumpers
