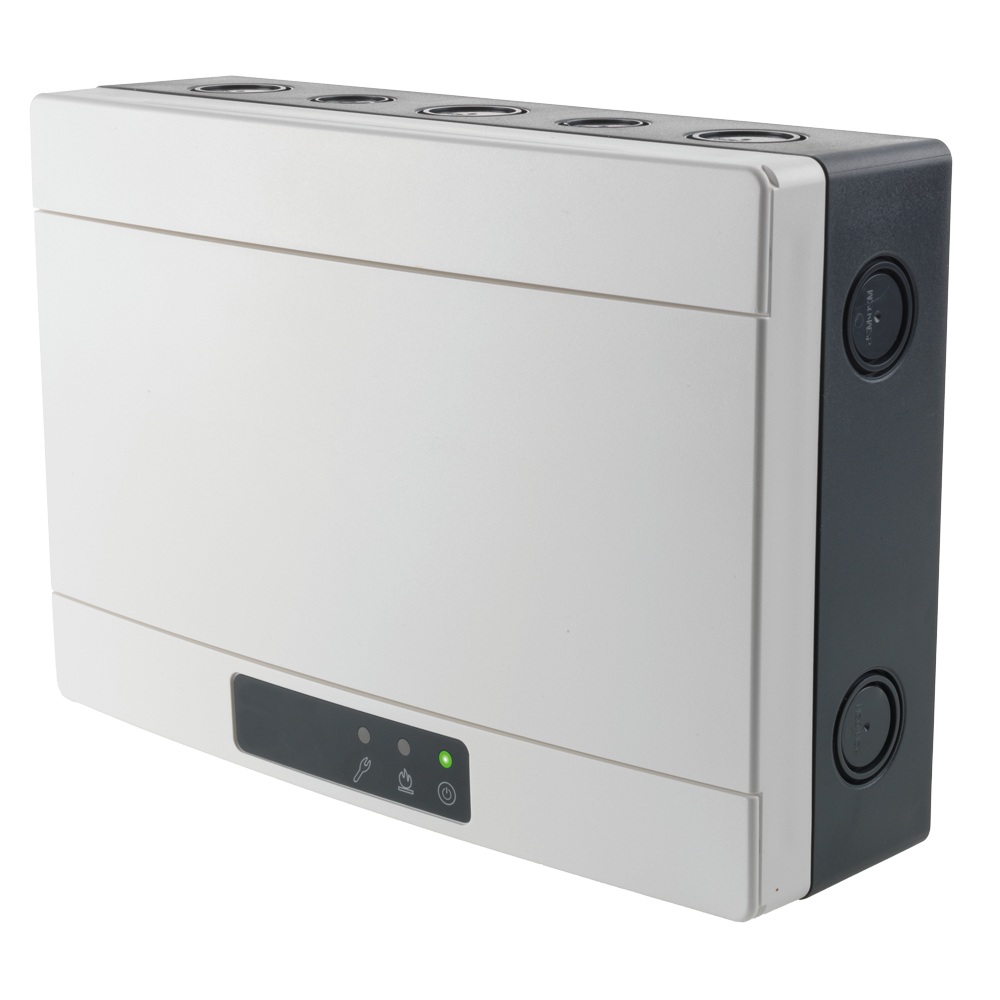

ADV-AXIS-TME
ADV-AXIS-TME
- Wireless Expander Module
- Compatible with TAURUS wireless range
- Allows network expansion with up to 15 expanders
- Transmission distance up to 200m
- Advanced
- Wireless amplifier
- Up to 15 expanders used with each ADV-AXIS-TMT
- Easy installation, externally motorized
- Bidirectional communications with all devices
Taurus uses NetworkOptimiser technology, with more than 60 communication channels to avoid interference and channel collisions, regardless of the extent of the fire network or the scale of the building.
Each device features SafeSwitch dual redundant channel technology, so that if one channel fails, the other automatically takes over, ensuring unprecedented levels of reliability and performance.
The key to any successful wireless fire system is design and specification, which is why TauREX software has been developed, featuring an easy-to-use graphical user interface and innovative new features, such as EasyScan and ConfigWizard, to help specify the optimal system for each installation in a simple and intuitive way.

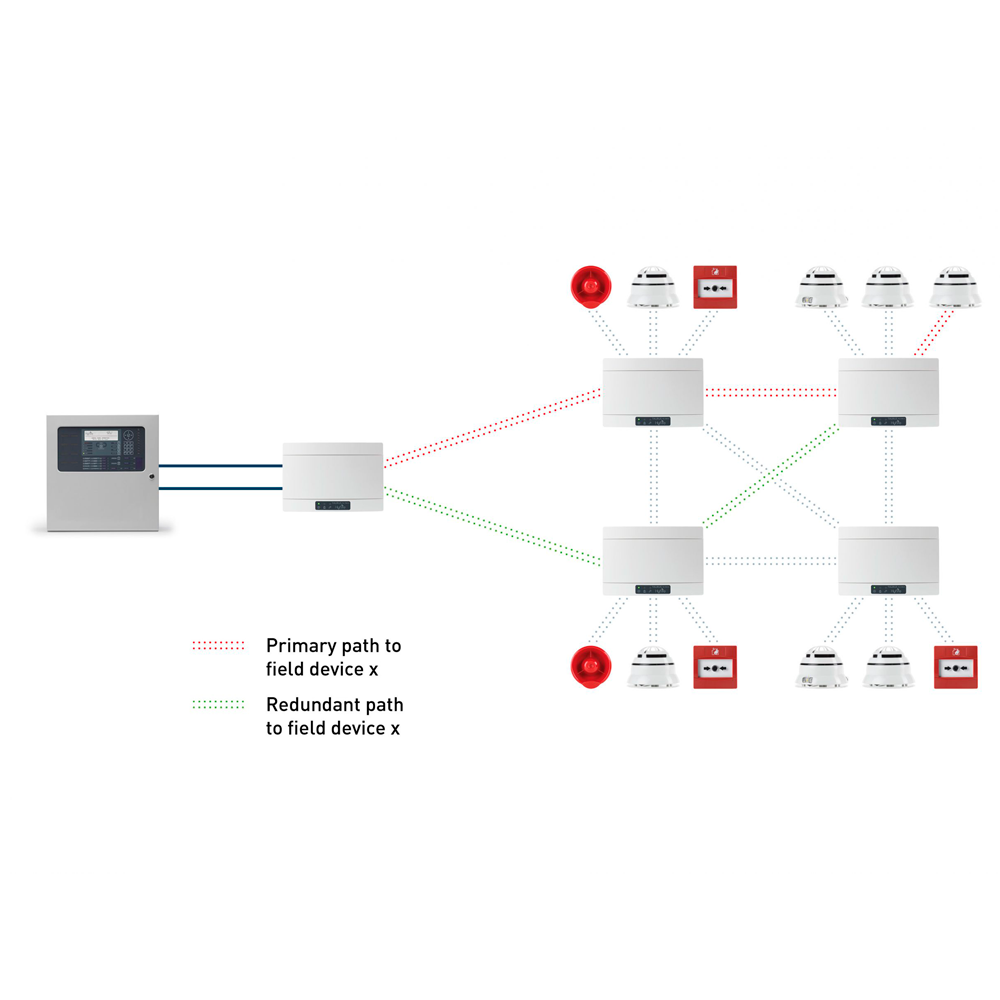

It also offers unprecedented system reliability and performance using SafePath Mesh Expander technology. If any chain expander fails, the transmission path uses an alternative path, ensuring continuity of communication.
Specifications
| Brand | Advanced |
| Communication distance | 200m in open field |
| Operating frequency | 868MHz |
| Type of modulation | FSK |
| Frequency channels | 66 |
| Radiation power | 14dBm (25mW) |
| Maximum number of devices | 32 |
| Maximum number of expanders | Total: 15 Cascade: 8 |
| Power | External power supply: 9~30VDC, 36mA max. |
| Operating temperature range | -10ºC ~ +55ºC |
| Humidity (non condensing) | 90% RH |
| Dimensions | 160 x 235 x 70 mm (HxWxD) |
| Weight | 700g |
| Degree of protection | Technical IP protection: IP65 IP protection EN54: IP30 |
| Programming software | TauREX |
In the box
- Wireless expander
