ADV-AXIS-TCP
Ga direct naar de productinformatie
ADV-AXIS-TCP

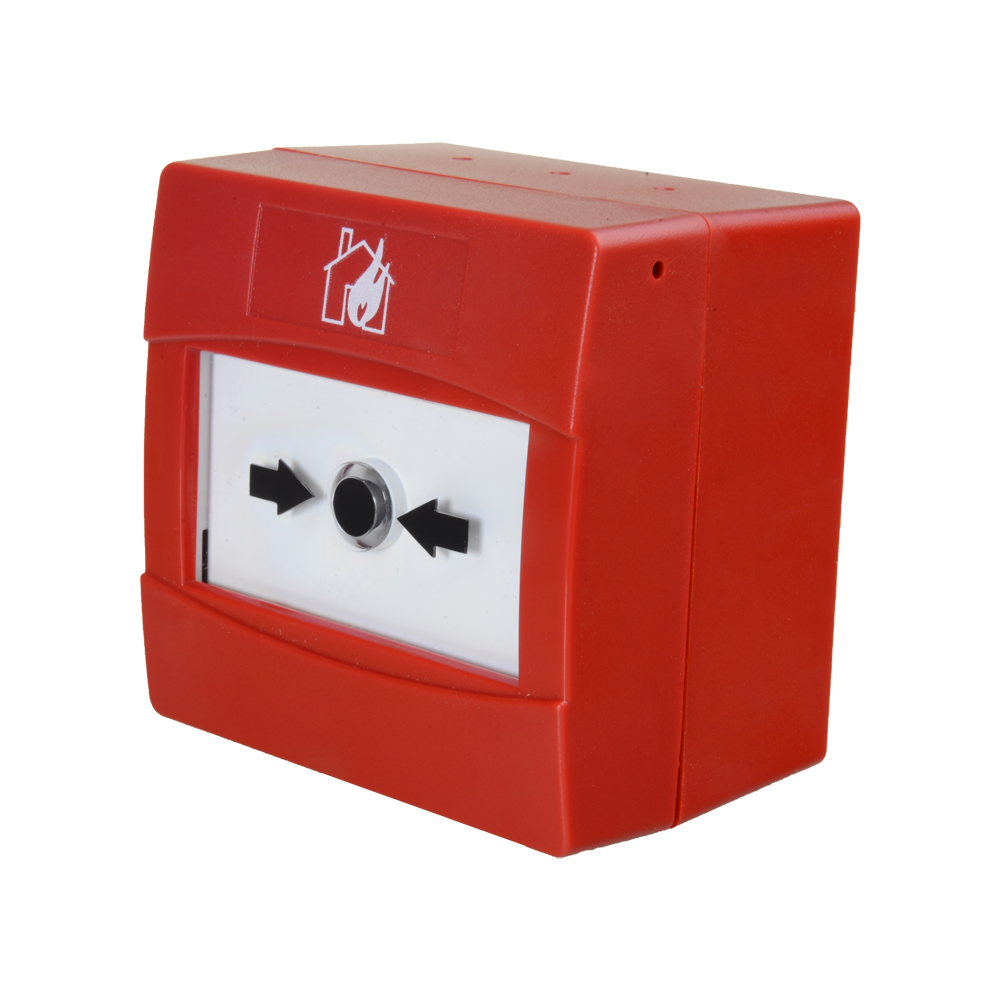

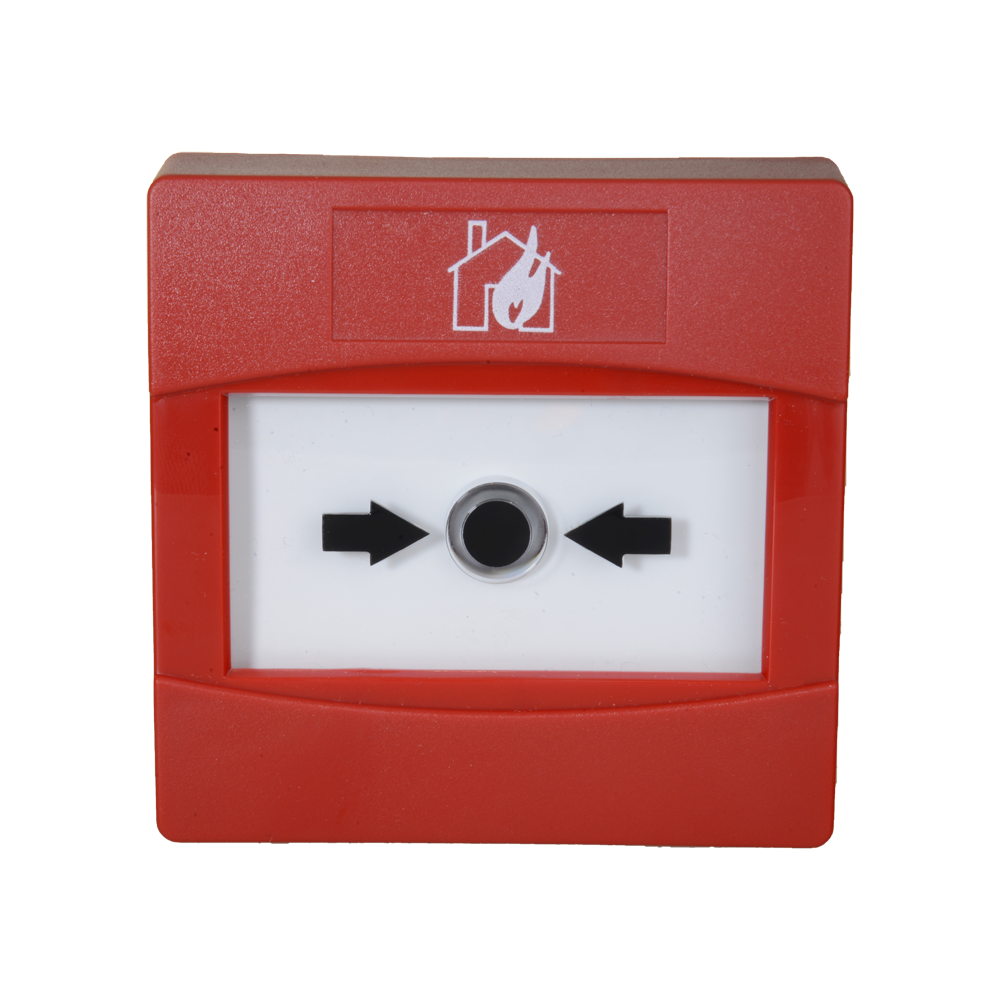

- Advanced resettable analogue pushbutton
- Two-way wireless communication TAURUS
- Up to 1000m communication
- Bicolour (red green) LED indicator
- Same key for opening and rearming
- Certificate EN54-11 and EN54-25
- Advanced
- Resettable push button Intrinsically safe
- Bidirectional wireless communication via TAURUS protocol
- Long communication range (≅1 km outdoor)
- Operating element, visual pulse indicator
- 10 years of battery life
- Each device is powered by lithium batteries
- Primary and secondary batteries are constantly monitored
- Certificate according to EN54-11 and EN54-25
Specifications
| Brand | Advanced |
| Protocol | TAURUS |
| Communication distance | 1000m in open field |
| Operating frequency | 868.15MHz - 869.85MHz |
| Type of modulation | FSK |
| Frequency channels | 66 |
| Radiation power | 14 dBm (25 mW) |
| Transmission frequency | 60s default |
| Power | Primary Battery: CR123A 5 years of life Secondary Battery: CR123A 10 years of life |
| Operating temperature range | -30ºC ~ +55ºC |
| Humidity (non condensing) | 95% RH |
| Dimensions | 88 x 88 x 59 mm (H x W x D) |
| IP protection | IP21 |
| Certification | EN54-11, EN54-25 |
In the box
- Wireless analog pushbutton
