ADV-AXIS-RHT

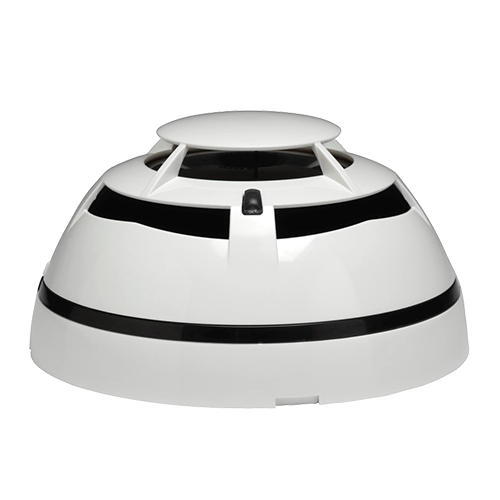

- Advanced analog thermovelocimetric detector
- Two-way wireless communication
- Up to 200m communication
- LED bicolor (red and green) with vision 360º
- Compatible with Argus Vega protocol
- Includes base
- Certificates EN54-5 and EN54-25
- Advanced
- Radio thermovelocimetric detector
- Fully smart device
- Lithium batteries
- Continuously monitored primary and secondary batteries
- Bidirectional communications with interface
- Certificate EN54-5 and EN54-25
- Automatic adjustment of frequency and power management
Specifications
| Brand | Advanced |
| Communication distance | 200m in open field |
| Operating frequency | 868.15MHz - 869.85MHz |
| Type of modulation | FSK |
| Frequency channels | 7 |
| Radiation power | 5dBm (3mW) |
| Transmission frequency | 60s default |
| Power | Primary Battery: CR123A Secondary Battery: CR123A 8 total life years |
| Operating temperature range | -10ºC ~ +55ºC |
| Humidity (non condensing) | 95% RH |
| Dimensions | 70 x 100 mm (H x D) / 130g |
| IP protection | IP40 |
| Certification | EN54-5 and EN 54-25 |
In the box
- Wireless heat detector
