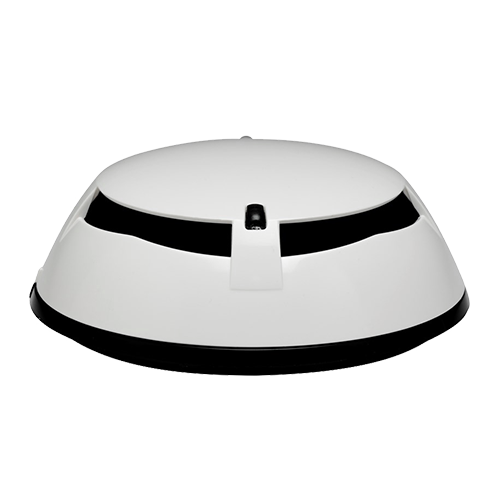

ADV-AXIS-OPX
- Advanced Optical Analog Detector
- Built-in loop isolator
- AXIS Series
- Compatible with Argus Vega protocol
- Base not included
- Certificates EN54-7 and EN54-17
- Advanced
- Analog optical smoke detector
- AXIS Series
- Multiple sensitivity settings
- Built-in loop isolator
- Bi-color LED with 360° vision
- High level of false alarms protection
- Addressing with programmer or auto-addressed from the control panel
- Self test magnet option
- Base not included
Specifications
| Brand | Advanced |
| Series | AXIS |
| Voltage DC | Nominal Relay Switching current 24V (18~40V) |
| Consumption standby mode (Max.) | 85μA |
| Consumption alarm (Max.) | 20mA@24VDC |
| Alarm thresholds | Up to 4 selectable alarm thresholds |
| Operating temperature range | -10ºC ~ +55ºC |
| Humidity (non condensing) | 95% RH |
| Dimensions | 49 x 100 mm (H x D) / 130g |
| IP protection | IP40 |
| Certification | EN54-7 and EN 54-17 |
In the box
- Optical detector
