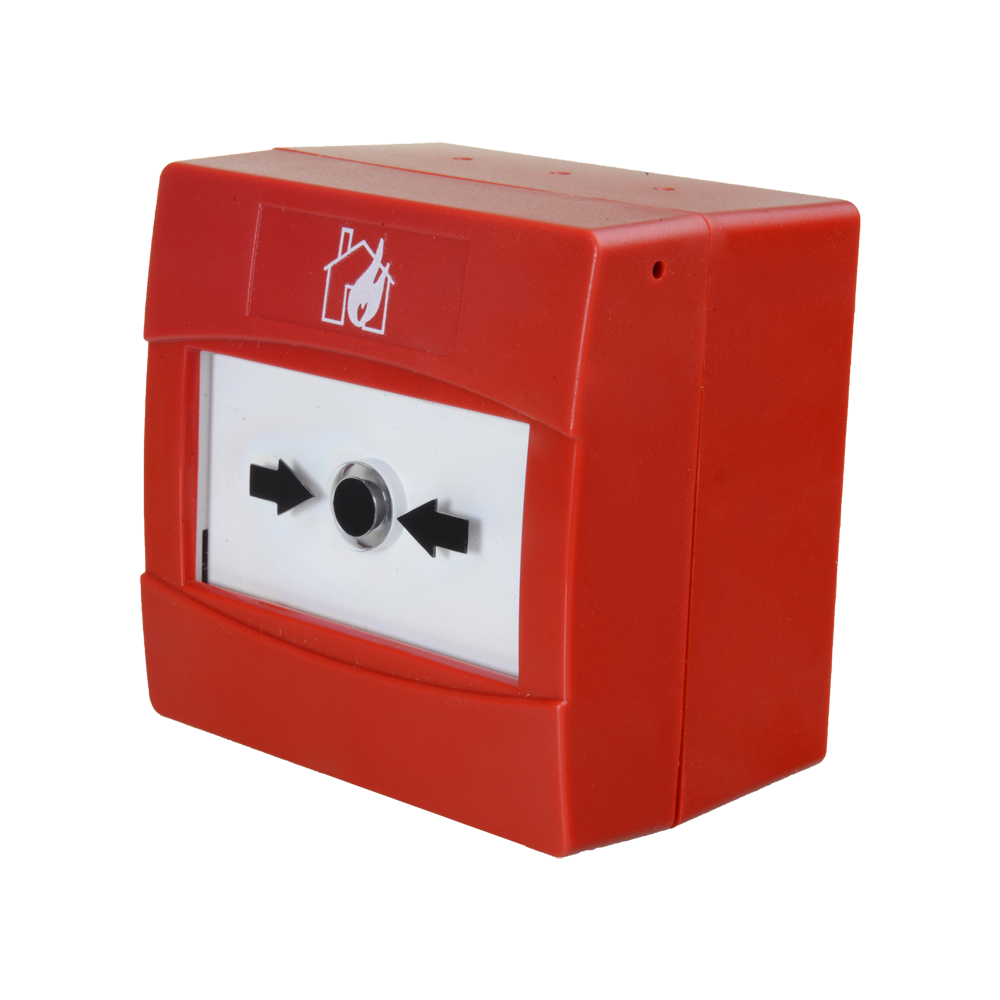

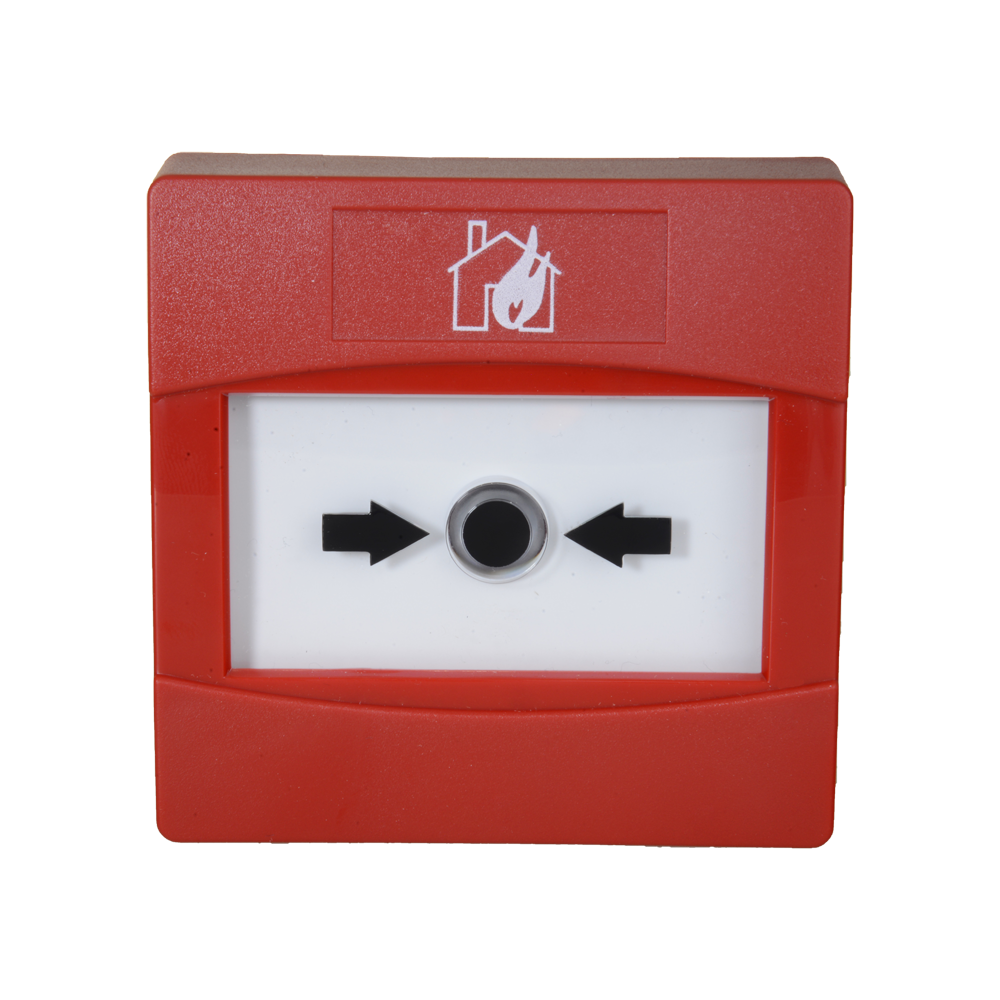

ADV-AXIS-CP
- Advanced resettable analogue pushbutton
- Built-in isolator
- Bicolour (red green) LED indicator
- Same key for opening and rearming
- Does not include a cover
- Certificate EN54-11
- Advanced
- Resettable analog pushbutton
- Indicador luminoso y visual de activacion - Misma llave de apertura y rearme
- Aislador incorporado - Certificado en EN54-11
- Ability to address automatically (via control panel) or manually via a portable programmer
- Bi-color LED
Specifications
| Brand | Advanced |
| Voltage DC | Nominal Relay Switching current 24V (15~40V) |
| Average consumption | 70μA |
| LED Current Consumption | 6mA@24VDC |
| Operating temperature range | -30ºC ~ +70ºC |
| Humidity (non condensing) | 95% RH |
| Dimensions | 85 x 85 x 54 mm (H x W x D) |
| IP protection | IP21 |
| Certification | EN 54-11 |
In the box
- Analog pushbutton
