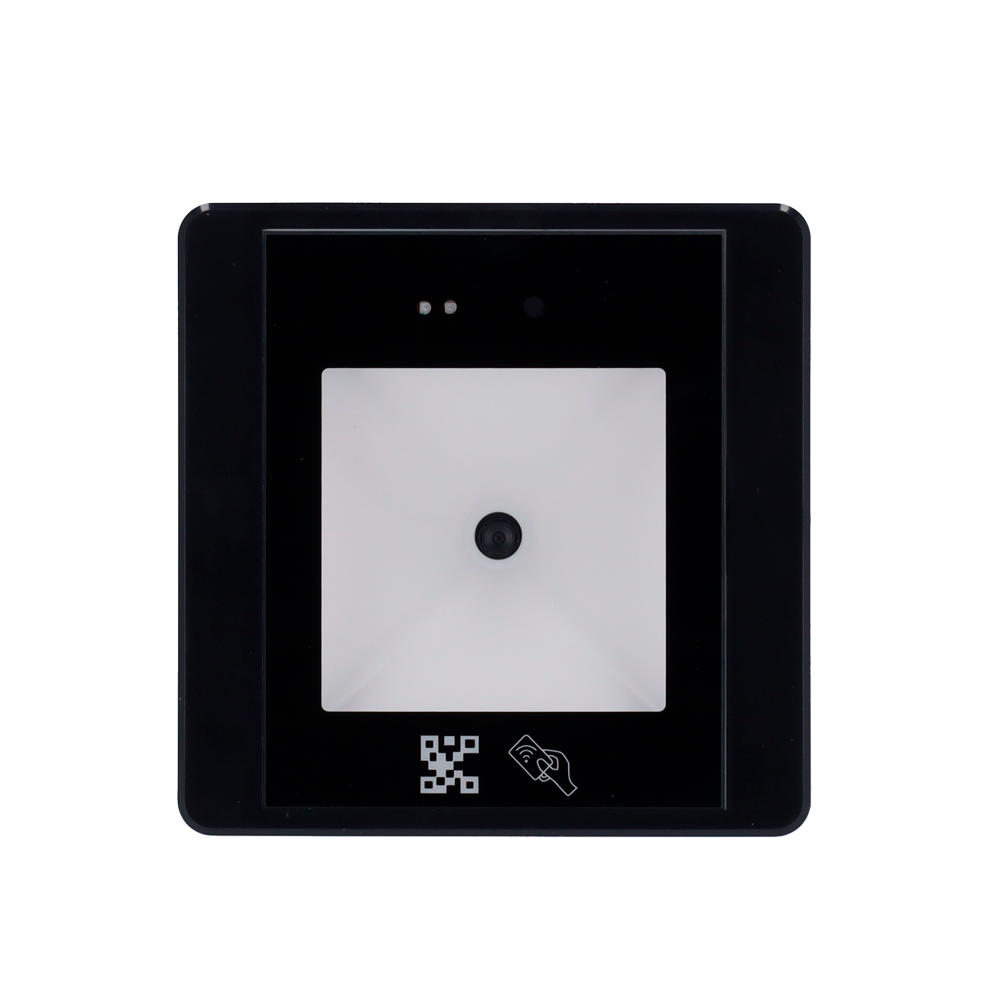

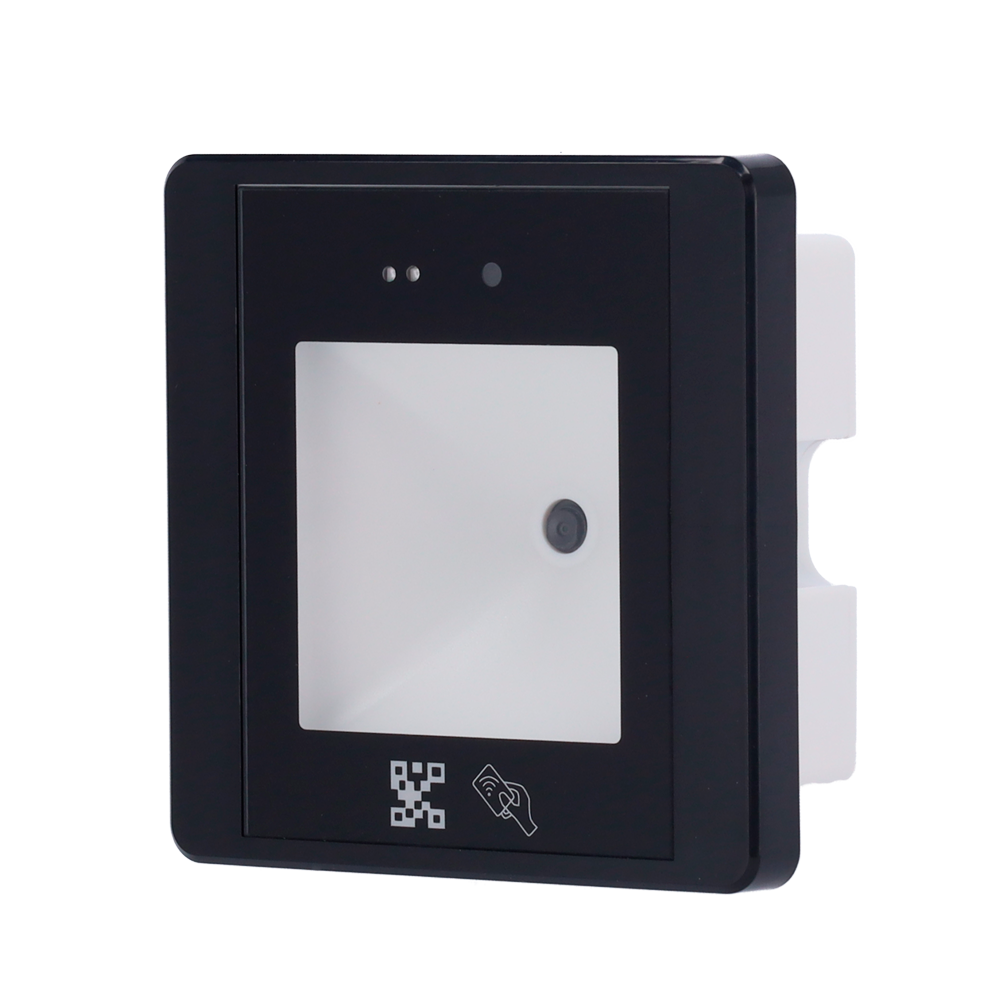

ACR205-QR-MF
Ga direct naar de productinformatie
ACR205-QR-MF
- Access reader
- Access by MF Card and QR
- LED and acoustic indicator
- Wiegand 26/34
- Compatible with third-party equipment
- Suitable for indoor use : Flush mounting
An access reader is used to identify users who want to access a system protected by an access controller. Transmits the credential information, with the controller deciding how to proceed.
This reader allows identification through cards or key fobs with MF technology of 13.56 MHz and QR code reading.
The connection to the controllers is made via Wiegand. This protocol allows a secure connection to the installation.
- Access reader for controller
- Access by MF Card and QR
- LED indicator
- Wiegand 26/34 and USB
- Compatible with Wiegand controllers
Specifications
| Model | ACR205-QR-EM |
| Activation sensor | Infrared auto-activation |
| Identification modes | MF 13.36MHz and QR card |
| Read time | < 1 sec |
| Card reading distance | < 6 cm |
| QR reading distance | < 20 cm |

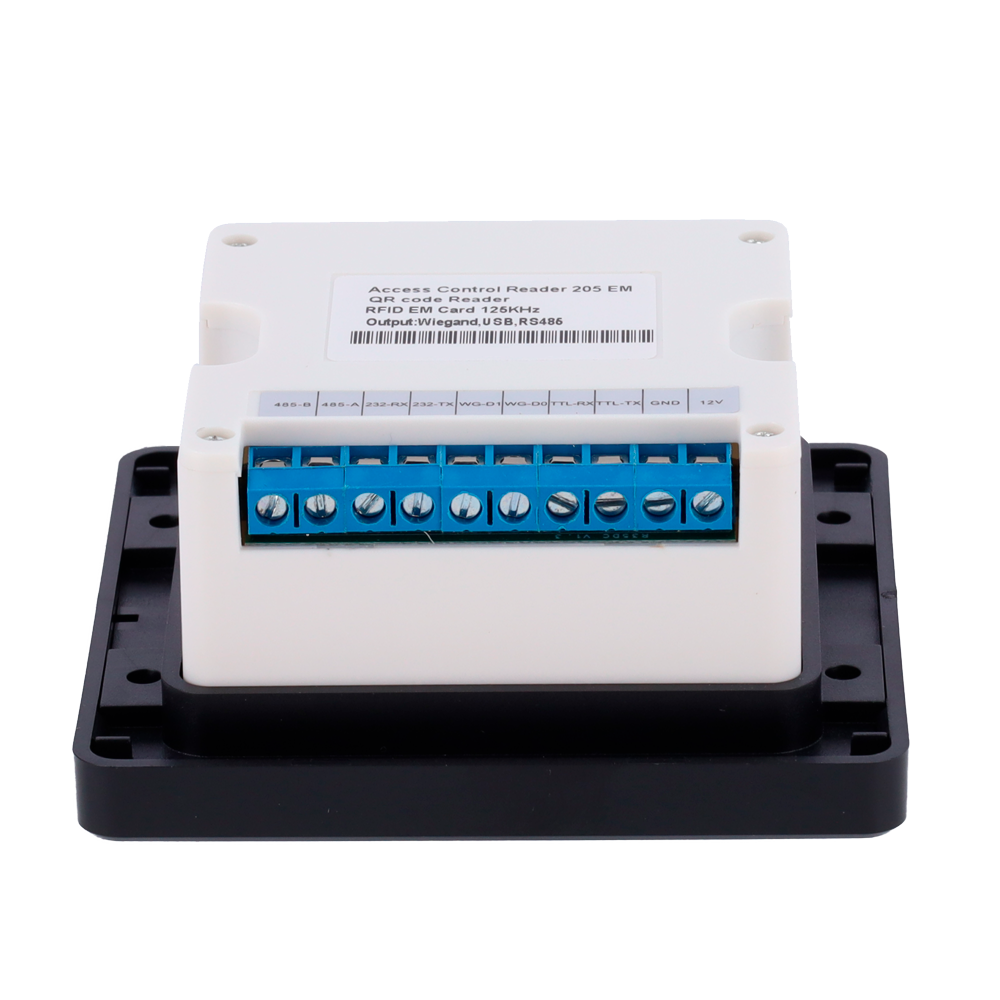

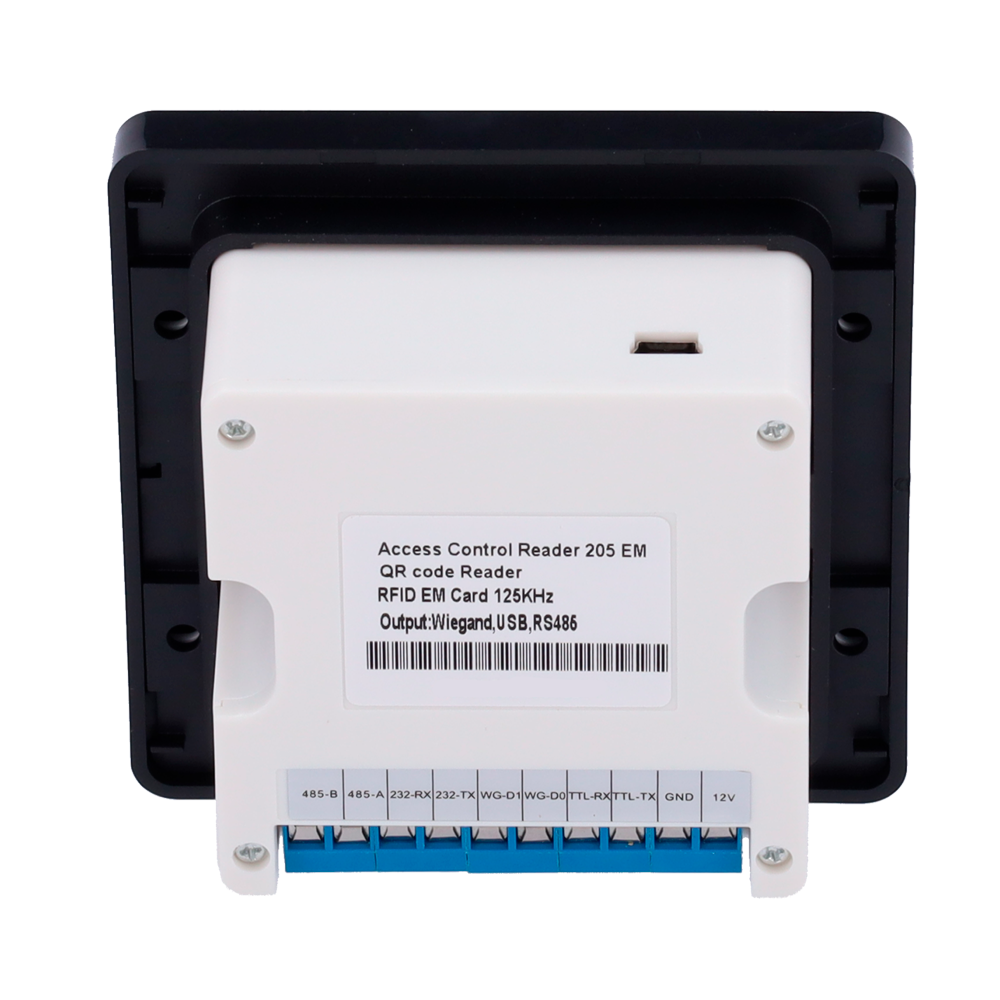

| Outputs | Wiegand 26/34, buzzer for status indication, tamper USB for configuration |
| Compatibility | Third-party access control equipment with Wiegand connection |
| Power | DC 12 V / 800 mA max. |
| Degree of protection | Interior |
| Temp. operation | -20 ºC ~ +70 ºC |
| Installation | Flush box mounting (not included) |
| Dimensions | 86 (W) x 86 (H) x 42 (D) mm |
| Weight | 150 g |
In the box
- Card reader and QR
- Mounting material
- USB Cable
