ABO-20F
Ga direct naar de productinformatie
ABO-20F

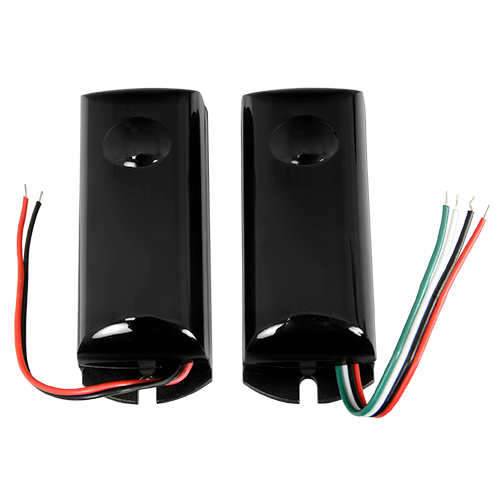

- Infrared barrier detector
- Wired | 1 beam
- Max distance. detection 10 / 20 m
- Smaller size and easy installation
- Relay
- Power supply 9~16VDC/VAC
- Single beam infrared barrier for outdoor
- Wired
- Maximum detection transmitter / receiver 20 m (interior) and 10 m (exterior)
- Reduced size
- 4 work frequencies
- Power 9-16 VDC/VAC
Specifications
| Detection range | 20m indoor / 10 m outdoor |
| Number of beams | 1 |
| Detection method | Infrared beam interruption |
| Frequency channels | 4 different channels over DIP Switch |
| Alarm outputs | 1 relay NO/NC (max. 36VDC/VAC, 1A) |
| Adjustment method | Over LED |
| Operating temperature | -25ºC ~ +55ºC |
| Power | 9~16 VDC/VAC, 20 mA max. |
| Dimensions | 69.5 (H) x 26.4 (W) x 22.5 (D) mm |
In the box
- Infrared barrier
- Installation material
- User instructions
