ABK-703A
Ga direct naar de productinformatie
ABK-703A
- Electromechanical surface lock
- Fail Safe (NC) opening mode
- Suitable for surface mounting
- LED status indicator
- Programmable self-closing
- Cylinder included with keys
- Electromechanical Security Lock for surface mounting
- Cylinder with keys included
- NC Normally Closed (Fail Safe)
- Open door signal
- Door sensor
- Applicable in Fire protection systems
- It has status LED
- Mounting on Wood, Metal and Glass Doors
- 12 VDC
Specifications
| Mounting | Surface |
| Opening mode | Fail Safe (NC) |
| Locking delay time | 9 seconds in case of no opening / in case of opening it locks in 1 second by sensor detection |
| Bolt length | 20 mm |
| Door width | 30 - 90 mm |
| Power | DC 12 V / 350/25 mA start/standby |
| Open sensor | Integrated LED indicator, exit indicator. |
| Plate dimensions | 61.25 (D) x 100 (H) x 130 (W) mm |
| Weight | 1.45 Kg |
| Temperature | -20º C ~ +50º C |
| Range | EasyAccess |
| Range | EasyAccess |
In the box

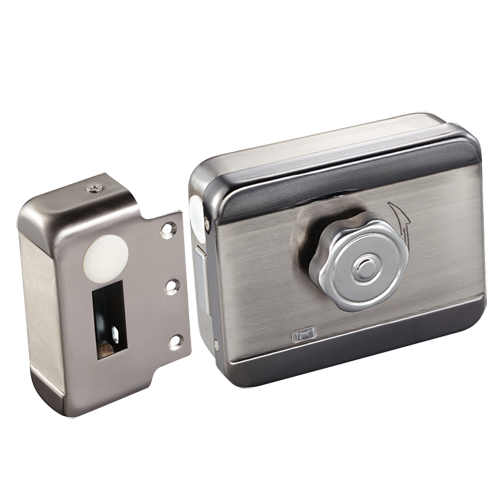

- Lock
- Cylinder with keys
- Electromagnetic strike with sensor
- Installation material
- Installation manual
