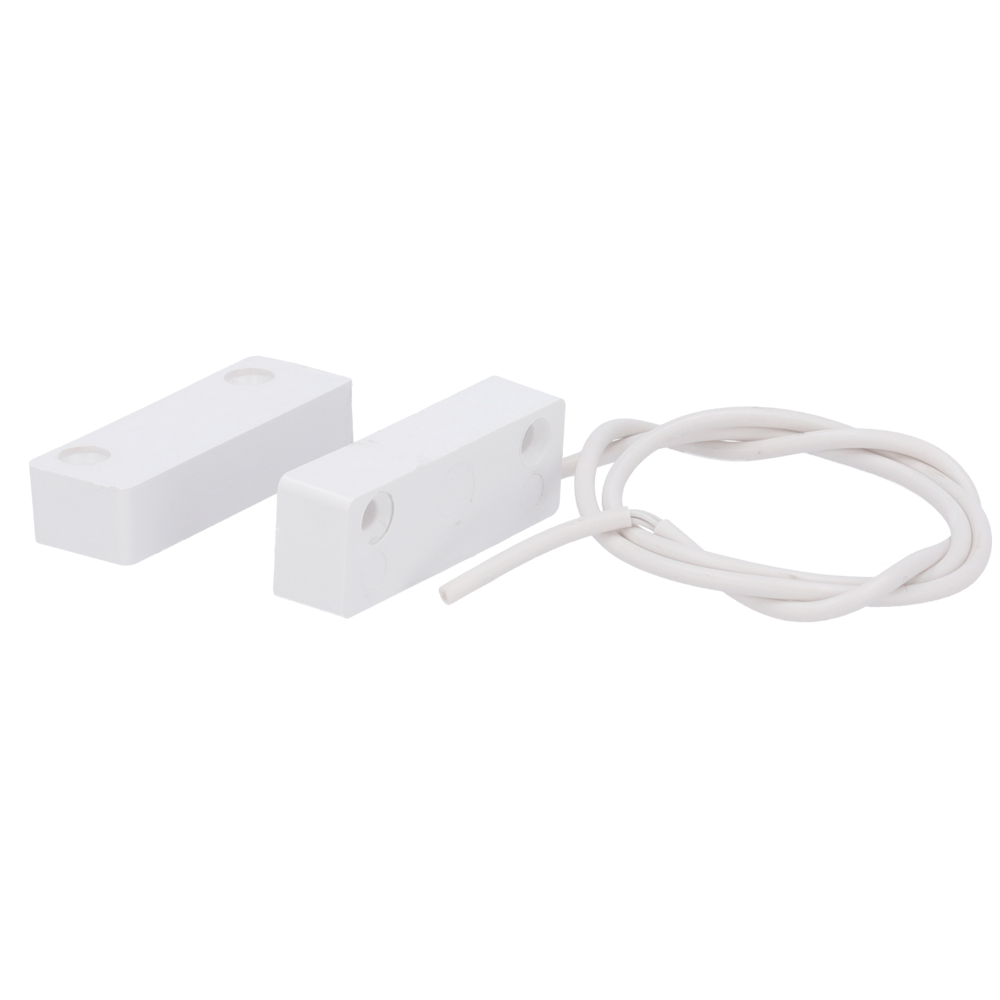

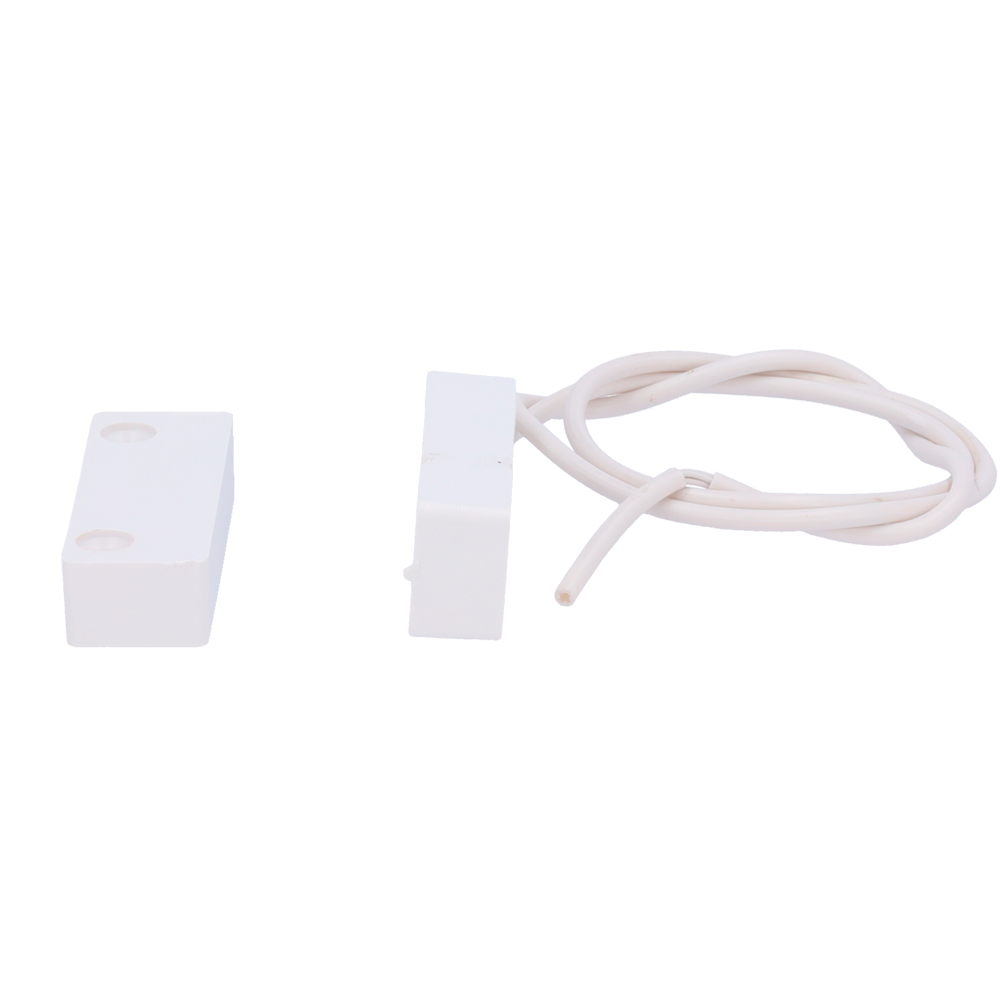

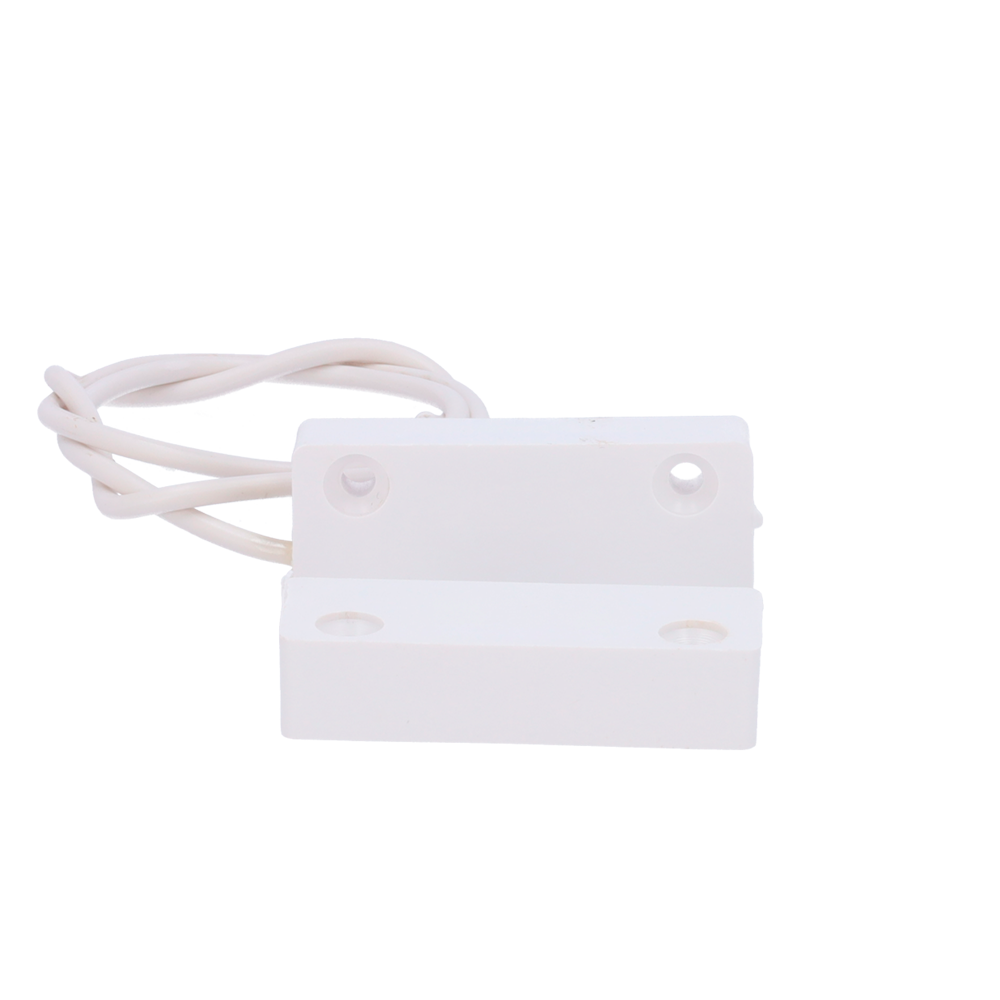

A-C3P
- FDP magnetic contact
- Special for metal surface
- Reed technology High power
- 4 Thread system
- ABS plastic cover
- Suitable for exterior IP65
- Grade 2 approved
- FDP
- Magnetic surface detector
- Reed Technology
- High power
- Suitable for metal installation
- High resistance to mechanical and electrical shocks
- 4 Thread system
- Reduced size
- ABS plastic cover
- Suitable for exterior IP65
- Grade 2 approved
Specifications
| Brand | FDP |
| Security grade | Grade 2 (EN50131-2-6) |
| Environmental class | Class 4 / Suitable for outdoor IP65 |
| Technology | Reed |
| Power | High power |
| Maximum detection distance | In wood 20 mm In ferrous materials 10 mm In Aluminium 20 mm |
| Installation Form | Surface |
| Cable length | 4 60cm(2 alarm / 2 tamper wires) |
| Magnet | Neodymium |
| Electrical parameters | 100 VDC max, 1A |
| Material | ABS plastic |
| Dimensions | 56 x 19 x 13 mm |
In the box
- Magnetic contact
- Installation material
- User instructions
