2XIBS-SH-50-8TD
Ga direct naar de productinformatie
2XIBS-SH-50-8TD
- Solar infrared barrier detector
- Completely wireless | 8 beams
- Signal range up to 700m
- Max distance. 50m of detection
- 1 W LED lighting
- Dual direction detection

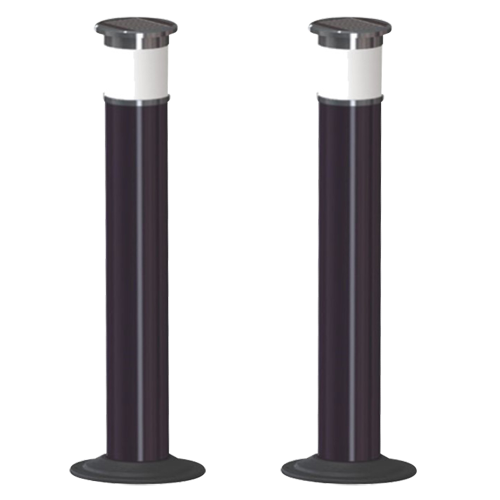

- Kit of 2 pairs of infrared tower (emitter / receiver) of 8 beams for outdoor
- Possibility of extending the installation with the IBS-SH-50-8TD barrier
- Works on solar energy
- Wireless
- Internal antenna range in open space 700m
- Maximum sender / receiver detection 50 m (exterior)
- Dual direction detection
- LED light of 1W to illuminate and camouflage as garden lights
- A receiver is required for installation IB-SH-REC-2, IB-SH-REC-4or IB-SH-REC-8
Specifications
| Detection range | 50m outdoor |
| Number of beams | 8 |
| Work frequency | 433MHz FSK+FHSS |
| Wireless range | Up to 700m |
| Maximum detections per day | ≤200 times |
| Address | Dual (Several barriers can be installed in series IBS-SH-50-8TD) |
| Operating temperature | -30ºC ~ +70ºC |
| Degree of protection | IP65 |
| Internal battery | 3.3V / 6000mAh LiFePO4 |
| Solar panel output | 2W |
| LED light power consumption | <1W |
| Dimensions | 143 (H) x 25 (Ø) cm |
In the box
- 2 infrared barrier towers
- Installation material
- User instructions
